Mini PC DataBase

AOOSTAR GEM12 Max 8745HS 7700XT

AOOSTAR

GEM12 Max 8745HS 7700XT

CPU r7 8745HS/7840HS

GPU 7700XT

Max RAM 64GB

Drives 2

From $990

Seller Amazon

The AOOSTAR GEM12 Max 8745HS 7700XT is a mini PC powered by the AMD r7 8745HS/7840HS (Zen 4 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD 7700XT, with eGPU support. Supports up to 64GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Connectivity includes USB4 40Gbps, OCuLink, HDMI 2.1, DisplayPort 2.0. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 260 × 150 × 175mm (6.83L).

CPU & Performance

CPUr7 8745HS/7840HS

GenerationZen 4

P-Cores8

Threads16

Single-core76

Multi-core44

Socket0

GPU

GPU7700XT

Discrete GPUNo

Integrated GPUYes

eGPU supportYes

RAM

Max RAM64GB

RAM slots2

Max speed5600 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots2

Gen4 x42

SD cardNo

Ports & Connectivity

HDMI 2.12

DP 2.03

USB4 40Gbps1

OCuLinkYes

Max displays8

Network

Max Ethernet2G

2.5G ports2

vProN

Physical

Dimensions260 × 150 × 175 mm

Volume6.83L

Fan size80mm

Warranty1 yr

Power

Pricing

16GB / 512GB$1,100

32GB / 1TB$1,150

Notes

AG02 eGPU Dock. Oculink Port, turn off computer when connecting oculink or computer could be damaged

Discover More

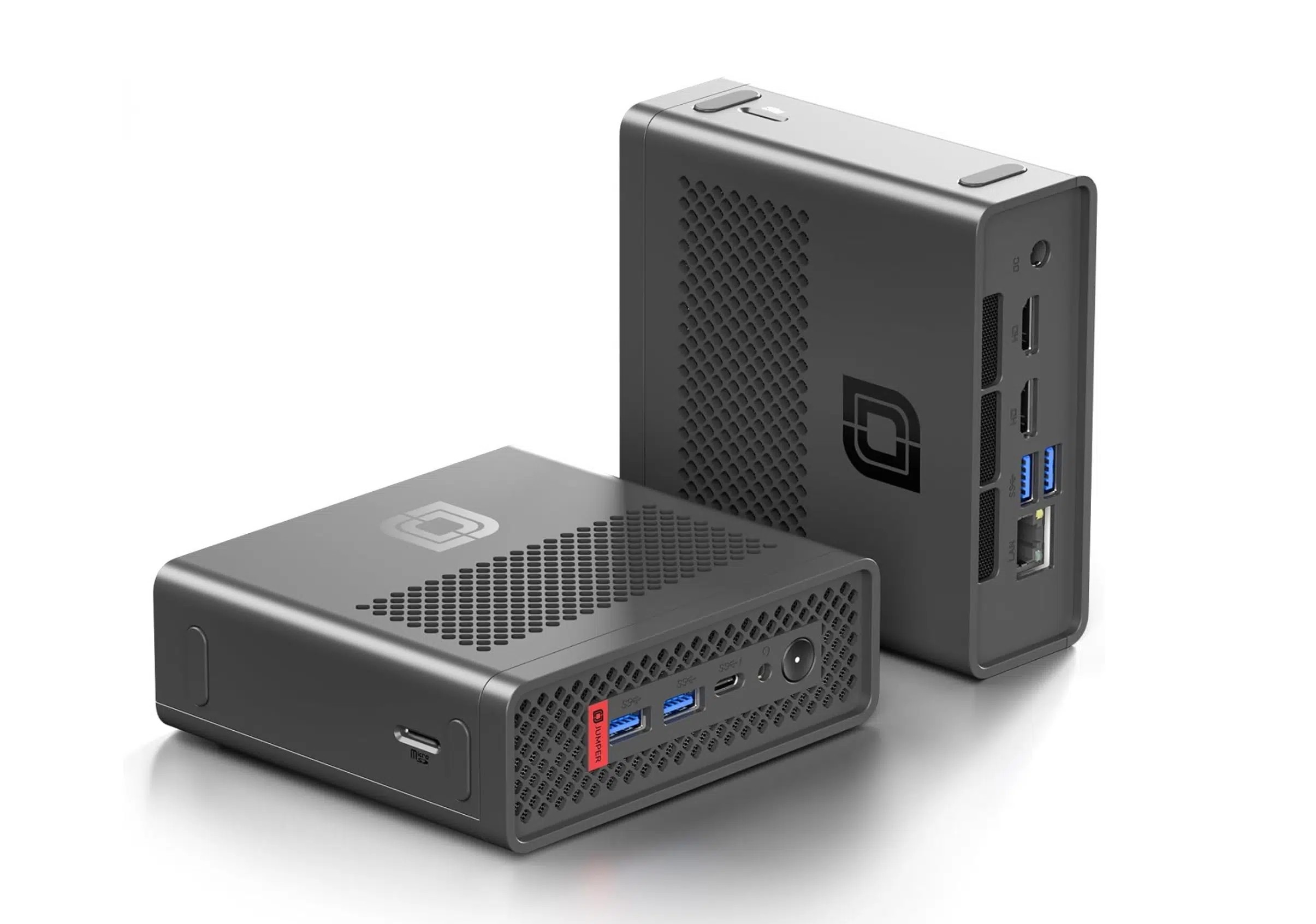

Jumper EzBox

EzBox

Jumper EzBox features Intel Celeron N100.

CPU Intel Celeron N100

Cores / Threads 4 / 4

Socket Soldered

GPU Intel Iris Xe 24EU

Ethernet 1 (2.5G)

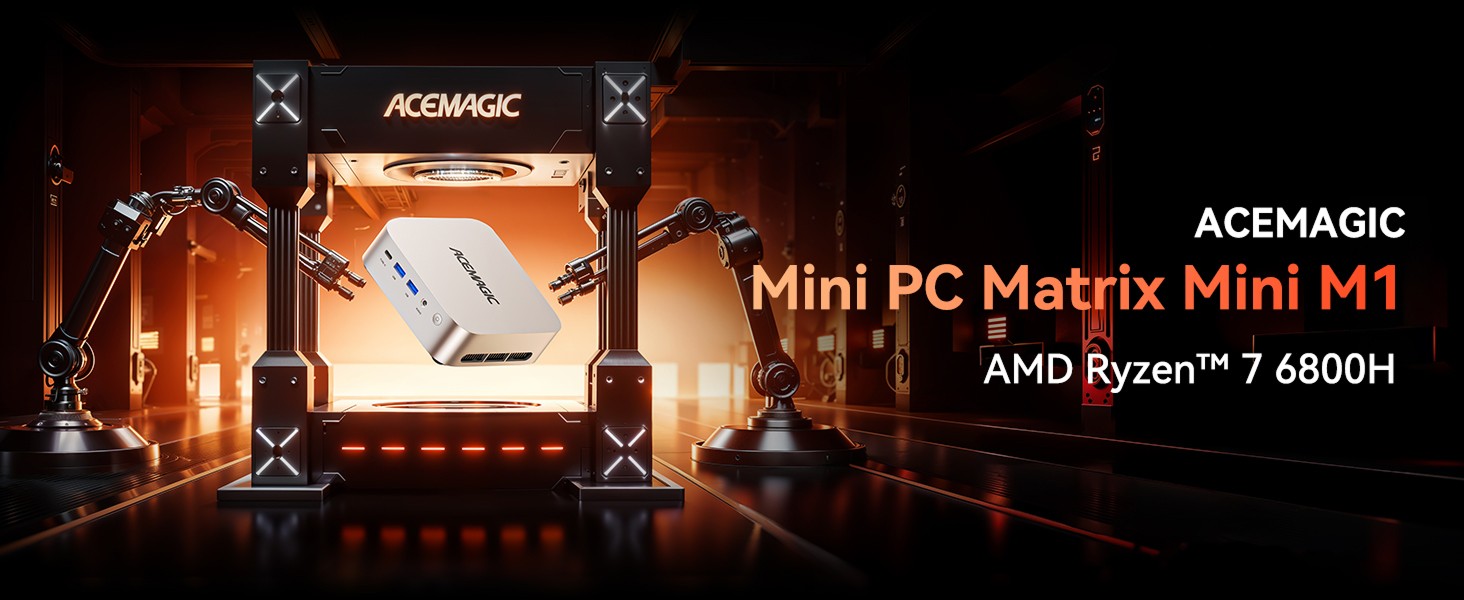

AceMagic Matrix Mini M1

Matrix Mini M1

AceMagic Matrix Mini M1 features AMD r7 6800H, 64GB RAM, offering compact 0.67L design.

CPU AMD r7 6800H

Cores / Threads 8 / 16

Socket Soldered

GPU AMD RDNA2 680M

RAM 64GB / 2slots

Speed 4800 MT/s

Drives 2 (2 NVMe)

Ethernet 1 (2.5G)

Size 128×128×41mm

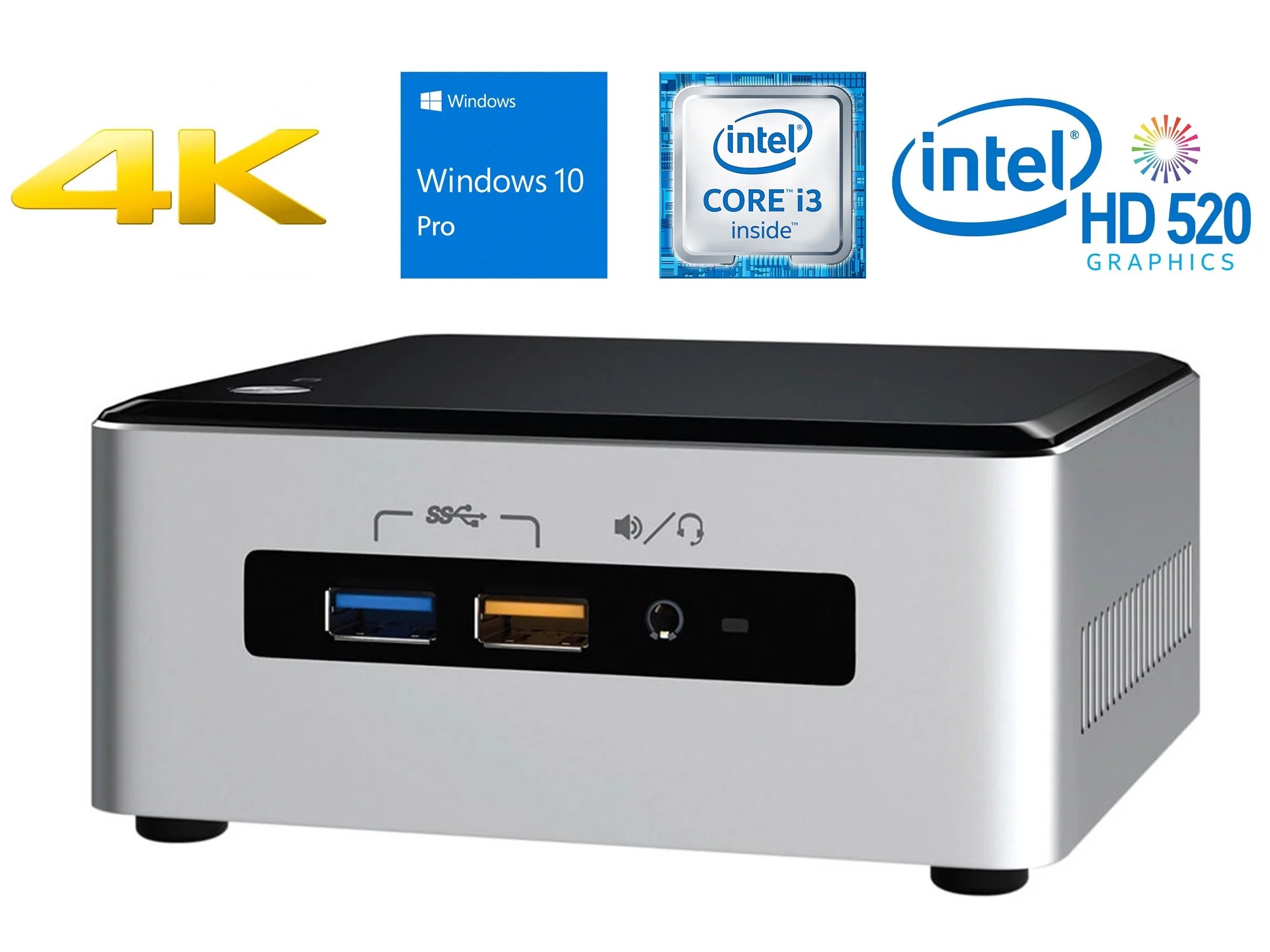

Intel NUC6i3SYH
