Mini PC DataBase

AOOSTAR WTR Pro 5700U

AOOSTAR

WTR Pro 5700U

CPU r7 5700U

GPU Vega 8

Drives 7

The AOOSTAR WTR Pro 5700U is a mini PC powered by the AMD r7 5700U (Zen 2+ gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 8. Storage capacity of up to 7 drives including 2 NVMe, 4× 3.5" SATA and 4× 2.5" SATA. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 228 × 185 × 150mm (6.33L). Uses a Brick PSU (120W), 15W TDP.

CPU & Performance

CPUr7 5700U

GenerationZen 2+

P-Cores8

Threads16

Single-core51

Multi-core23

Socket0

GPU

GPUVega 8

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

ECC supportNo

Storage

Max drives7

NVMe slots2

Gen3 x42

2.5" SATA4

SD cardYes

Ports & Connectivity

Network

Max Ethernet2G

2.5G ports2

vProN

Physical

Dimensions228 × 185 × 150 mm

Volume6.33L

Fan size120mm

Warranty1 yr

Power

TDP15W

PSU typeBrick

PSU120W

Notes

Anticipated to release in January 2024 did not happen, WTR Pro 5825U released in October 2024

Discover More

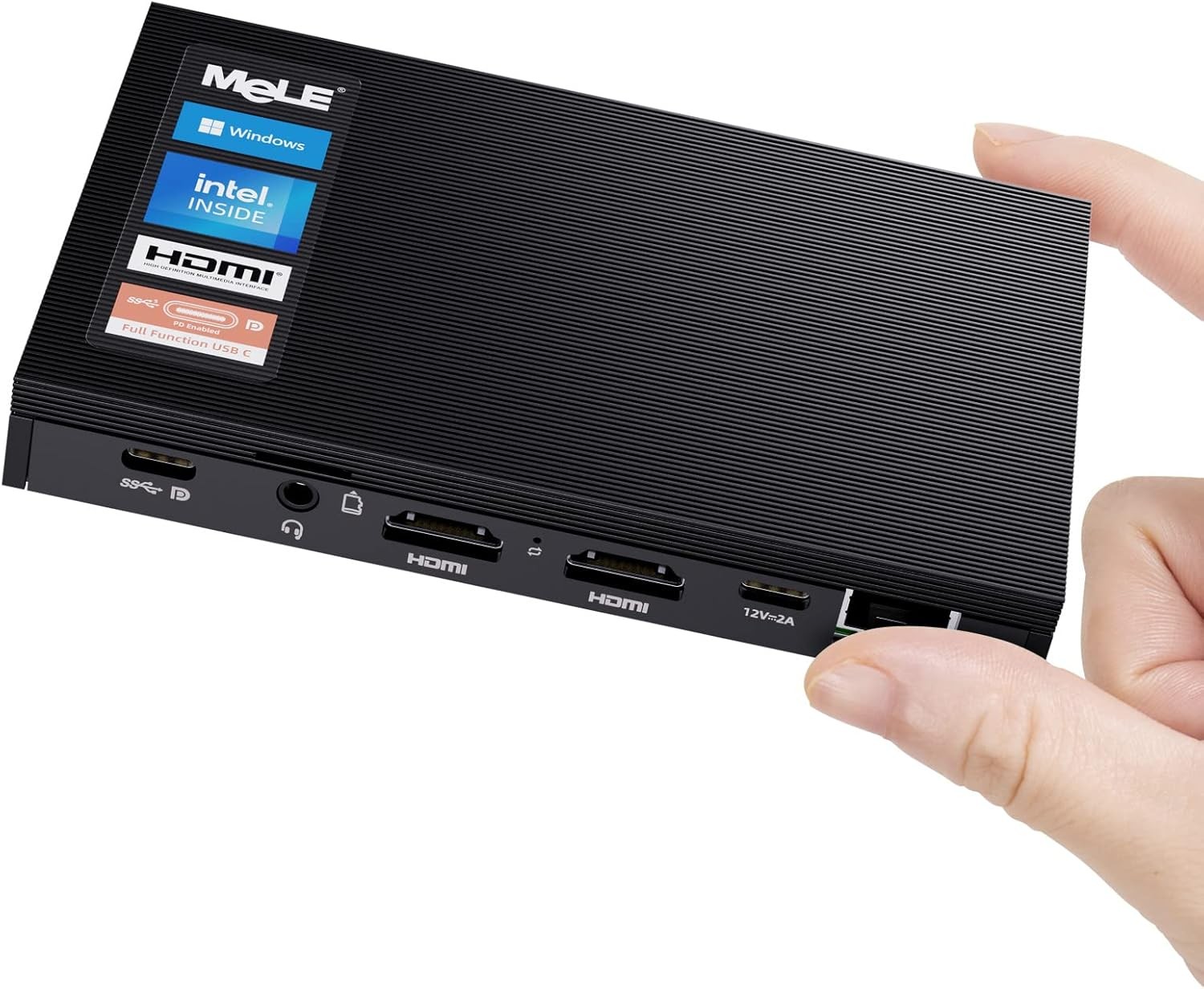

MeLE Quieter3C

Quieter3C

MeLE Quieter3C features Intel Celeron N5105, 16GB RAM, offering ultra-compact 0.20L form factor.

CPU Intel Celeron N5105

Cores / Threads – / 4

Socket Soldered

GPU Intel Jasper Lake 24EU

Drives 1 (1 NVMe)

Ethernet 1 (1G)

Size 131×81×19mm

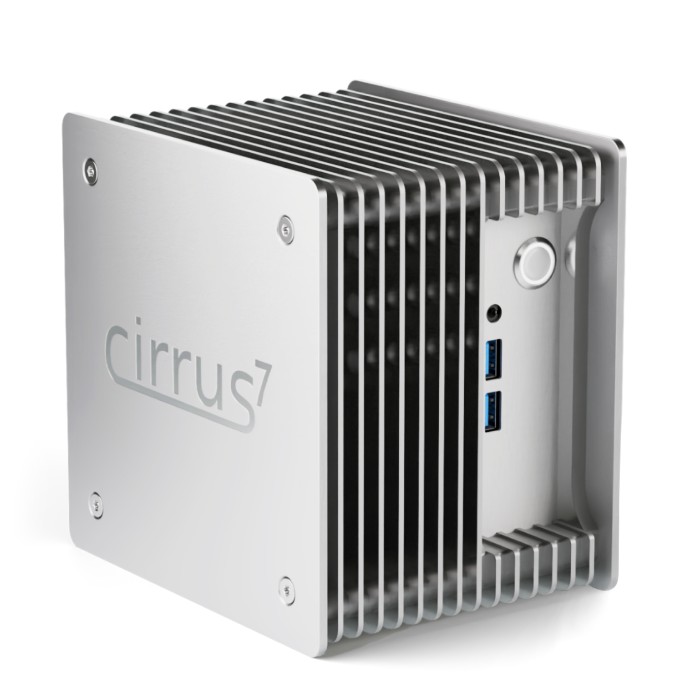

Cirrus 7 Nimbini Pro 1340P

Nimbini Pro 1340P

Cirrus 7 Nimbini Pro 1340P features Intel i5 1340P, 64GB RAM, offering USB4.

CPU Intel i5 1340P

Cores / Threads 4 / 16

Socket Soldered

GPU Intel Iris Xe 80EU

RAM 64GB / 2slots

Speed 3200 MT/s

Drives 3 (1 NVMe)

Ethernet 1 (2.5G)

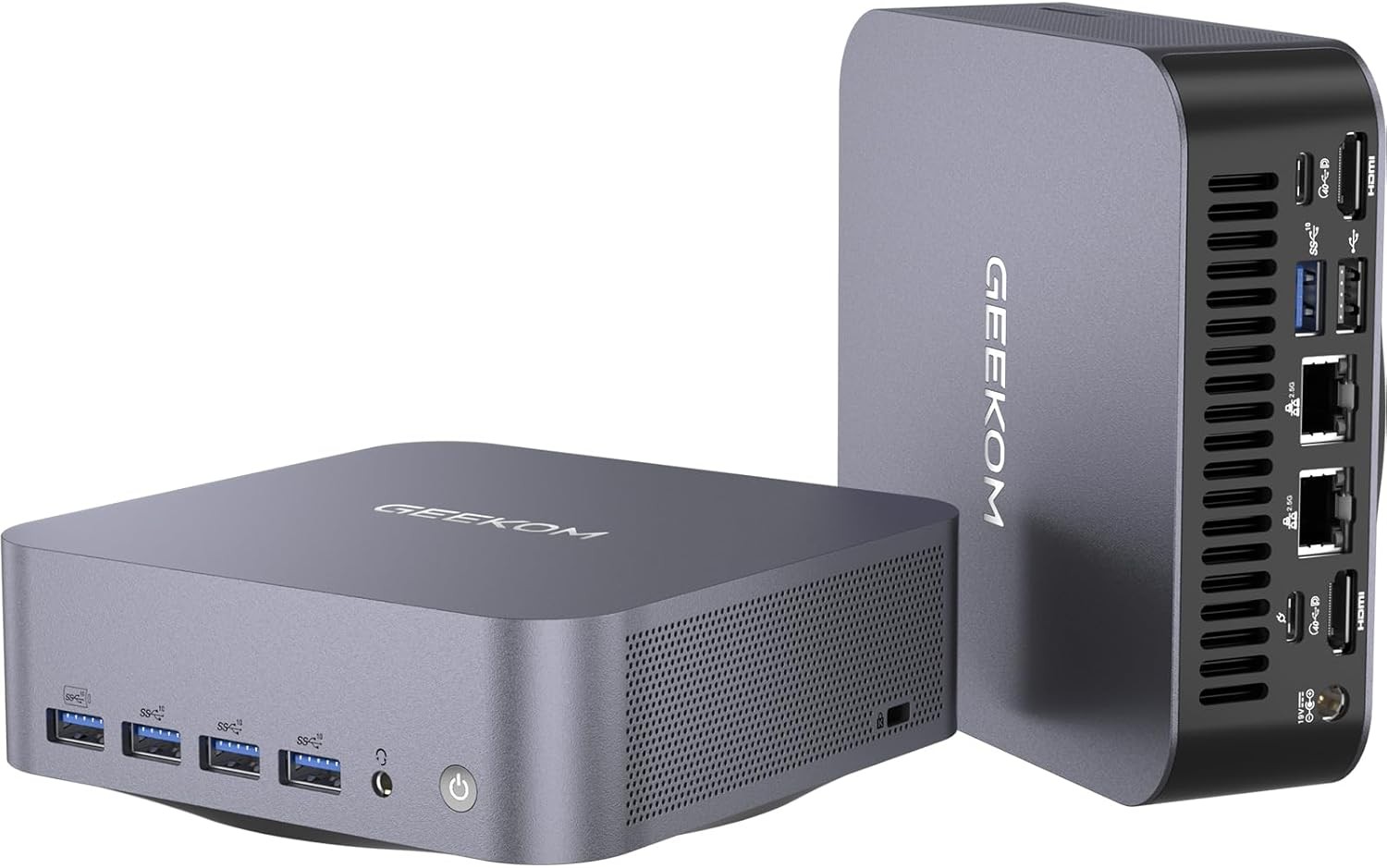

Geekom GT1 Mega U9
