AceMagic
AD08 11700B Windows Full Scan
CPU i7 11700B
GPU Intel UHD 750
Max RAM 64GB
Drives 2
From $250
Seller Amazon
The AceMagic AD08 11700B Windows Full Scan is a mini PC powered by the Intel i7 11700B (11th gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel UHD 750. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 189 × 149 × 78mm (2.20L). Uses a Brick PSU, 45W TDP.
CPU & Performance
CPUi7 11700B
Generation11th
P-Cores8
Threads16
Single-core65
Multi-core33
Socket0
GPU
GPUIntel UHD 750
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions189 × 149 × 78 mm
Volume2.2L
Fan size80mm
Warranty3 yr
Power
TDP45W
PSU typeBrick
Pricing
16GB / 512GB$250
32GB / 1TB$300
Notes
Mar 7 2025: $230 to $170.
Discover More
HP
EliteDesk 800 G5
HP EliteDesk 800 G5 features Intel i9 9900T, 32GB RAM.
CPU Intel i9 9900T
Cores / Threads 8 / 16
Socket LGA1151
GPU Intel Intel UHD 630
RAM 32GB / 2slots
Speed 2666 MT/s
Drives 3 (2 NVMe)
SATA 1×2.5"
Ethernet 1 (1G)
PSU Brick
Size 177×175×34mm
Vol 1.05L
Asus

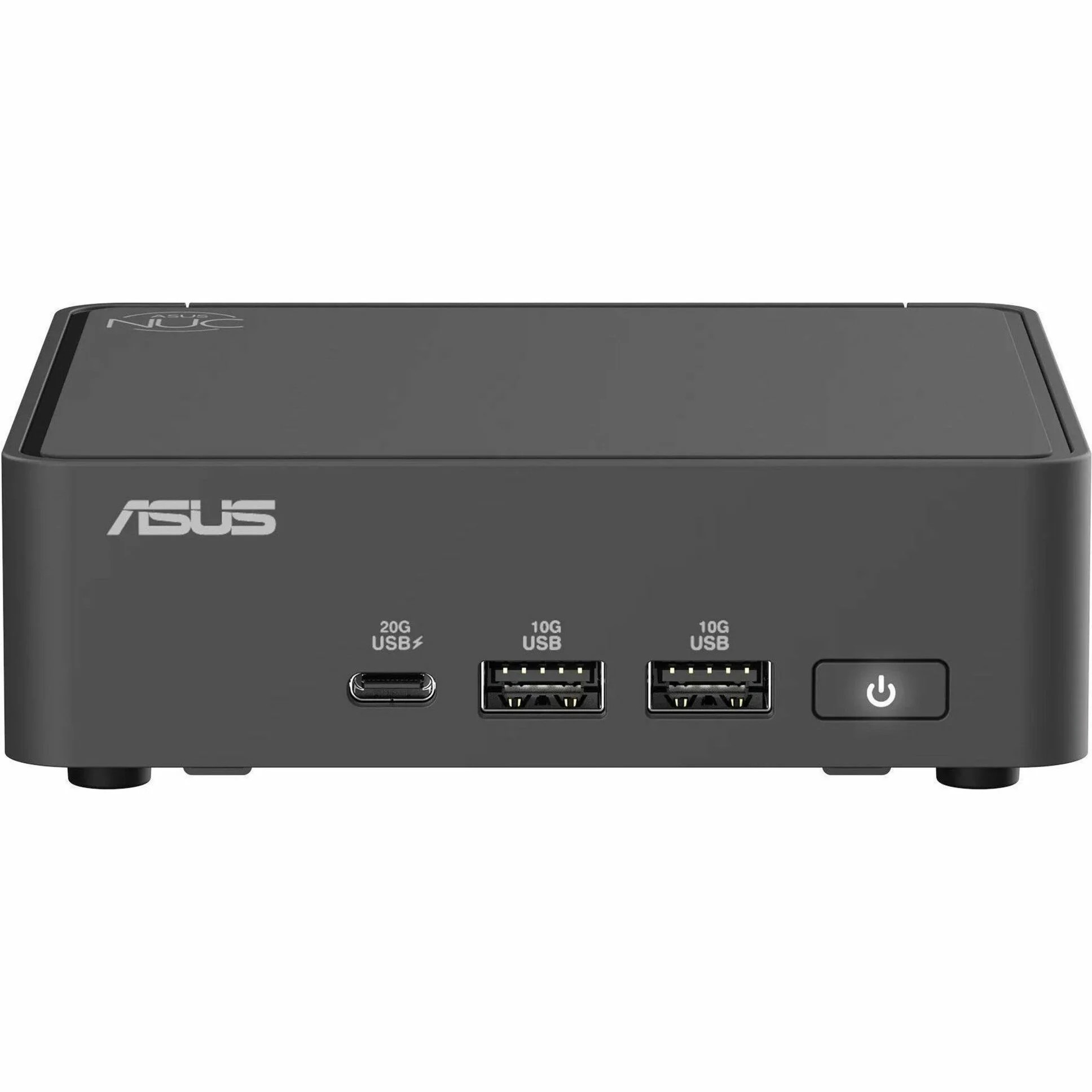

NUC 15 Pro 265H
