AceMagic
AK1 Pro
CPU Celeron N5105
GPU Jasper Lake 24EU
Max RAM 16GB
Drives 2
From $265
Seller Amazon

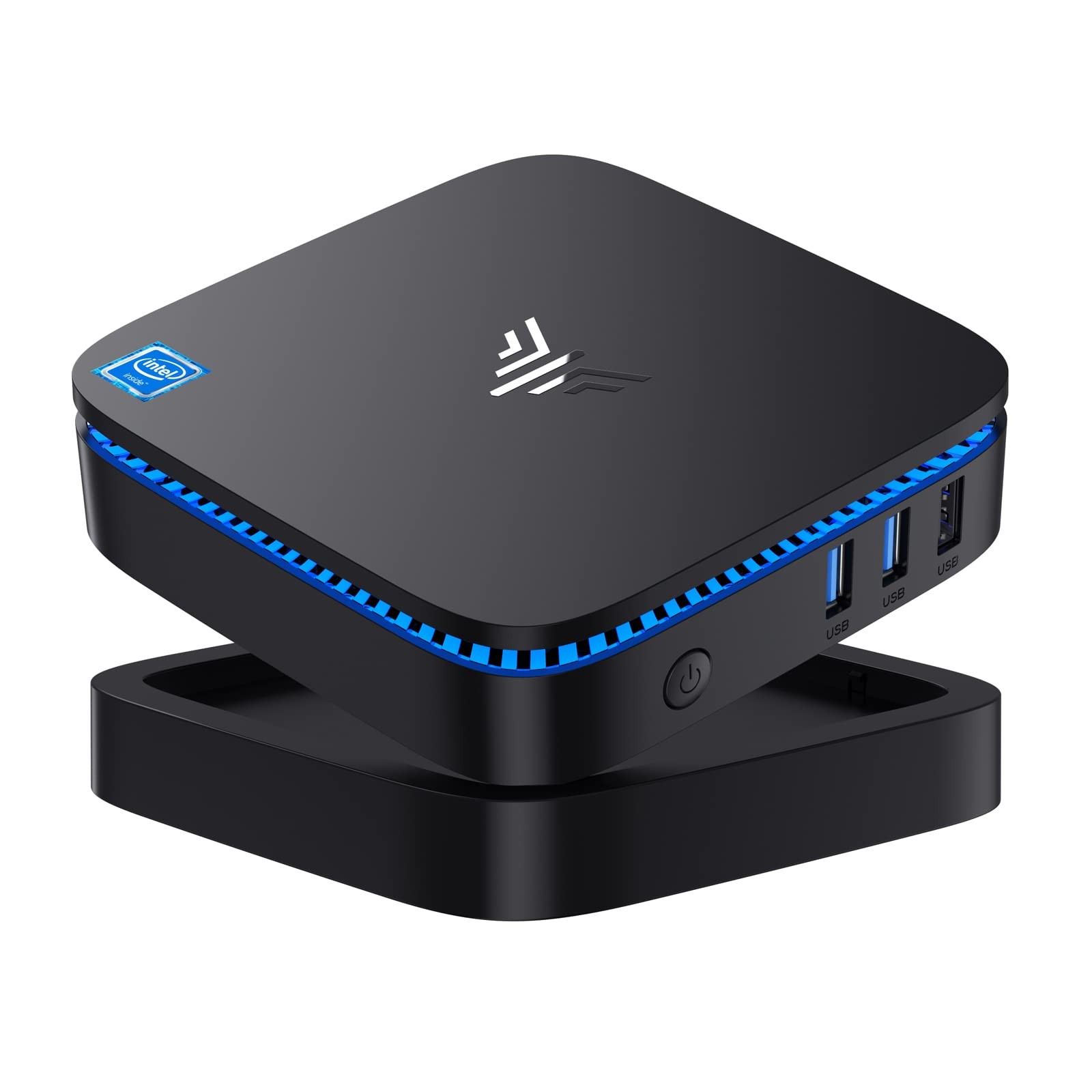

The AceMagic AK1 Pro is a mini PC powered by the Intel Celeron N5105 (11th gen). It features a soldered CPU. Graphics are handled by the integrated Intel Jasper Lake 24EU. Supports up to 16GB of RAM at 3200 MT/s. Storage capacity of up to 2 drives including 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 128 × 128 × 52mm (0.85L).
CPU & Performance
CPUCeleron N5105
Generation11th
Threads4
Single-core30
Multi-core6
Socket0
GPU
GPUJasper Lake 24EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM16GB
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions128 × 128 × 52 mm
Volume0.85L
Fan size40mm
Warranty3 yr
Power
TDP10W
Pricing
16GB / 512GB$265
Notes
Can be made smaller without a 2.5" drive to 128x128x33 = 0.54L
Discover More
ZOTAC
ZP-CI333NANO
ZOTAC ZP-CI333NANO features Intel Celeron J6412, 32GB RAM.
CPU Intel Celeron J6412
Cores / Threads – / 4
Socket Soldered
GPU Intel Elkhart Lake 16EU
RAM 32GB / 2slots
Speed 3200 MT/s
Drives 3
SATA 1×2.5"
Ethernet 1 (1G)
PSU Brick
Size 160×127×59mm
Vol 1.2L
iKoolcore
R2 Max N100
$300
iKoolcore R2 Max N100 features Intel Celeron N100, 48GB RAM, offering 10G Ethernet and compact 0.74L design.
CPU Intel Celeron N100
Cores / Threads – / 4
Socket Soldered
GPU Intel Iris Xe 24EU
RAM 48GB / 1slot
Speed 4800 MT/s
Drives 2 (2 NVMe)
Ethernet 4 (10G)
Size 157×118×40mm
Vol 0.74L
Asus
PN64 12700H
$630

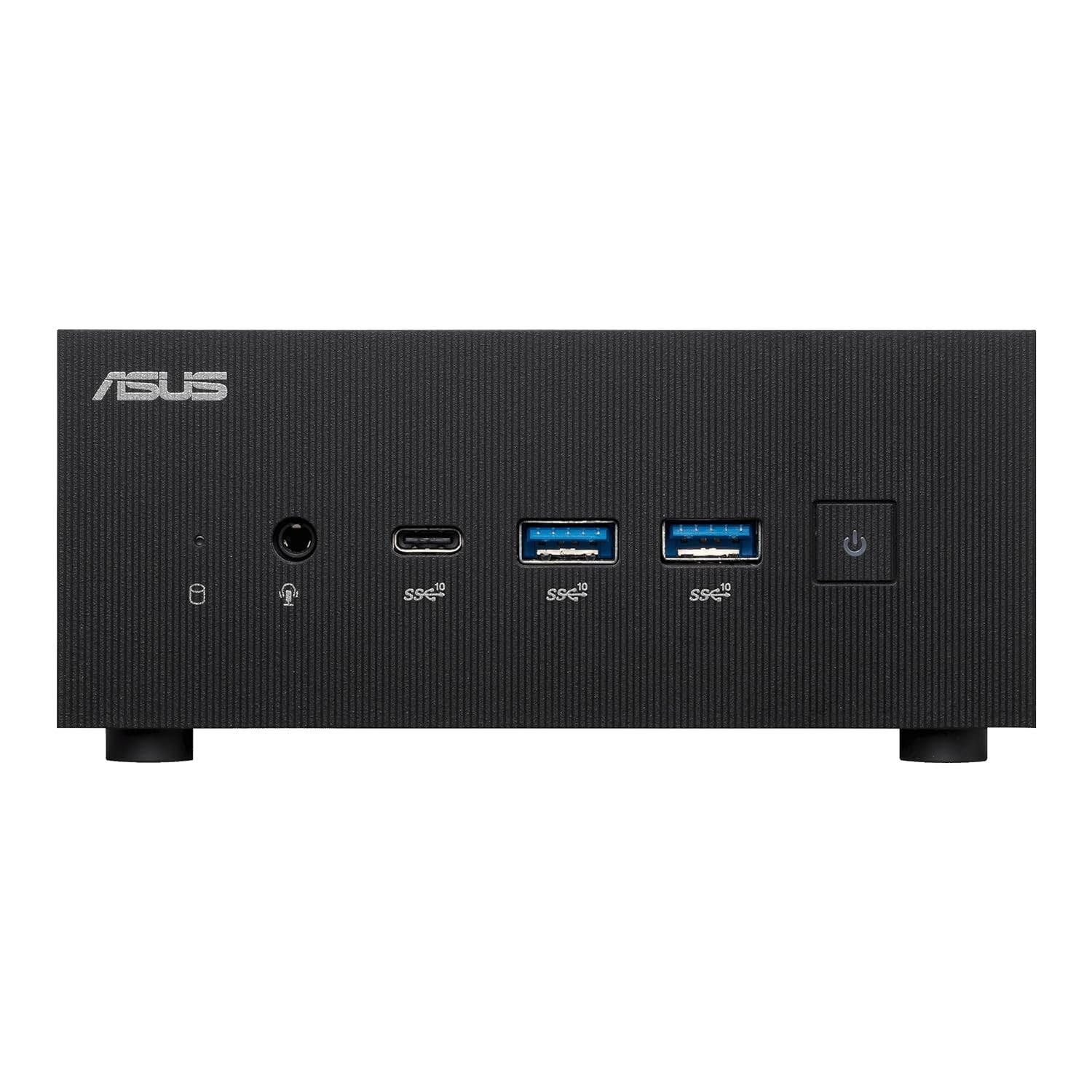

Asus PN64 12700H features Intel i7 12700H, 64GB RAM, offering compact 0.90L design.
