Mini PC DataBase

AceMagic AM06 Pro 4800U Windows Full Scan

AceMagic

AM06 Pro 4800U Windows Full Scan

CPU r7 4800U

GPU Vega 8

Max RAM 64GB

Drives 2

From $390

Seller Amazon

The AceMagic AM06 Pro 4800U Windows Full Scan is a mini PC powered by the AMD r7 4800U (Zen 2 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 8. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe. Networking features 2 Ethernet ports (up to 1G). Dimensions: 132 × 132 × 50mm (0.87L). Uses a Brick PSU, 15W TDP.

CPU & Performance

CPUr7 4800U

GenerationZen 2

P-Cores8

Threads16

Single-core51

Multi-core24

Socket0

GPU

GPUVega 8

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots1

Gen3 x41

SD cardNo

Ports & Connectivity

Max displays3

Network

Max Ethernet2G

1G ports2

vProN

Physical

Dimensions132 × 132 × 50 mm

Volume0.87L

Fan size70mm

Warranty3 yr

Power

TDP15W

PSU typeBrick

Pricing

16GB / 512GB$390

Notes

Oct 16: My mistake, I misunderstood a users testing. USB C PD in is not supported. USB C Alt mode disables front usb c video output

Discover More

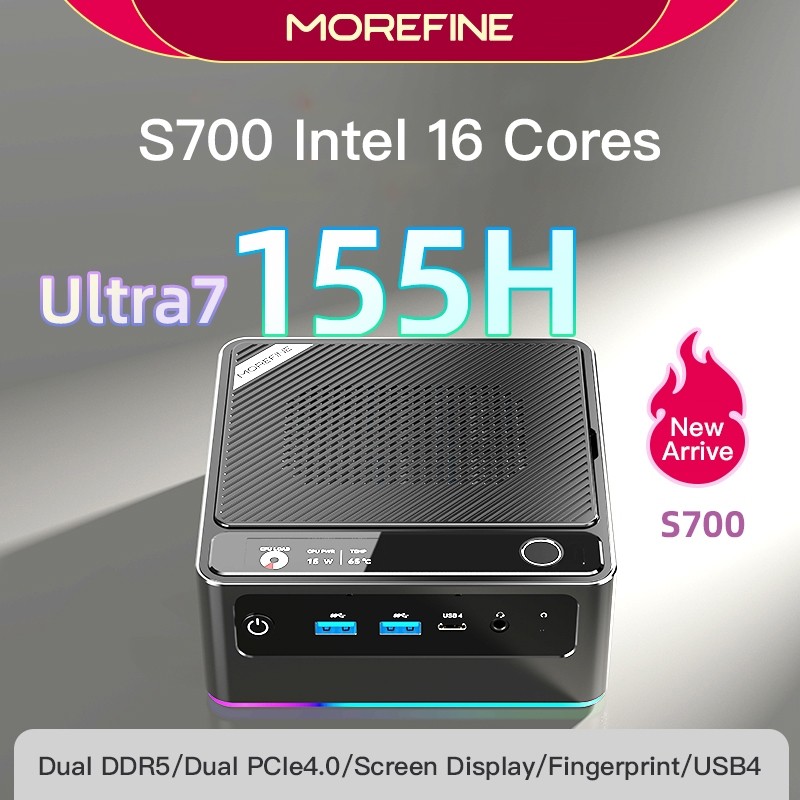

Morefine S700 155H 4090M

S700 155H 4090M

Morefine S700 155H 4090M features Intel U7 155H with NVIDIA Mobile 4090 discrete GPU, offering 2× 2.5G Ethernet and USB4.

CPU Intel U7 155H

Cores / Threads 6 / 22

Socket Soldered

GPU NVIDIA Mobile 4090

RAM 96GB / 2slots

Speed 5600 MT/s

Drives 3 (2 NVMe)

Ethernet 2 (2.5G)

Size 130×129×54mm

Dell Precision 3280 Compact

Precision 3280 Compact

Dell Precision 3280 Compact features Intel i7 14700 with NVIDIA 4000 Ada discrete GPU, offering ECC support.

CPU Intel i7 14700

Cores / Threads 8 / 28

GPU NVIDIA 4000 Ada

RAM 64GB / 2slots

Speed 5600 MT/s

Drives 2 (2 NVMe)

Ethernet 1 (1G)

Size 190×178×72mm

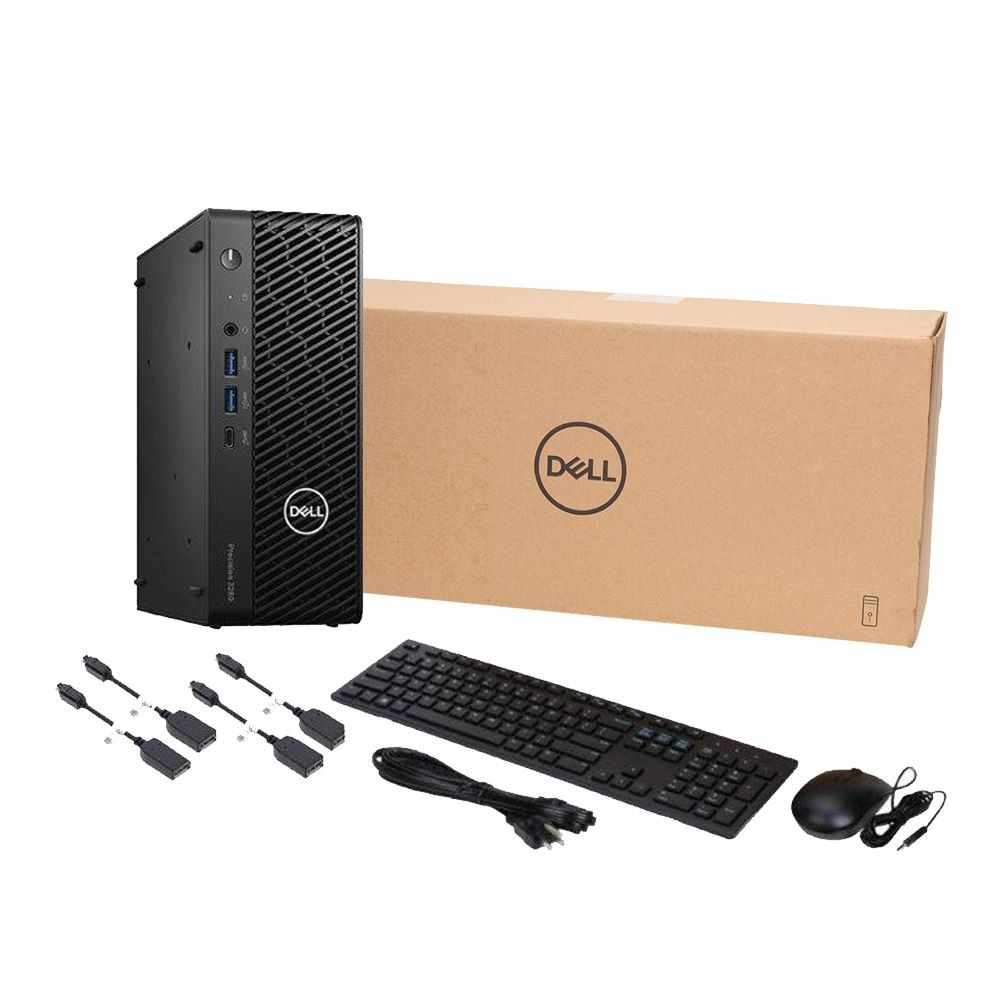

Dell Precision 3280 Compact
