AceMagic
AM07 5600U
CPU r5 5600U
GPU Vega 7
Max RAM 64GB
Drives 1
From $300
Seller Amazon
The AceMagic AM07 5600U is a mini PC powered by the AMD r5 5600U (Zen 3 gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 7. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 1 drive including 1 NVMe. Networking features 2 Ethernet ports (up to 1G). Dimensions: 127 × 126 × 43mm (0.69L). Uses a Brick PSU, 15W TDP.
CPU & Performance
CPUr5 5600U
GenerationZen 3
P-Cores6
Threads12
Single-core58
Multi-core23
Socket0
GPU
GPUVega 7
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives1
NVMe slots1
Gen3 x41
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet2G
1G ports2
vProN
Physical
Dimensions127 × 126 × 43 mm
Volume0.69L
Fan size70mm
Warranty3 yr
Power
TDP15W
PSU typeBrick
Pricing
16GB / 512GB$300
Discover More
Asus
ROG NUC 15
$3,300
Asus ROG NUC 15 features Intel U9 285HX with AMD Mobile 5080 discrete GPU, offering USB4.
CPU Intel U9 285HX
Cores / Threads 8 / 24
Socket Soldered
GPU AMD Mobile 5080
RAM 96GB / 2slots
Speed 6400 MT/s
Drives 2 (2 NVMe)
Ethernet 1 (2.5G)
PSU Brick
Size 282×188×57mm
Vol 3.02L

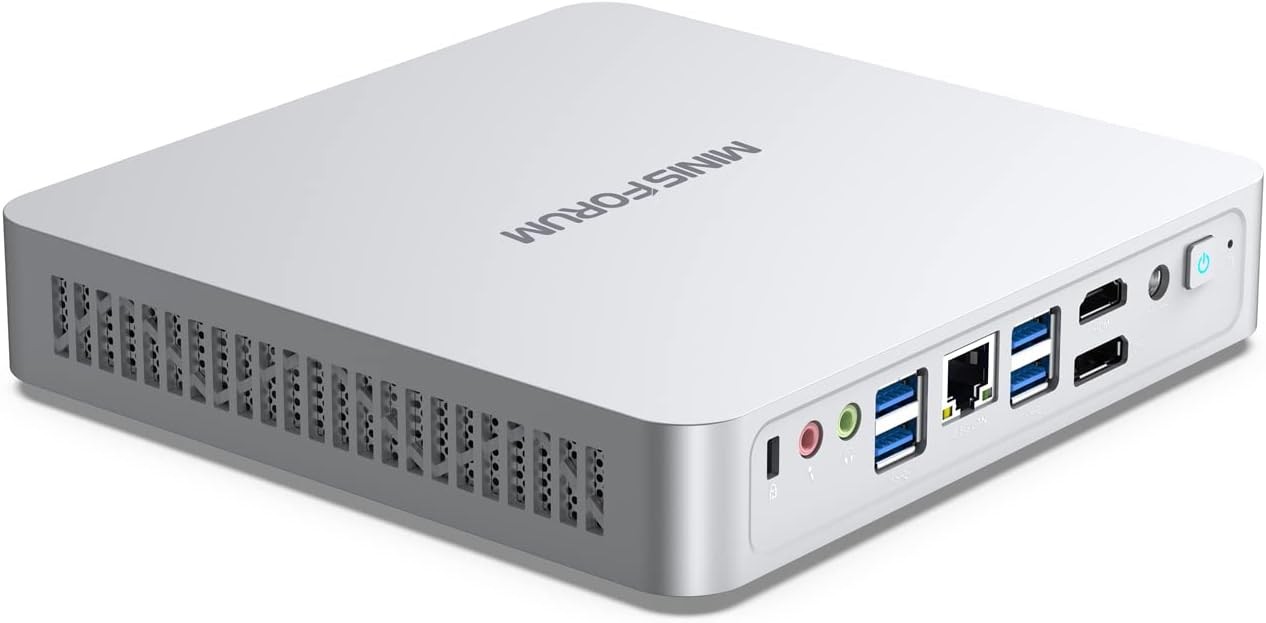

Minisforum
