AceMagic
AM20 32GB
CPU r7 7735H/6800H
GPU RDNA2 680M
Max RAM 32GB
Drives 3
Seller AceMagic

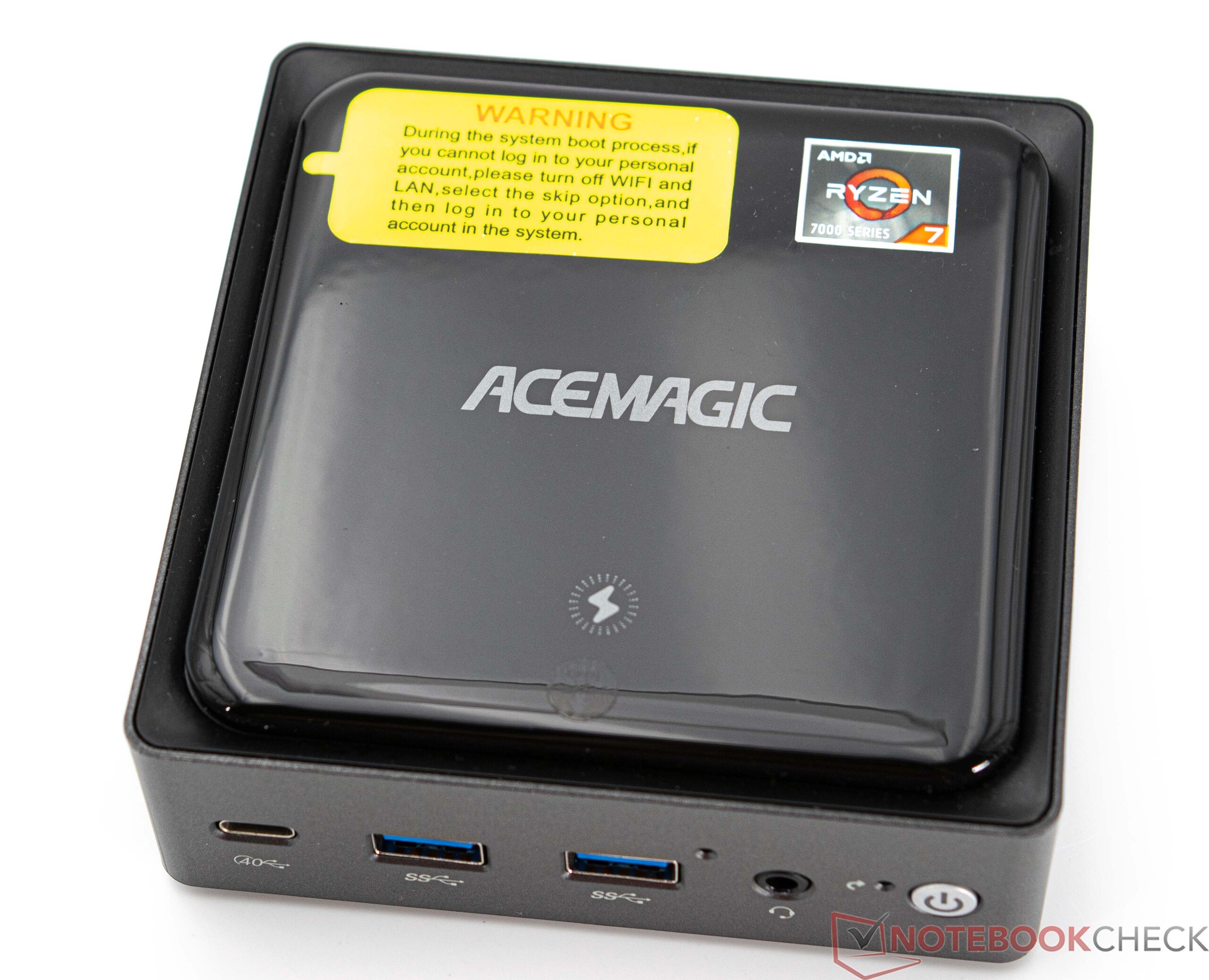

The AceMagic AM20 32GB is a mini PC powered by the AMD r7 7735H/6800H (Zen 3+ gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA2 680M. Supports up to 32GB of RAM at 4800 MT/s. Storage capacity of up to 3 drives including 3 NVMe. Networking features 1 Ethernet port (up to 1G). Dimensions: 107 × 107 × 38mm (0.44L).
CPU & Performance
CPUr7 7735H/6800H
GenerationZen 3+
P-Cores8
Threads16
Single-core63
Multi-core32
Socket0
GPU
GPURDNA2 680M
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
Max speed4800 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots3
Gen3 x43
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions107 × 107 × 38 mm
Volume0.44L
Warranty3 yr
Power
TDP45W
Notes
Wireless charging pad on top
Discover More

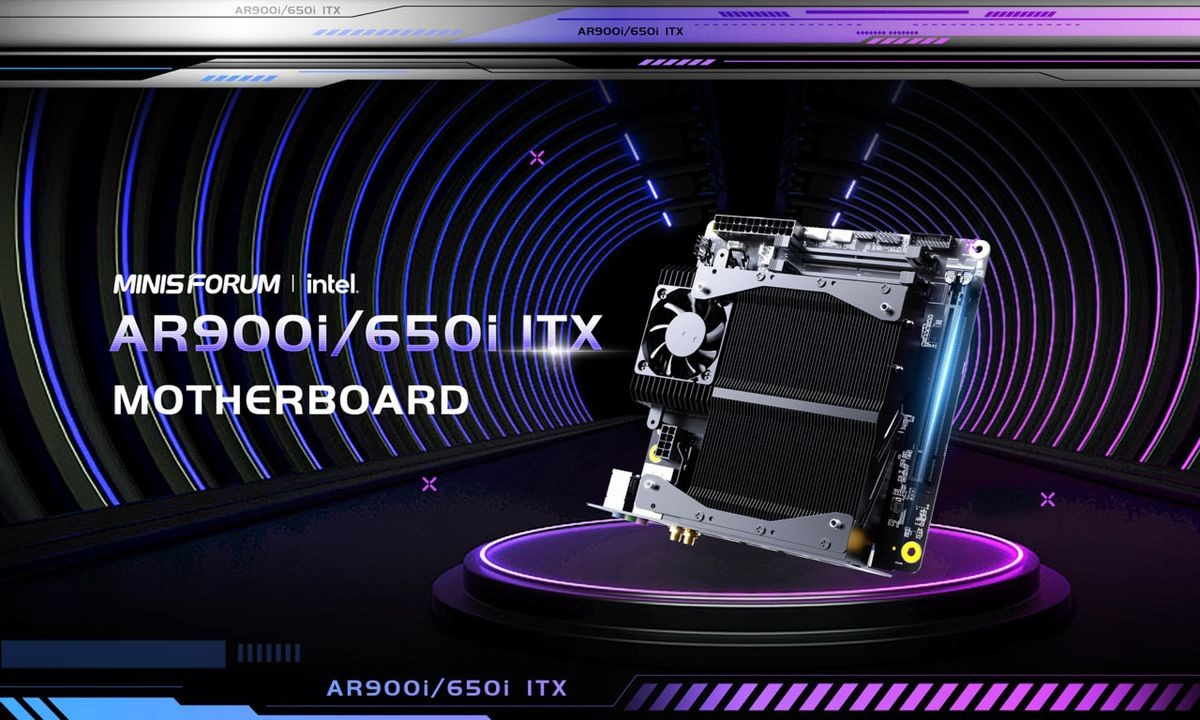

Minisforum
AR900i ITX
$591
Minisforum AR900i ITX features Intel i9 13900HX, 96GB RAM, offering USB4.
CPU Intel i9 13900HX
Cores / Threads 8 / 32
Socket Soldered
GPU Intel Intel UHD 770
RAM 96GB / 2slots
Speed 5200 MT/s
Drives 4 (4 NVMe)
Ethernet 1 (2.5G)
PSU SFX
Size 170×170×50mm
Vol 1.45L
Asrock
DeskMini B660W 12400
$330
Asrock DeskMini B660W 12400 features Intel i5 12400, 64GB RAM.
CPU Intel i5 12400
Cores / Threads 6 / 12
Socket LGA1700
GPU Intel Intel UHD 730
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 4 (2 NVMe)
SATA 2×2.5"
Ethernet 1 (1G)
PSU Brick
Size 155×155×80mm
Vol 1.92L

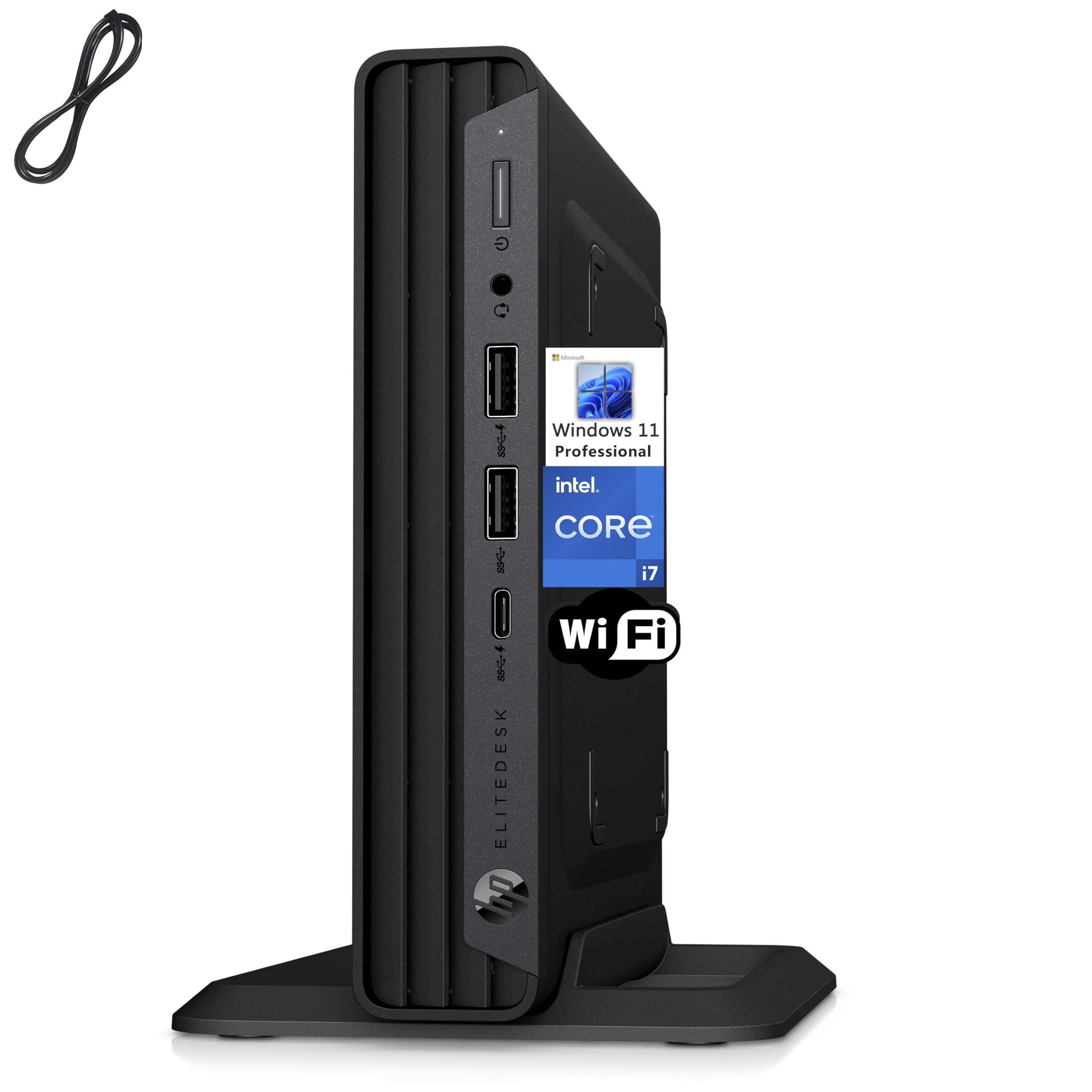

HP
