AceMagic
K1
CPU r7 5700U
GPU Vega 8
Max RAM 64GB
Drives 2
From $250
Seller Amazon

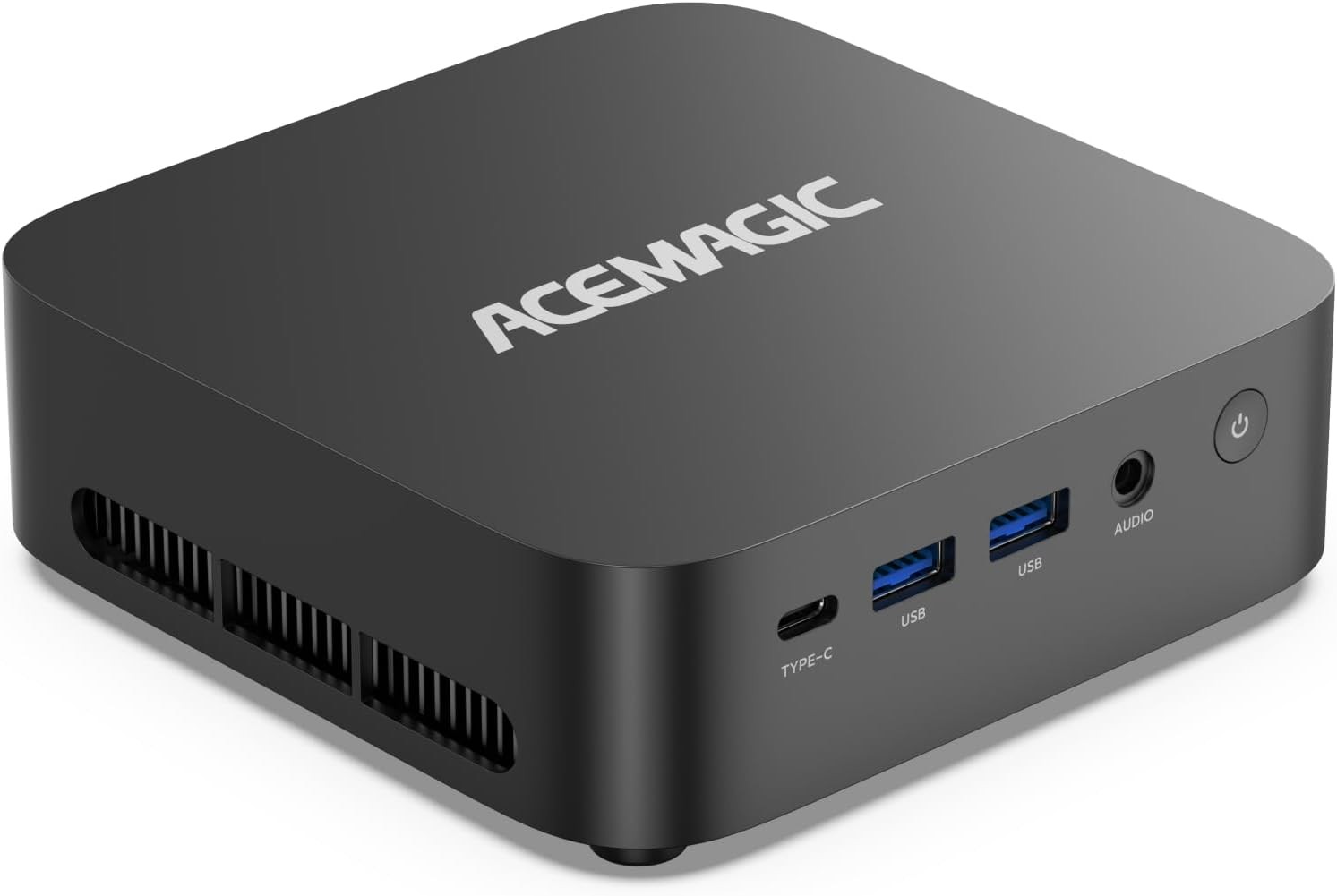

The AceMagic K1 is a mini PC powered by the AMD r7 5700U (Zen 2+ gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 8. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe. Networking features 1 Ethernet port (up to 1G). Dimensions: 138 × 126 × 50mm (0.87L).
CPU & Performance
CPUr7 5700U
GenerationZen 2+
P-Cores8
Threads16
Single-core51
Multi-core23
Socket0
GPU
GPUVega 8
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions138 × 126 × 50 mm
Volume0.87L
Fan size90mm
Warranty3 yr
Power
TDP15W
Pricing
16GB / 512GB$250
32GB / 1TB$368
Discover More
CWWK/Topton
N305 4 NIC
$357
CWWK/Topton N305 4 NIC features Intel i3 N305, 16GB RAM, offering 4× 2.5G Ethernet.
CPU Intel i3 N305
Cores / Threads – / 8
Socket Soldered
GPU Intel Iris Xe 32EU
RAM 16GB / 1slot
Speed 4800 MT/s
Drives 2 (1 NVMe)
Ethernet 4 (2.5G)
Size 146×145×54mm
Vol 1.14L

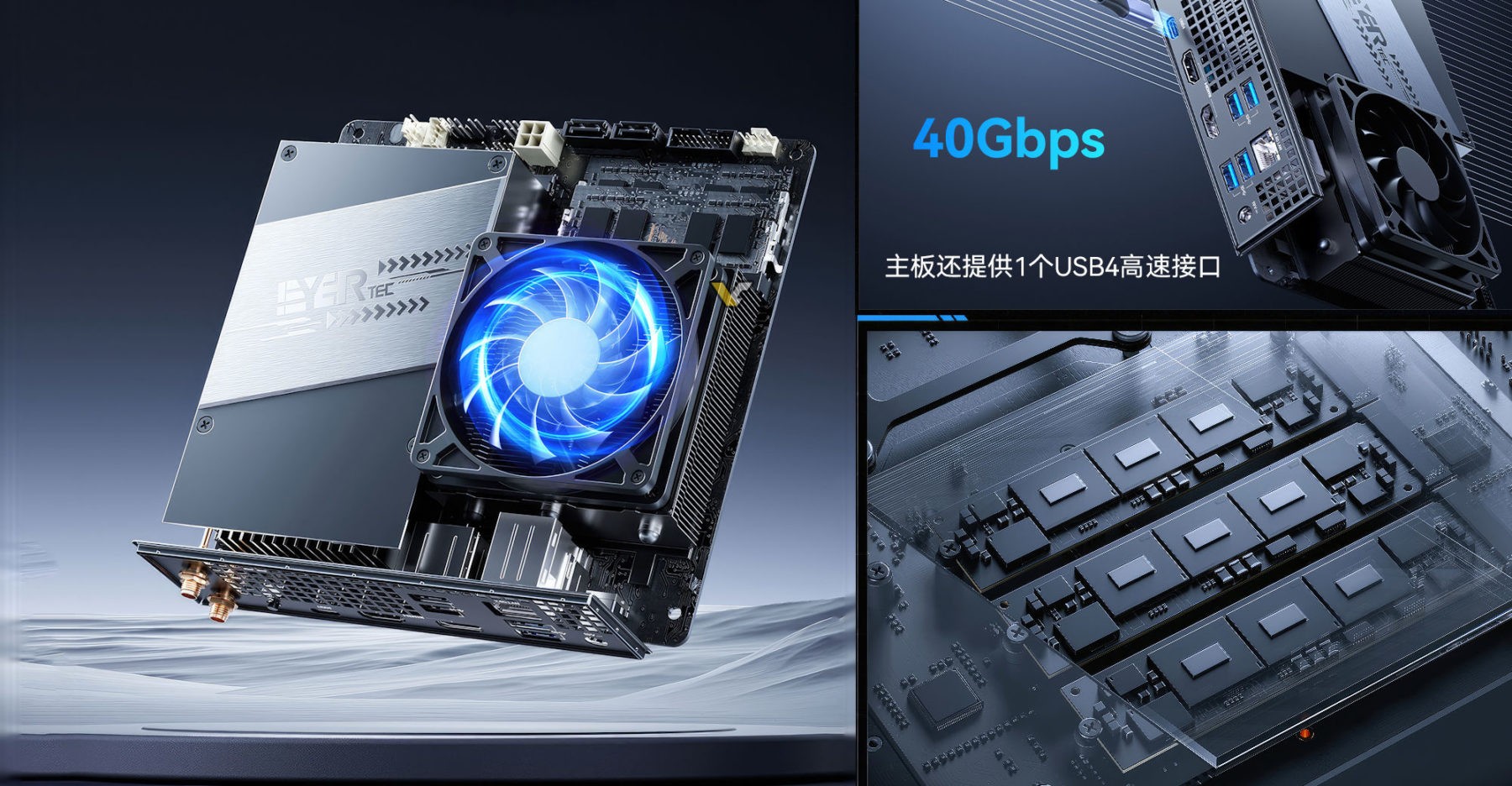

Minisforum
Discontinued Eyertec AD650i
$355
Minisforum Discontinued Eyertec AD650i features Intel i7 12650H, 64GB RAM, offering USB4.
CPU Intel i7 12650H
Cores / Threads 6 / 16
Socket Soldered
GPU Intel Iris Xe 64EU
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 8 (6 NVMe)
SATA 2×2.5"
Ethernet 1 (2.5G)
PSU Brick
Size 170×170×40mm
Vol 1.16L

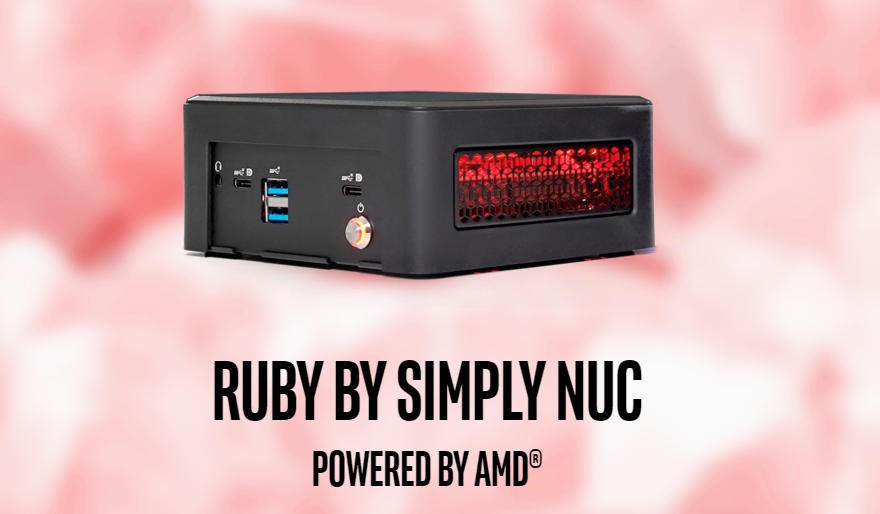

Simply NUC
