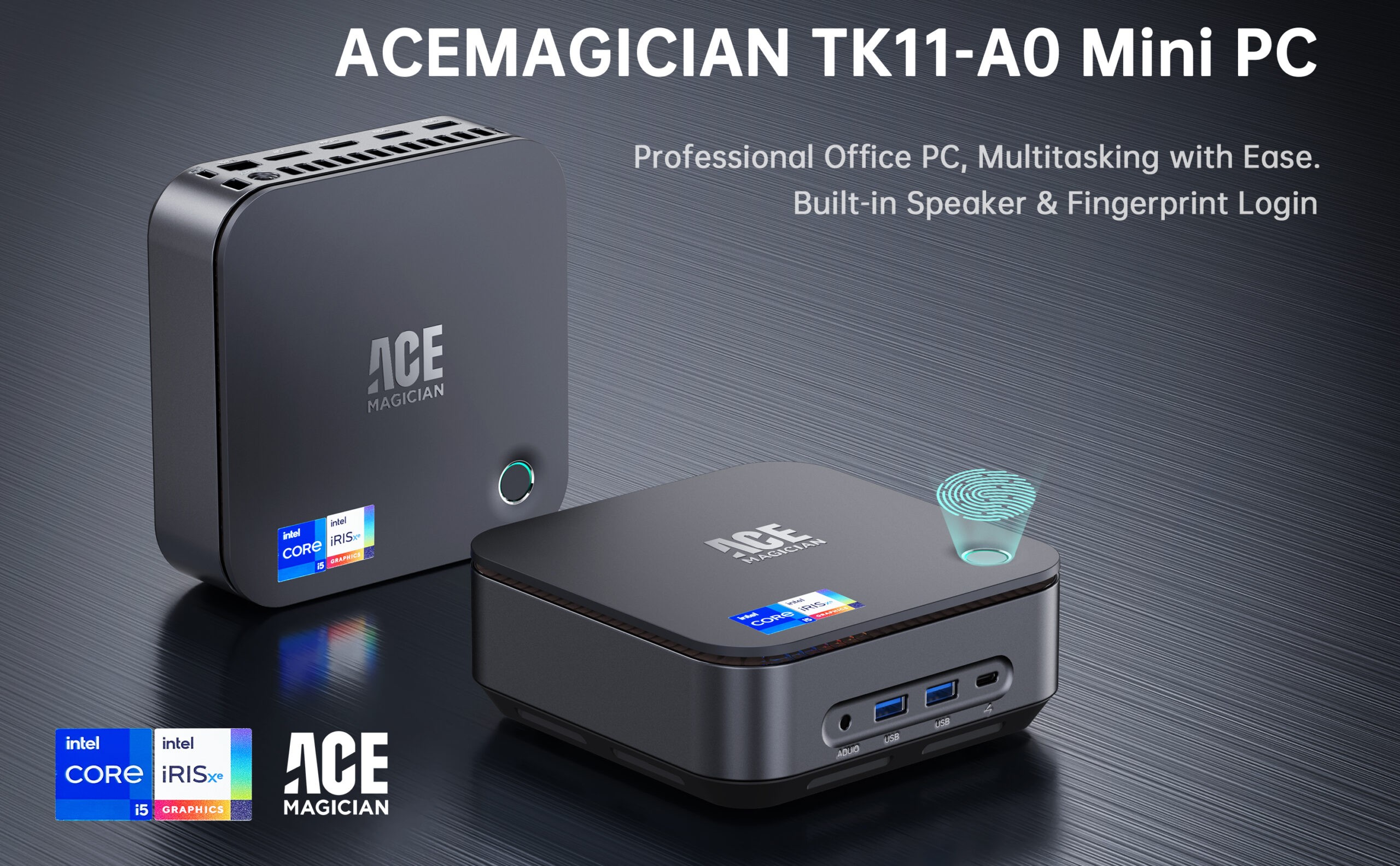

AceMagic
TK11-A0 1135G7
CPU i5 1135G7
GPU Iris Xe 80EU
Max RAM 64GB
Drives 2
From $400
Seller Amazon
The AceMagic TK11-A0 1135G7 is a mini PC powered by the Intel i5 1135G7 (11th gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 1G). Dimensions: 138 × 138 × 54mm (1.03L).
CPU & Performance
CPUi5 1135G7
Generation11th
P-Cores4
Threads8
Single-core53
Multi-core14
Socket0
GPU
GPUIris Xe 80EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
USB4 40Gbps1
Max displays3
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions138 × 138 × 54 mm
Volume1.03L
Fan size80mm
Warranty3 yr
Power
TDP28W
Pricing
16GB / 512GB$400
Notes
Built in speaker
Discover More
SZBox

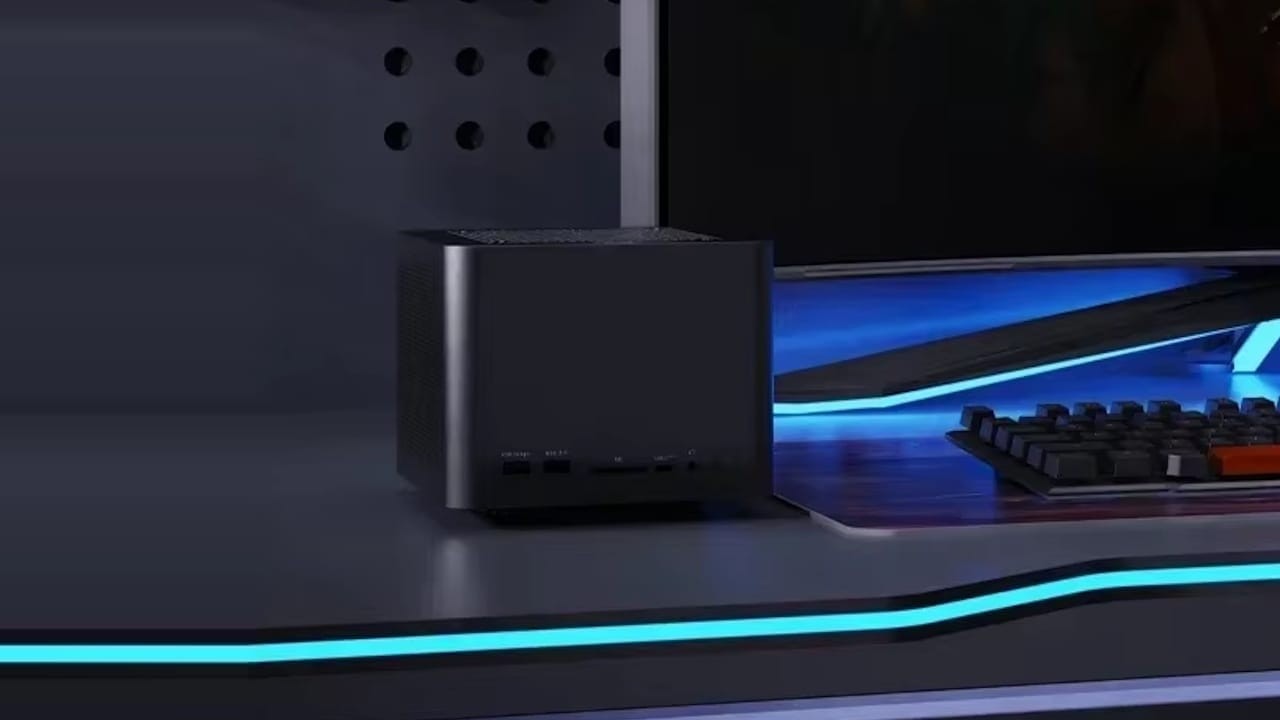

FN60G 13900T 6600M
$955
SZBox FN60G 13900T 6600M features Intel i9 13900T with AMD 6600M discrete GPU, offering 2× 2.5G Ethernet.
CPU Intel i9 13900T
Cores / Threads 8 / 32
Socket LGA1700
GPU AMD 6600M
RAM 64GB / 2slots
Speed 5600 MT/s
Drives 3 (2 NVMe)
Ethernet 2 (2.5G)
PSU Brick
Size 168×168×92mm
Vol 2.6L
MSI

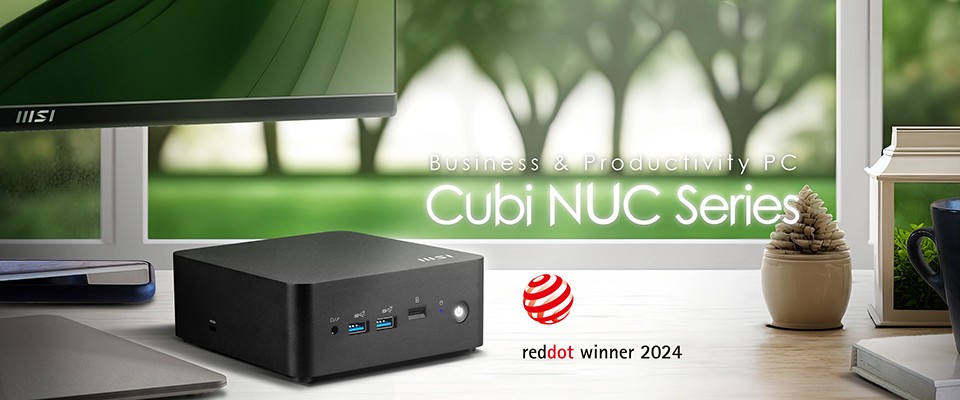

Cubi NUC 14MQG
