AceMagic
TK11-A0 11390H
CPU i5 11390H
GPU Iris Xe 96EU
Max RAM 64GB
Drives 2
Seller Amazon
The AceMagic TK11-A0 11390H is a mini PC powered by the Intel i5 11390H (11th gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 96EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 1G). Dimensions: 138 × 138 × 54mm (1.03L).
CPU & Performance
CPUi5 11390H
Generation11th
P-Cores4
Threads8
Single-core57
Multi-core15
Socket0
GPU
GPUIris Xe 96EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
USB4 40Gbps1
Max displays3
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions138 × 138 × 54 mm
Volume1.03L
Fan size80mm
Warranty3 yr
Power
TDP28W
Notes
Built in speaker
Discover More
GenMachine
Ren3000 3550H
$134
GenMachine Ren3000 3550H features AMD r5 3550H, 32GB RAM, offering compact 0.70L design.
CPU AMD r5 3550H
Cores / Threads 4 / 8
Socket Soldered
GPU AMD Vega 8 (Ryzen 3000…
RAM 32GB / 2slots
Speed 2400 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (1G)
PSU Brick
Size 129×129×42mm
Vol 0.7L

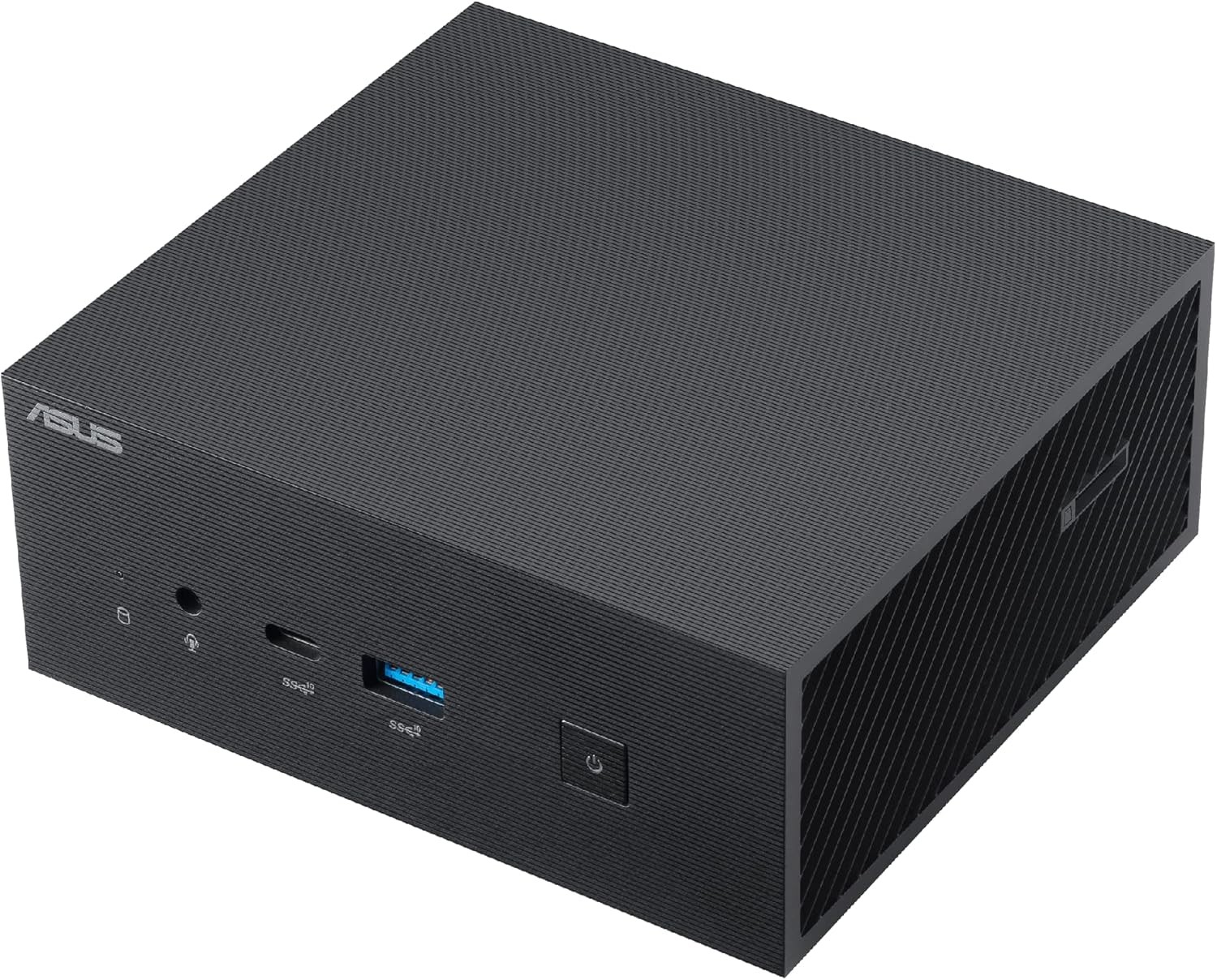

Asus
