Mini PC DataBase

Asrock 4x4 Box 7840U

Asrock

4x4 Box 7840U

CPU r7 7840U

GPU RDNA3 780M

Max RAM 64GB

Drives 2

From $570

Seller Newegg

The Asrock 4x4 Box 7840U is a mini PC powered by the AMD r7 7840U (Zen 4 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA3 780M. Supports up to 64GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 118 × 110 × 48mm (0.62L). Uses a Brick PSU (120W), 15W TDP.

CPU & Performance

CPUr7 7840U

GenerationZen 4

P-Cores8

Threads16

Single-core71

Multi-core37

Socket0

GPU

GPURDNA3 780M

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

iGPU FP324300

RAM

Max RAM64GB

RAM slots2

Max speed5600 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots1

Gen4 x41

2.5" SATA1

SD cardNo

Ports & Connectivity

USB4 40Gbps1

Max displays4

Network

Max Ethernet2G

2.5G ports1

1G ports1

vProN

Physical

Dimensions118 × 110 × 48 mm

Volume0.62L

Fan size80mm

Warranty1 yr

Power

TDP15W

PSU typeBrick

PSU120W

Notes

Two USB4 half speed ports because they can only do 4k 60hz and not 8k 60hz

Discover More

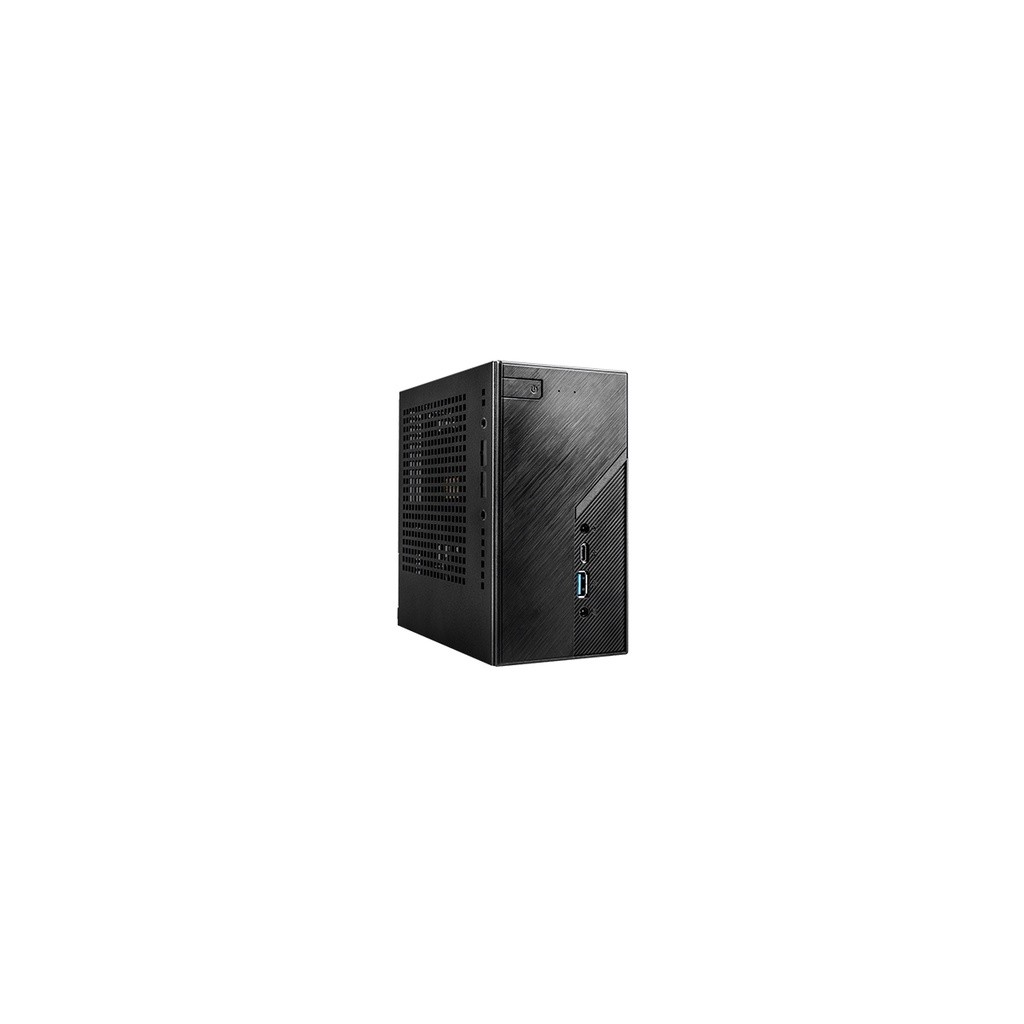

Asrock DeskMini B660W 14700

DeskMini B660W 14700

Asrock DeskMini B660W 14700 features Intel i7 14700, 64GB RAM.

CPU Intel i7 14700

Cores / Threads 8 / 28

GPU Intel Intel UHD 770

RAM 64GB / 2slots

Speed 3200 MT/s

Drives 4 (2 NVMe)

Ethernet 1 (1G)

Size 155×155×80mm

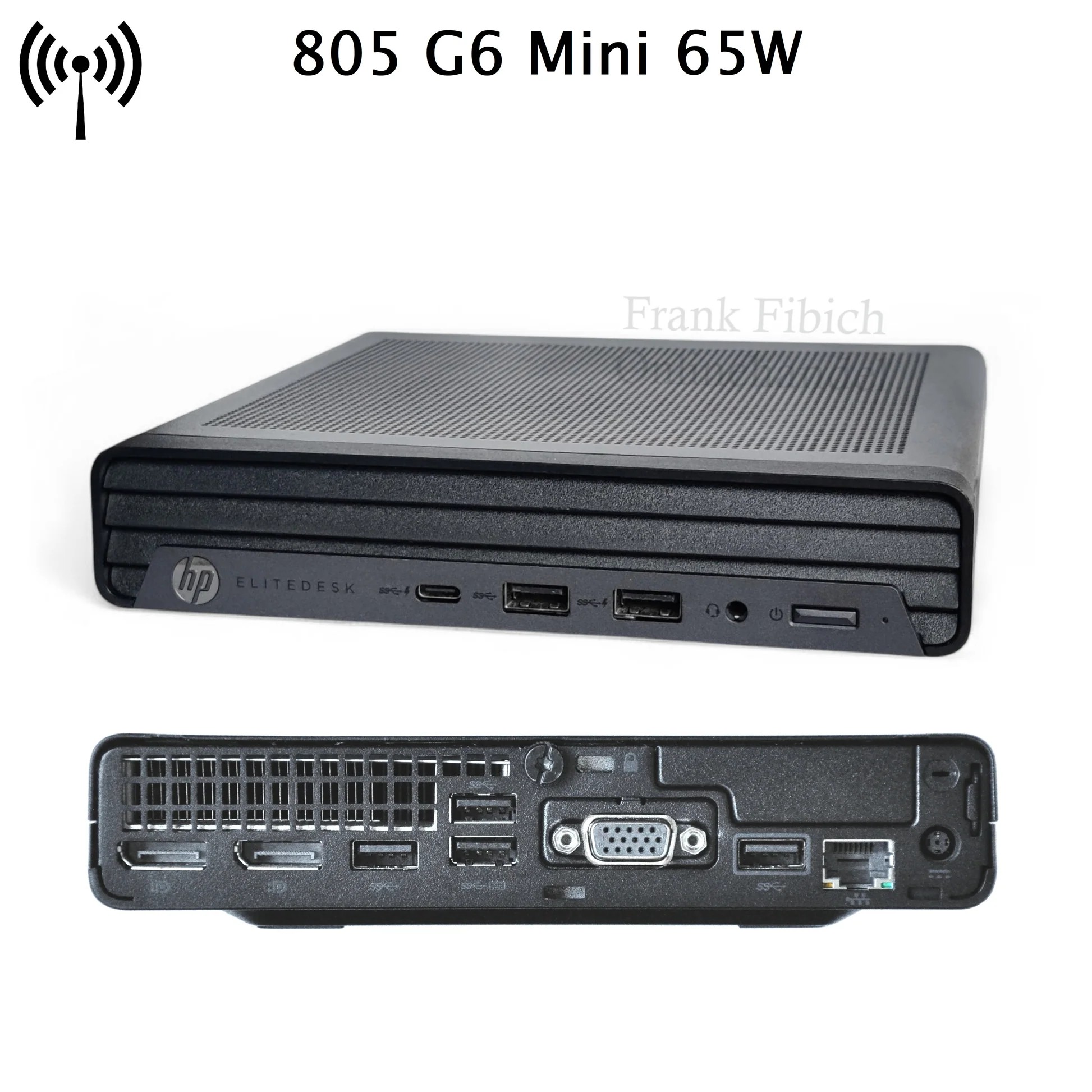

HP EliteDesk 805 G6
