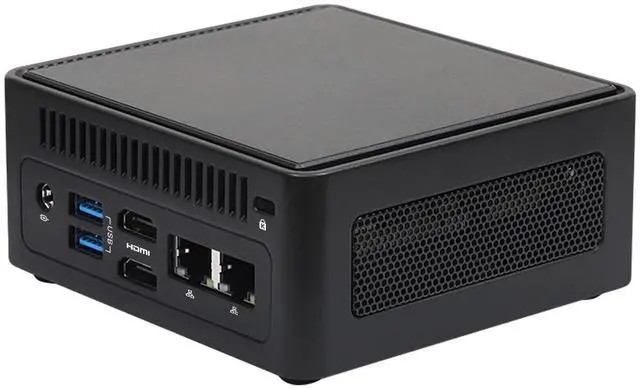

Asrock
4x4 Box AI340
CPU r5 340
GPU RDNA3.5 840M
Max RAM 96GB
Drives 2
From $500
Seller Newegg
The Asrock 4x4 Box AI340 is a mini PC powered by the AMD r5 340 (Zen 5 gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA3.5 840M. Supports up to 96GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Connectivity includes USB4 40Gbps, HDMI 2.1. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 118 × 110 × 49mm (0.64L). Uses a Brick PSU (90W), 15W TDP.
CPU & Performance
CPUr5 340
GenerationZen 5
P-Cores6
Threads12
Single-core70
Multi-core30
Socket0
GPU
GPURDNA3.5 840M
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM96GB
RAM slots2
Max speed5600 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots2
Gen4 x42
SD cardNo
Ports & Connectivity
HDMI 2.12
USB4 40Gbps1
Max displays4
Network
Max Ethernet2G
2.5G ports1
1G ports1
vProN
Physical
Dimensions118 × 110 × 49 mm
Volume0.64L
Fan size80mm
Warranty2 yr
Power
TDP15W
PSU typeBrick
PSU90W
Discover More

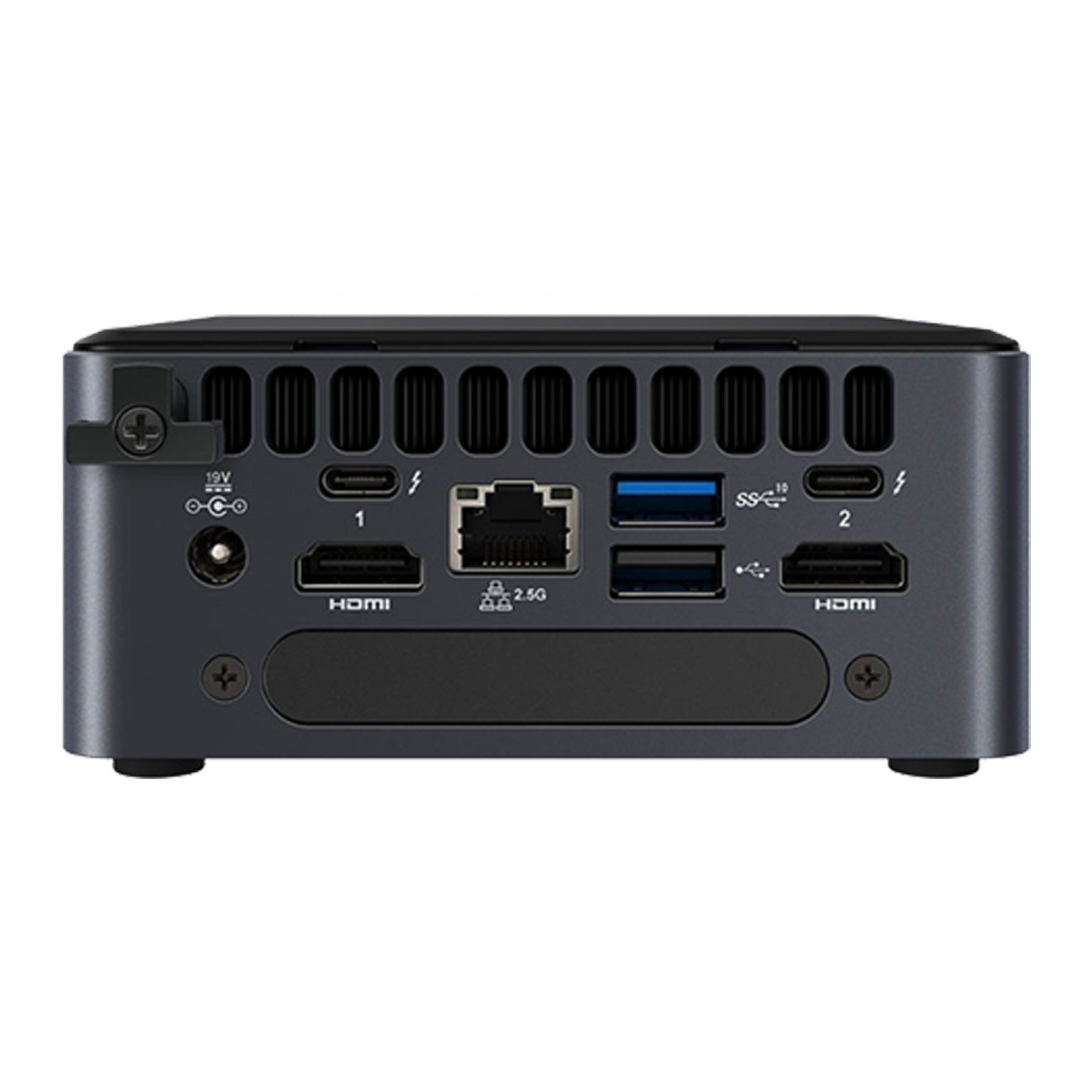

Simply NUC
CMCM2FB i5 Elk
$710
Simply NUC CMCM2FB i5 Elk features Intel i5 1135G7, 64GB RAM.
CPU Intel i5 1135G7
Cores / Threads 4 / 8
Socket Soldered
GPU Intel Iris Xe 80EU
RAM 64GB / 2slots
Speed 3200 MT/s

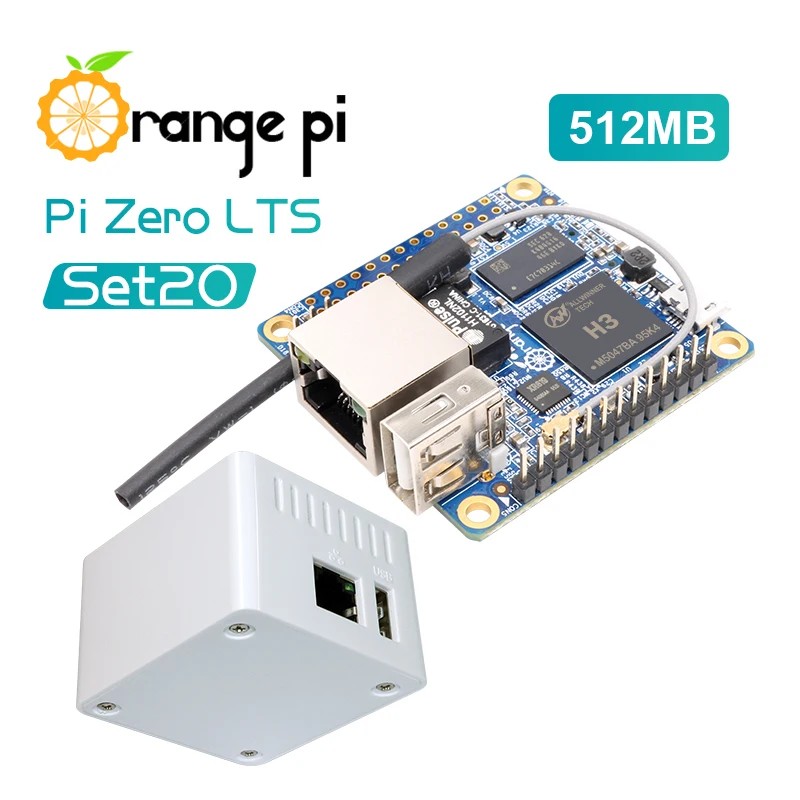

Orange Pi
Pi Zero H3 0.25GB
Orange Pi Pi Zero H3 0.25GB features ARM ARM H3, 0.25GB RAM.
CPU ARM ARM H3
Cores / Threads 4 / 4
Socket Soldered
GPU ARM Mali 400 MP2
RAM 0.25GB

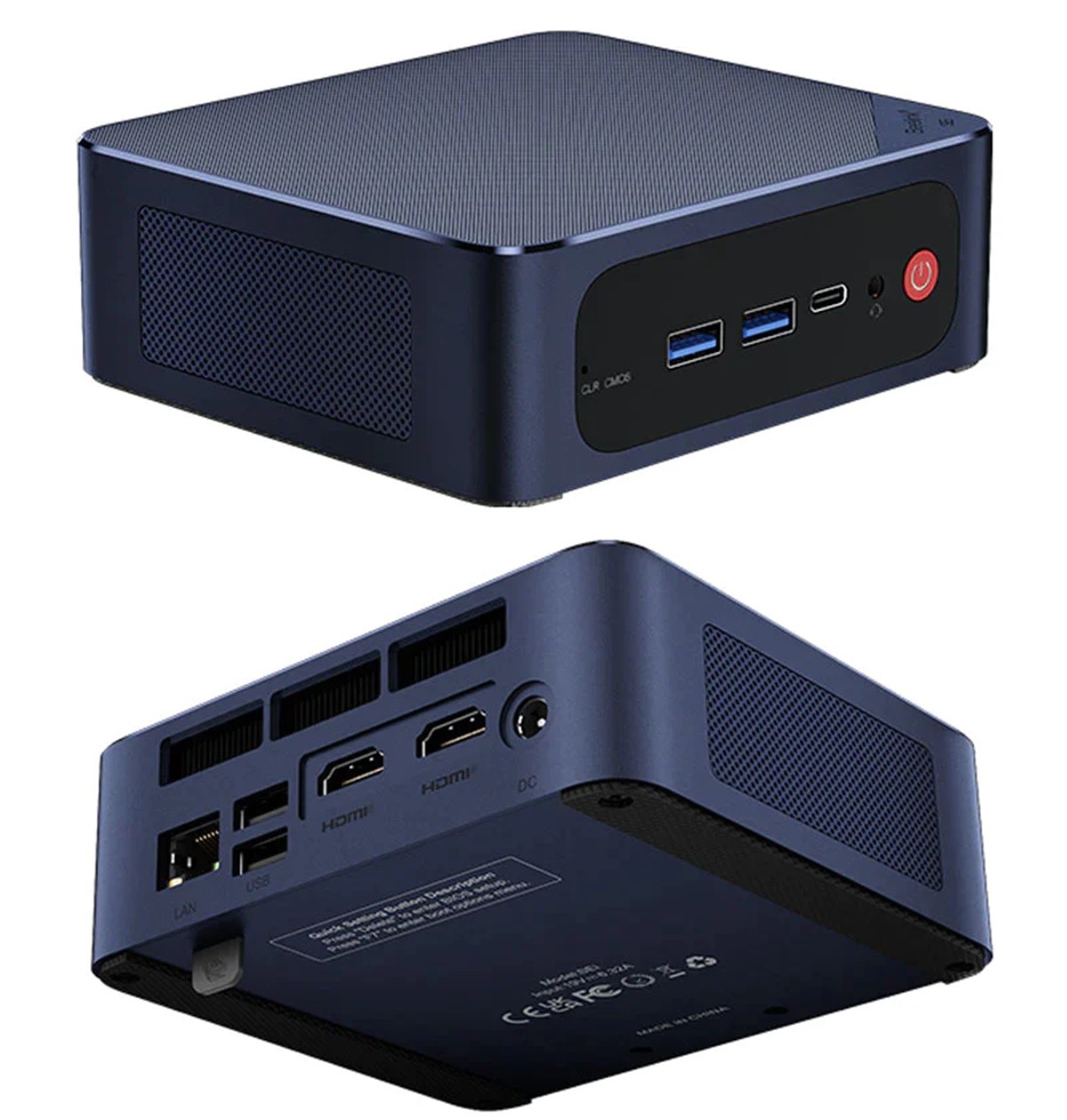

Beelink
