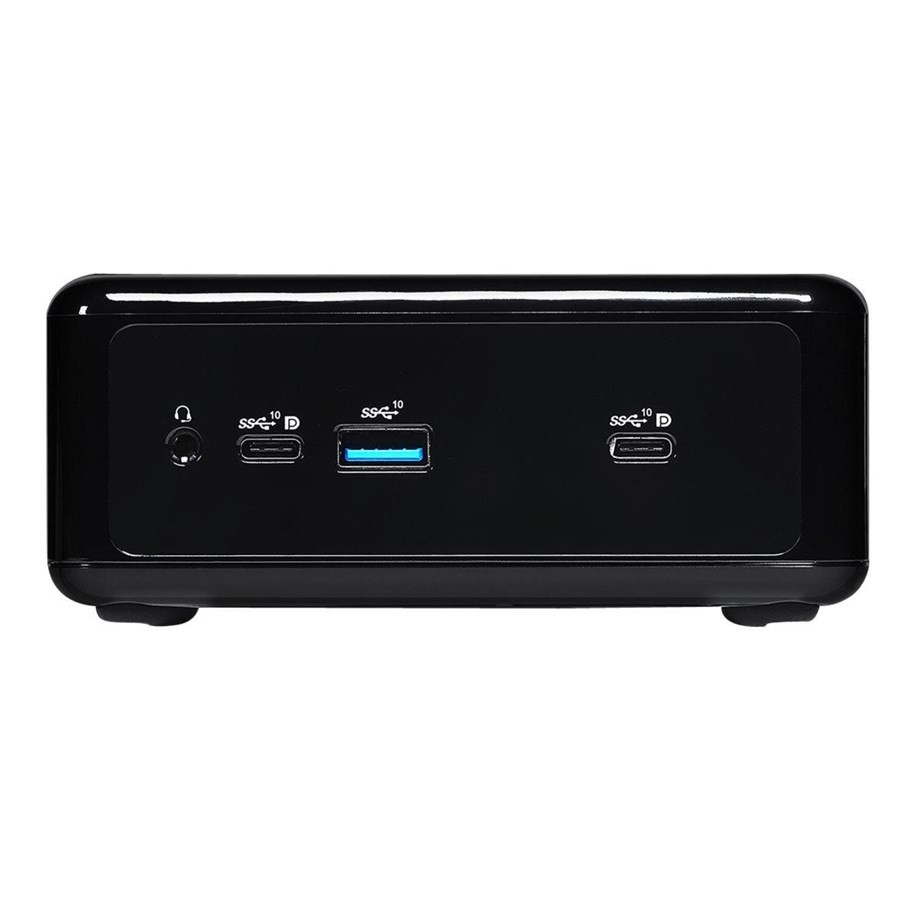

Asrock
4x4 box 5300U
CPU r3 5300U
GPU Vega 6
Max RAM 64GB
Drives 2
The Asrock 4x4 box 5300U is a mini PC powered by the AMD r3 5300U (Zen 2+ gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 6. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 118 × 110 × 48mm (0.62L). Uses a Brick PSU (90W), 15W TDP.
CPU & Performance
CPUr3 5300U
GenerationZen 2+
P-Cores4
Threads8
Single-core47
Multi-core14
Socket0
GPU
GPUVega 6
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays4
Network
Max Ethernet2G
2.5G ports1
1G ports1
vProN
Physical
Dimensions118 × 110 × 48 mm
Volume0.62L
Fan size80mm
Warranty1 yr
Power
TDP15W
PSU typeBrick
PSU90W
Discover More
Trigkey
KEY N95
$120
Trigkey KEY N95 features Intel Celeron N95, 16GB RAM, offering compact 0.53L design.
CPU Intel Celeron N95
Cores / Threads – / 4
Socket Soldered
GPU Intel Iris Xe 16EU
RAM 16GB / 1slot
Speed 3200 MT/s
Drives 2 (2 NVMe)
Ethernet 2 (1G)
PSU Custom
Size 120×120×37mm
Vol 0.53L
HP
Z2 Mini G4
HP Z2 Mini G4 features Intel Xeon E-2124G, 64GB RAM, offering ECC support.
CPU Intel Xeon E-2124G
Cores / Threads 4 / 4
Socket LGA1151
GPU Intel Intel UHD P630
RAM 64GB / 2slots
Speed 2666 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (1G)
PSU Brick
Size 216×216×58mm
Vol 2.71L

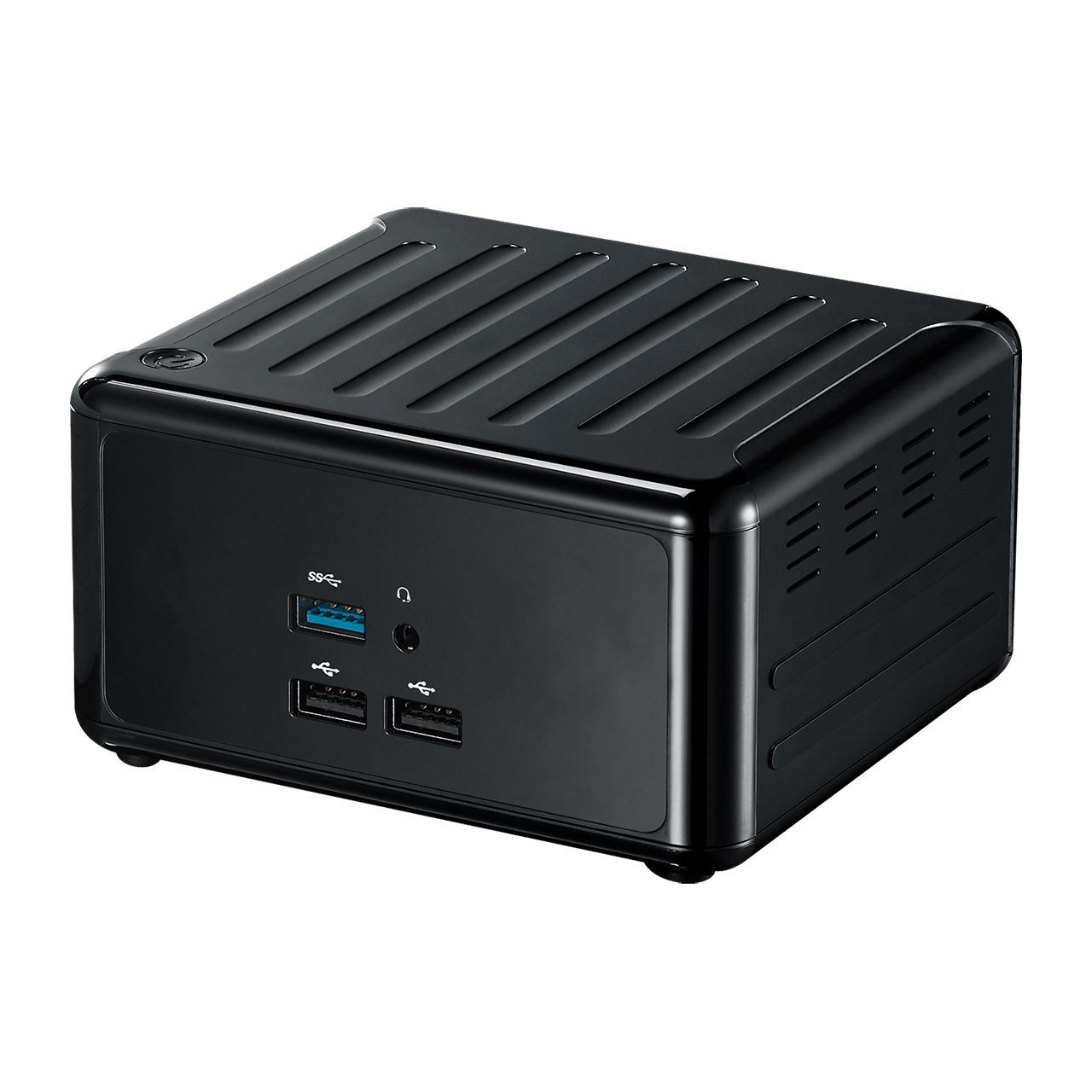

Asrock
