Asrock
4x4 box V1000M
CPU V1000 V1605B
GPU Vega 8
Max RAM 32GB
Drives 2
From $610
Seller Ebay
The Asrock 4x4 box V1000M is a mini PC powered by the AMD V1000 V1605B (Zen 1 gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 8. Supports up to 32GB of RAM across 2 slots at 2400 MT/s with ECC support. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 2 Ethernet ports (up to 1G). Dimensions: 119 × 110 × 67mm (0.88L). Uses a Brick PSU, 15W TDP.
CPU & Performance
CPUV1000 V1605B
GenerationZen 1
P-Cores4
Threads8
Single-core38
Multi-core10
Socket0
GPU
GPUVega 8
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2400 MT/s
ECC supportYes
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet2G
1G ports2
vProN
Physical
Dimensions119 × 110 × 67 mm
Volume0.88L
Fan size55mm
Warranty1 yr
Power
TDP15W
PSU typeBrick
Discover More

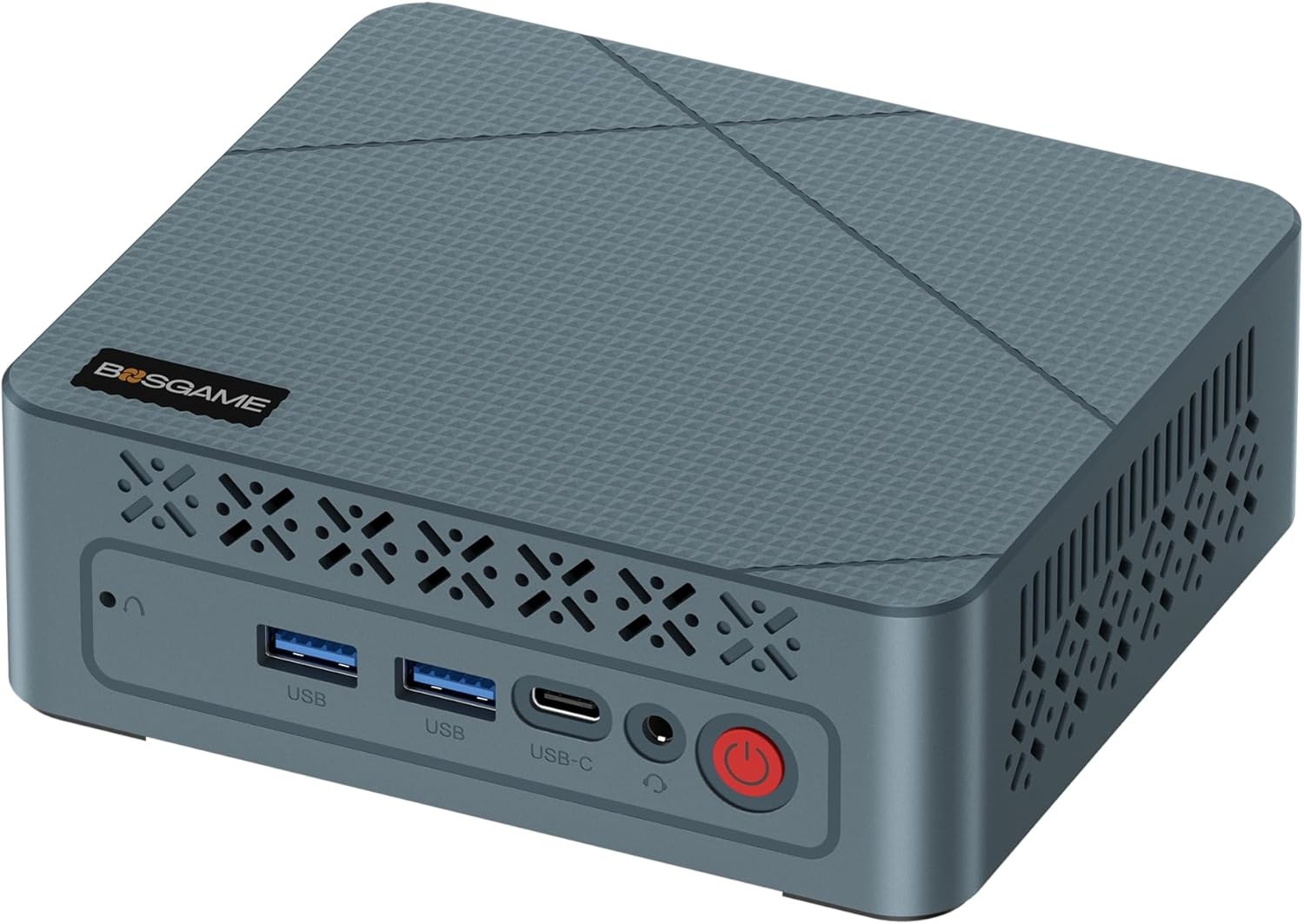

Bosgame
E3 N150
$55
Bosgame E3 N150 features Intel Celeron N150, 16GB RAM, offering compact 0.60L design.
CPU Intel Celeron N150
Cores / Threads – / 4
Socket Soldered
GPU Intel Iris Xe 24EU
RAM 16GB / 1slot
Speed 2666 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (2.5G)
Size 126×113×42mm
Vol 0.6L

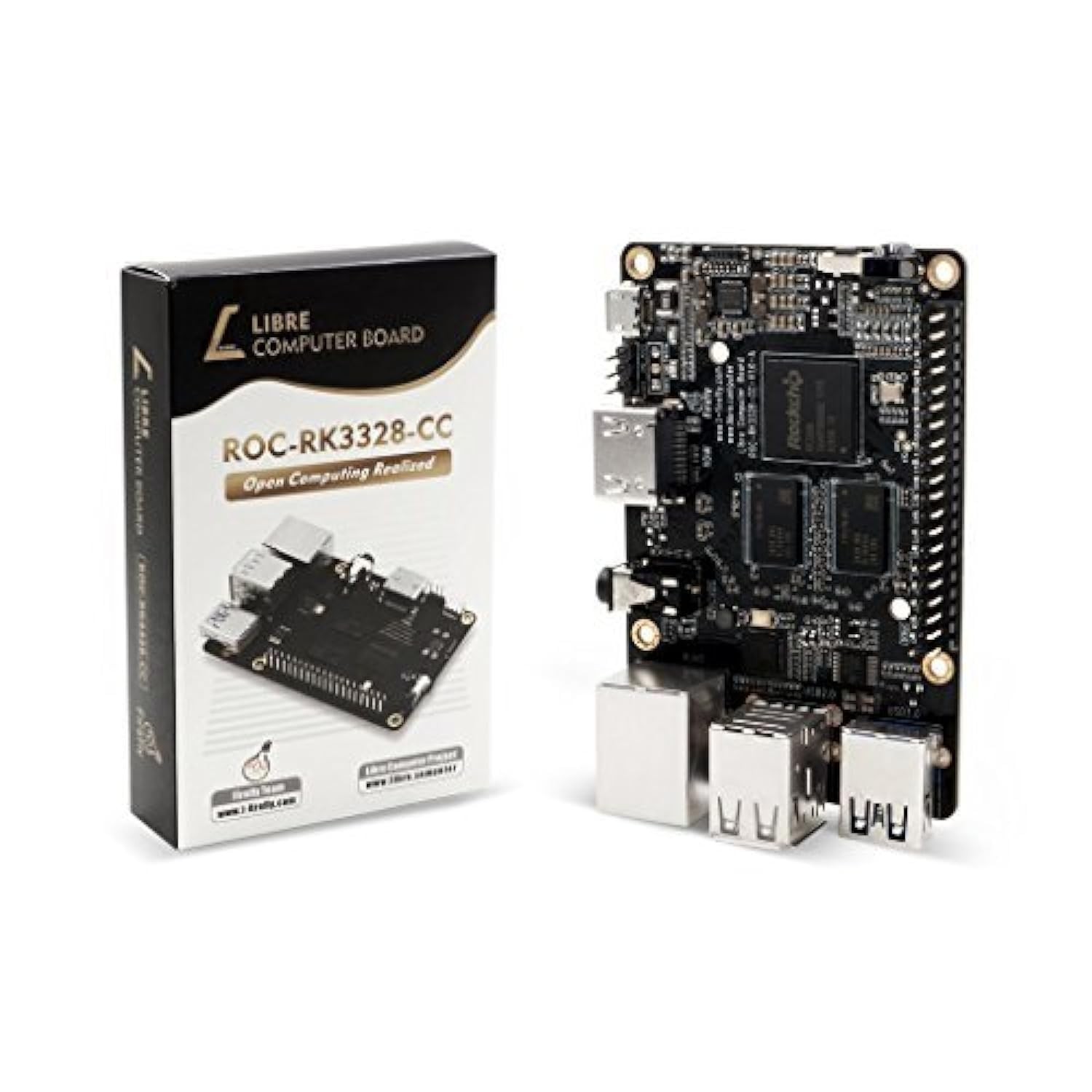

Libre
