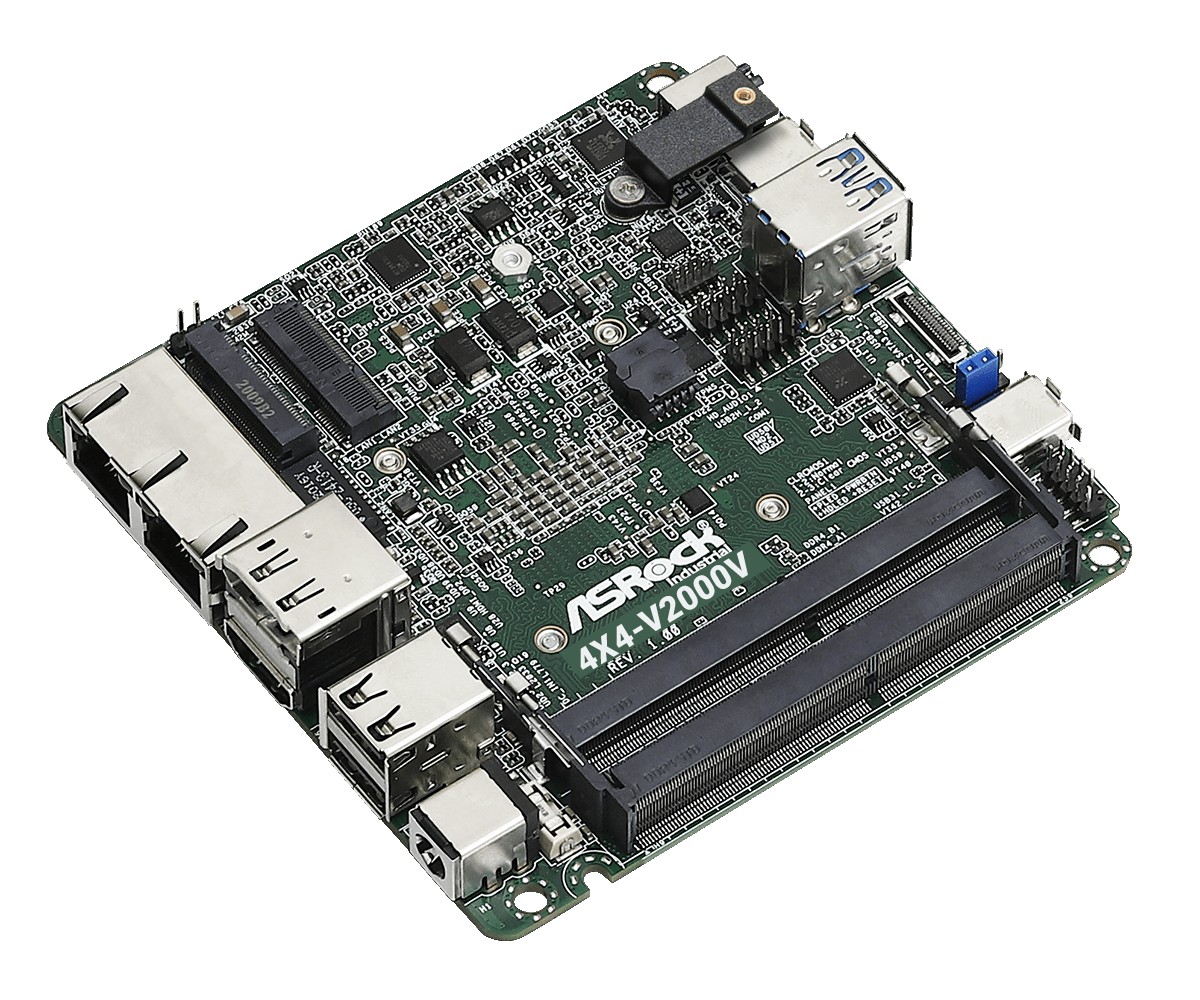

Asrock
4x4 box V2000V
CPU V1000 V2516
GPU Vega 6
Max RAM 64GB
Drives 2
The Asrock 4x4 box V2000V is a mini PC powered by the AMD V1000 V2516 (Zen 2 gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 6. Supports up to 64GB of RAM across 2 slots at 2400 MT/s with ECC support. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 118 × 110 × 48mm (0.62L). Uses a Brick PSU, 15W TDP.
CPU & Performance
CPUV1000 V2516
GenerationZen 2
P-Cores6
Threads12
Single-core48
Multi-core19
Socket0
GPU
GPUVega 6
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed2400 MT/s
ECC supportYes
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet2G
2.5G ports1
1G ports1
vProN
Physical
Dimensions118 × 110 × 48 mm
Volume0.62L
Fan size55mm
Warranty1 yr
Power
TDP15W
PSU typeBrick
