DeskMeet B660 12400F

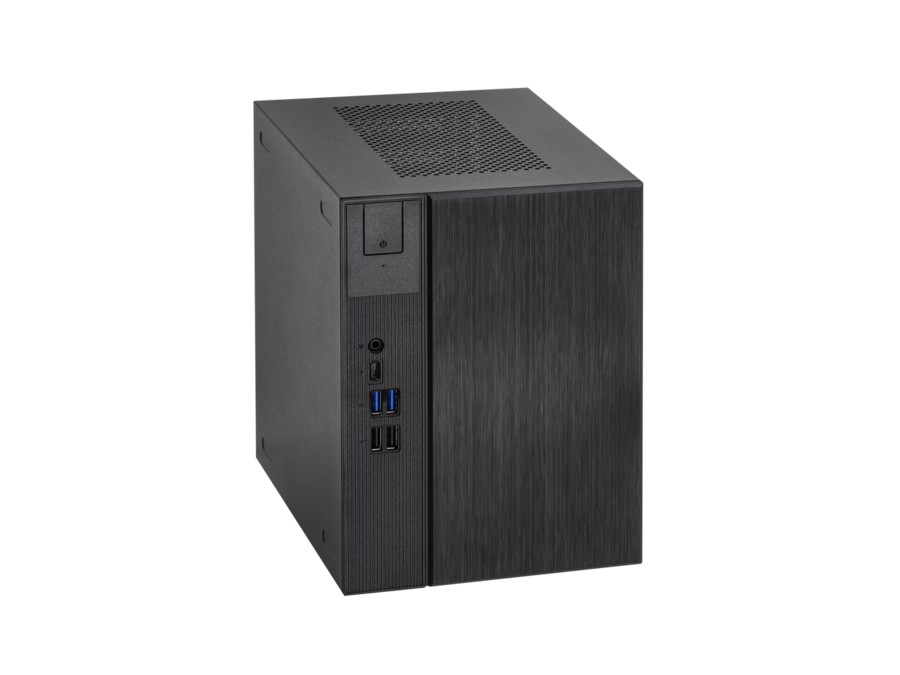

The Asrock DeskMeet B660 12400F is a mini PC powered by the Intel i5 12400F (12th gen). It features 6 performance cores and 12 threads and a LGA1700 socket. Graphics are handled by the discrete Desktop GPU Slot. Supports up to 128GB of RAM across 4 slots at 3200 MT/s. Storage capacity of up to 4 drives including 2 NVMe, 1× 3.5" SATA and 2× 2.5" SATA. Connectivity includes HDMI 2.1. Networking features 1 Ethernet port (up to 1G). Dimensions: 219 × 218 × 168mm (8.02L). Uses a SFX PSU (500W), 65W TDP.
CPU & Performance
GPU
RAM
Storage
Ports & Connectivity
Network
Physical
Power
Notes
2.5 inch drives can be swapped for 3.5 inch drive, fits up to a 3060 Ti, there is a third sata connector for a custom third 2.5" drive mount. April 2: I made a mistake and missed a m.2 NVMe drive on the back of mobo, HDMI 2.1 requires discrete GPU to be added
Discover More

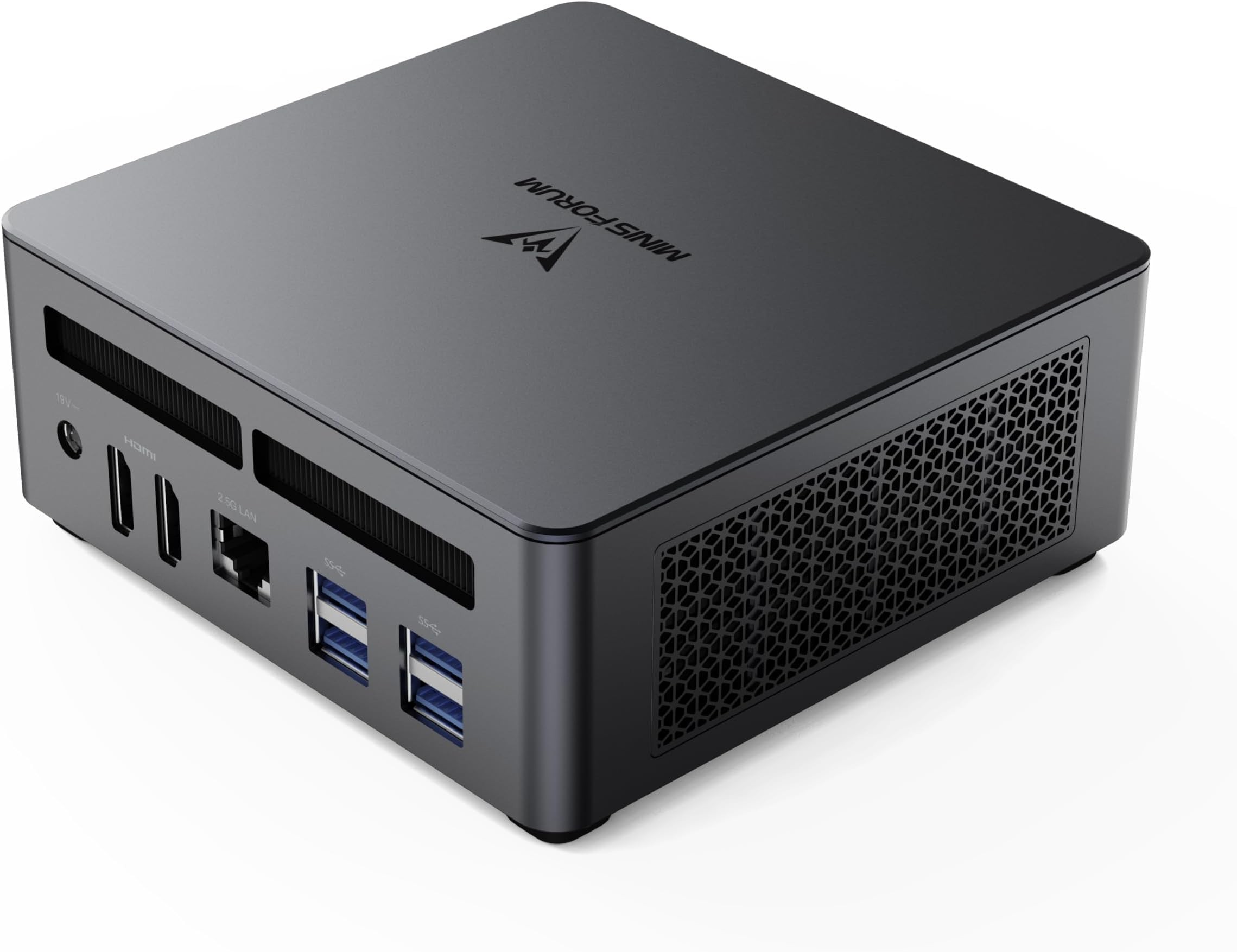

UM790 Pro
Minisforum UM790 Pro features AMD r9 7940HS, 64GB RAM, offering USB4 and compact 0.85L design.

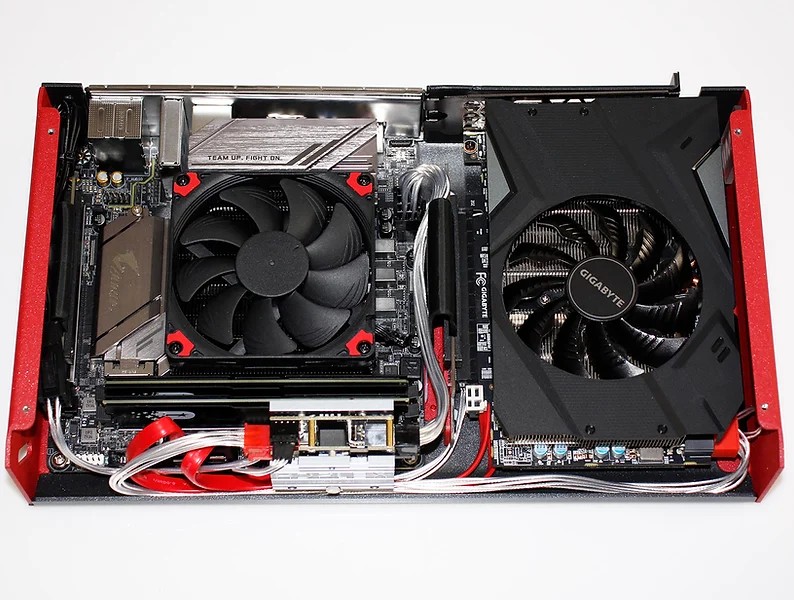

SLM1 ITX
