DeskMeet B660 13700
The Asrock DeskMeet B660 13700 is a mini PC powered by the Intel i7 13700 (13th gen). It features 8 performance cores and 24 threads and a LGA1700 socket. Graphics are handled by the integrated Intel Intel UHD 770. Supports up to 128GB of RAM across 4 slots at 3200 MT/s. Storage capacity of up to 4 drives including 2 NVMe, 1× 3.5" SATA and 2× 2.5" SATA. Connectivity includes HDMI 2.1. Networking features 1 Ethernet port (up to 1G). Dimensions: 219 × 218 × 168mm (8.02L). Uses a SFX PSU (500W), 65W TDP.
CPU & Performance
GPU
RAM
Storage
Ports & Connectivity
Network
Physical
Power
Notes
2.5 inch drives can be swapped for 3.5 inch drive, fits up to a 3060 Ti, there is a third sata connector for a custom third 2.5" drive mount. April 2: I made a mistake and missed a m.2 NVMe drive on the back of mobo, HDMI 2.1 requires discrete GPU to be added
Discover More
LLN11CRC
Simply NUC LLN11CRC features Intel Celeron 6305E, 64GB RAM.
Pi PC2
Orange Pi Pi PC2 features ARM ARM H5, 1GB RAM, offering ultra-compact 0.10L form factor.

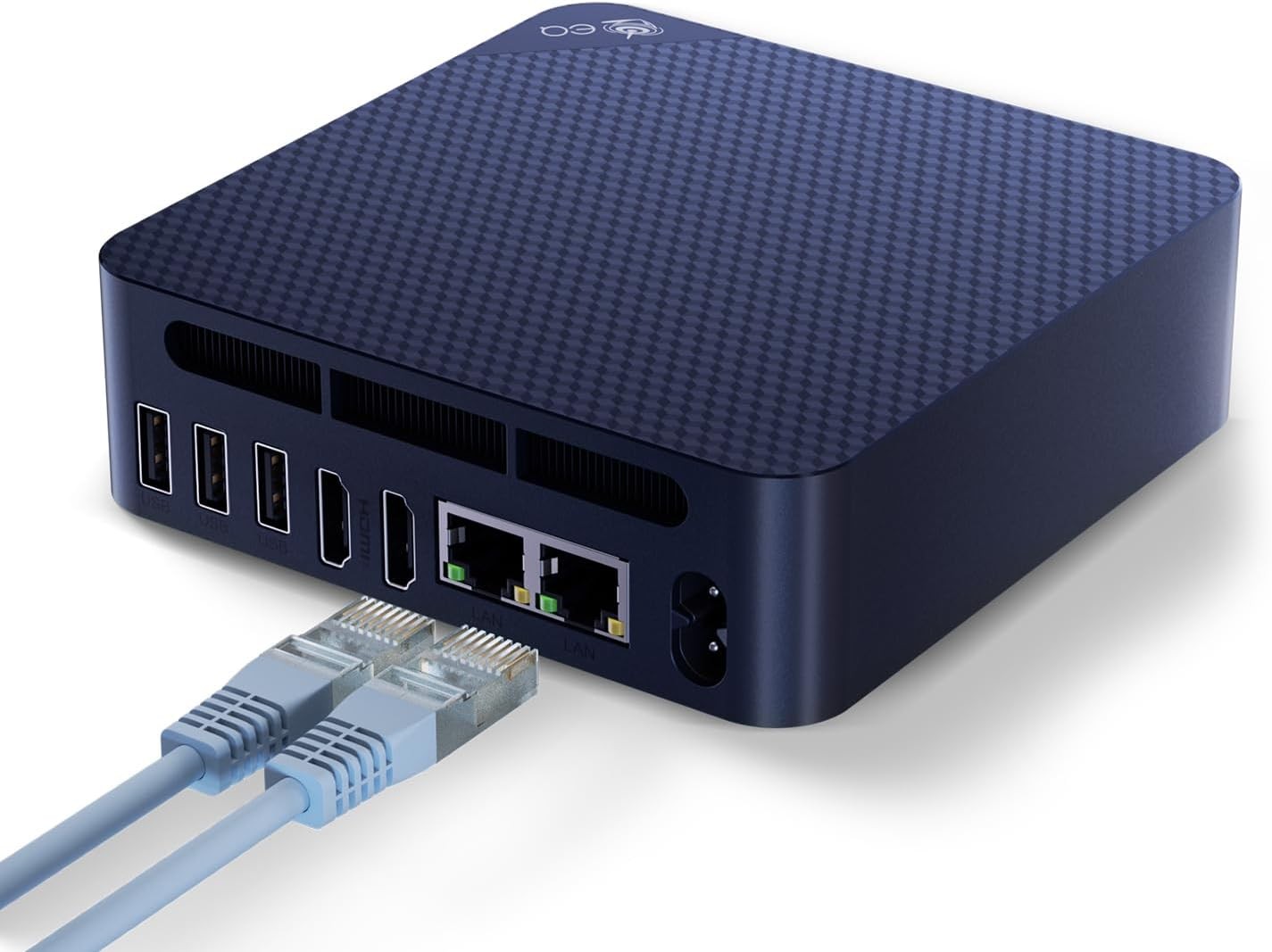

EQ14 2.5G Dual LAN
