DeskMeet B660 14900
The Asrock DeskMeet B660 14900 is a mini PC powered by the Intel i9 14900 (14th gen). It features 8 performance cores and 32 threads and a LGA1700 socket. Graphics are handled by the integrated Intel Intel UHD 770. Supports up to 128GB of RAM across 4 slots at 3200 MT/s. Storage capacity of up to 4 drives including 2 NVMe, 1× 3.5" SATA and 2× 2.5" SATA. Connectivity includes HDMI 2.1. Networking features 1 Ethernet port (up to 1G). Dimensions: 219 × 218 × 168mm (8.02L). Uses a SFX PSU (500W), 65W TDP.
CPU & Performance
GPU
RAM
Storage
Ports & Connectivity
Network
Physical
Power
Notes
2.5 inch drives can be swapped for 3.5 inch drive, fits up to a 3060 Ti, there is a third sata connector for a custom third 2.5" drive mount. April 2: I made a mistake and missed a m.2 NVMe drive on the back of mobo, HDMI 2.1 requires discrete GPU to be added
Discover More
TR5 5600U
REATAN TR5 5600U features AMD r5 5600U, 64GB RAM, offering compact 0.73L design.

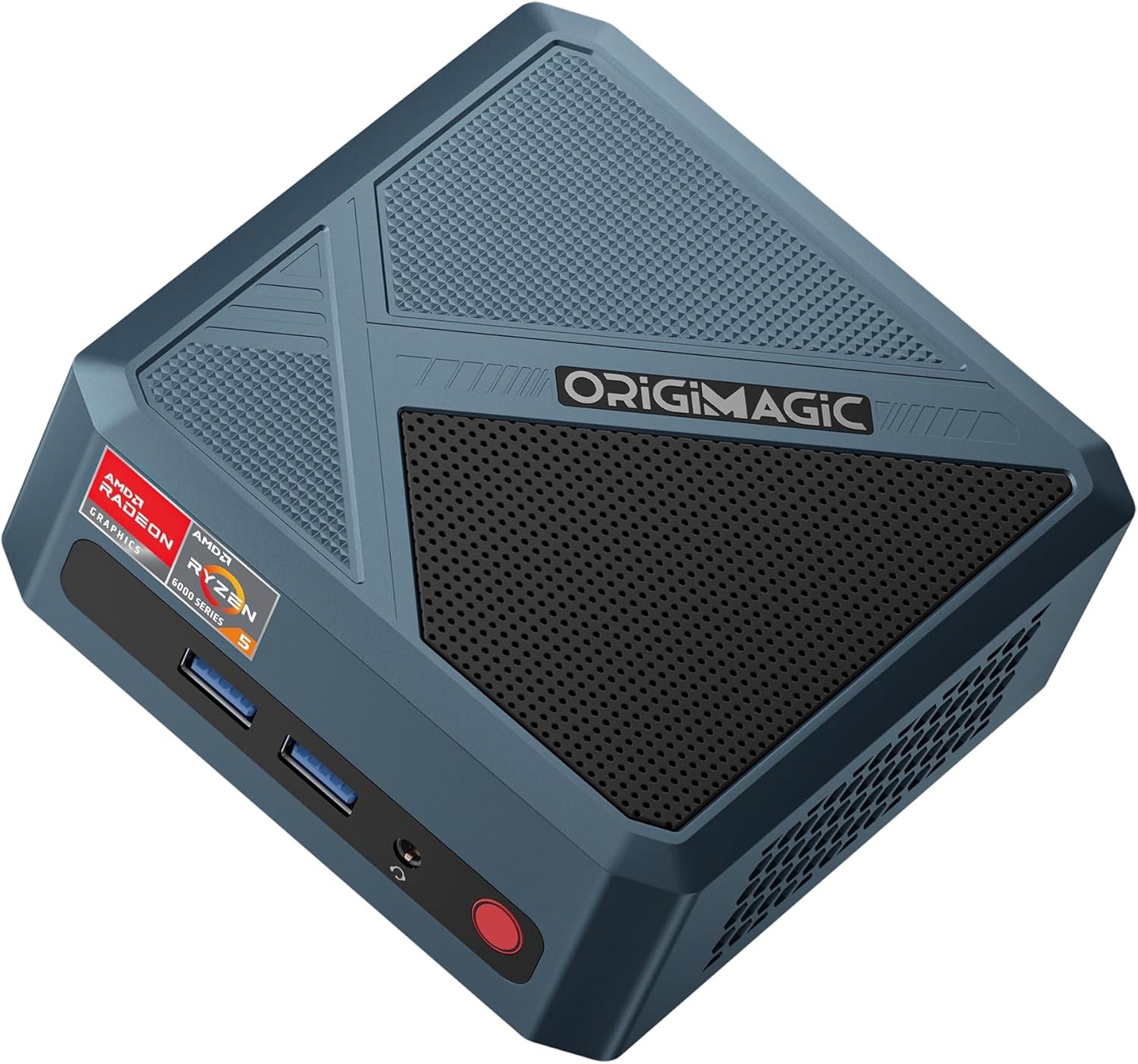

N2 / P5
