Asrock
DeskMini B660W 14700
CPU i7 14700
GPU Intel UHD 770
Max RAM 64GB
Drives 4
From $600
Seller Newegg
The Asrock DeskMini B660W 14700 is a mini PC powered by the Intel i7 14700 (14th gen). It features 8 performance cores and 28 threads and a LGA1700 socket. Graphics are handled by the integrated Intel Intel UHD 770. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 4 drives including 2 NVMe, 2× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 155 × 155 × 80mm (1.92L). Uses a Brick PSU (120W), 65W TDP.
CPU & Performance
CPUi7 14700
Generation14th
P-Cores8
Threads28
Single-core87
Multi-core46
SocketLGA1700
GPU
GPUIntel UHD 770
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives4
NVMe slots2
Gen5 x41
Gen4 x41
2.5" SATA2
SD cardNo
Ports & Connectivity
Max displays4
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions155 × 155 × 80 mm
Volume1.92L
Fan size120mm
Warranty1 yr
Power
TDP65W
PSU typeBrick
PSU120W
Discover More

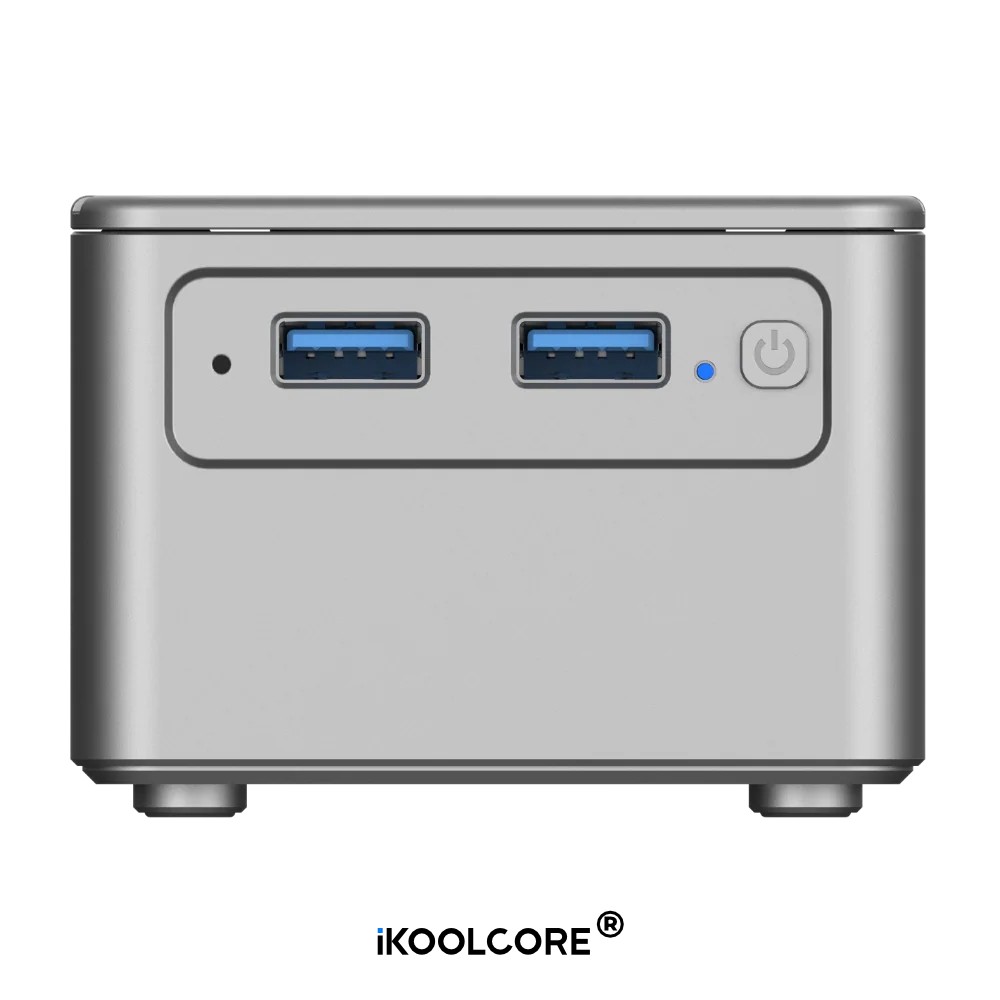

iKoolcore
NUC N6005
CPU Intel Pentium N6005
P-Cores / Threads – / 4
Socket Soldered
GPU Intel Jasper Lake 32EU

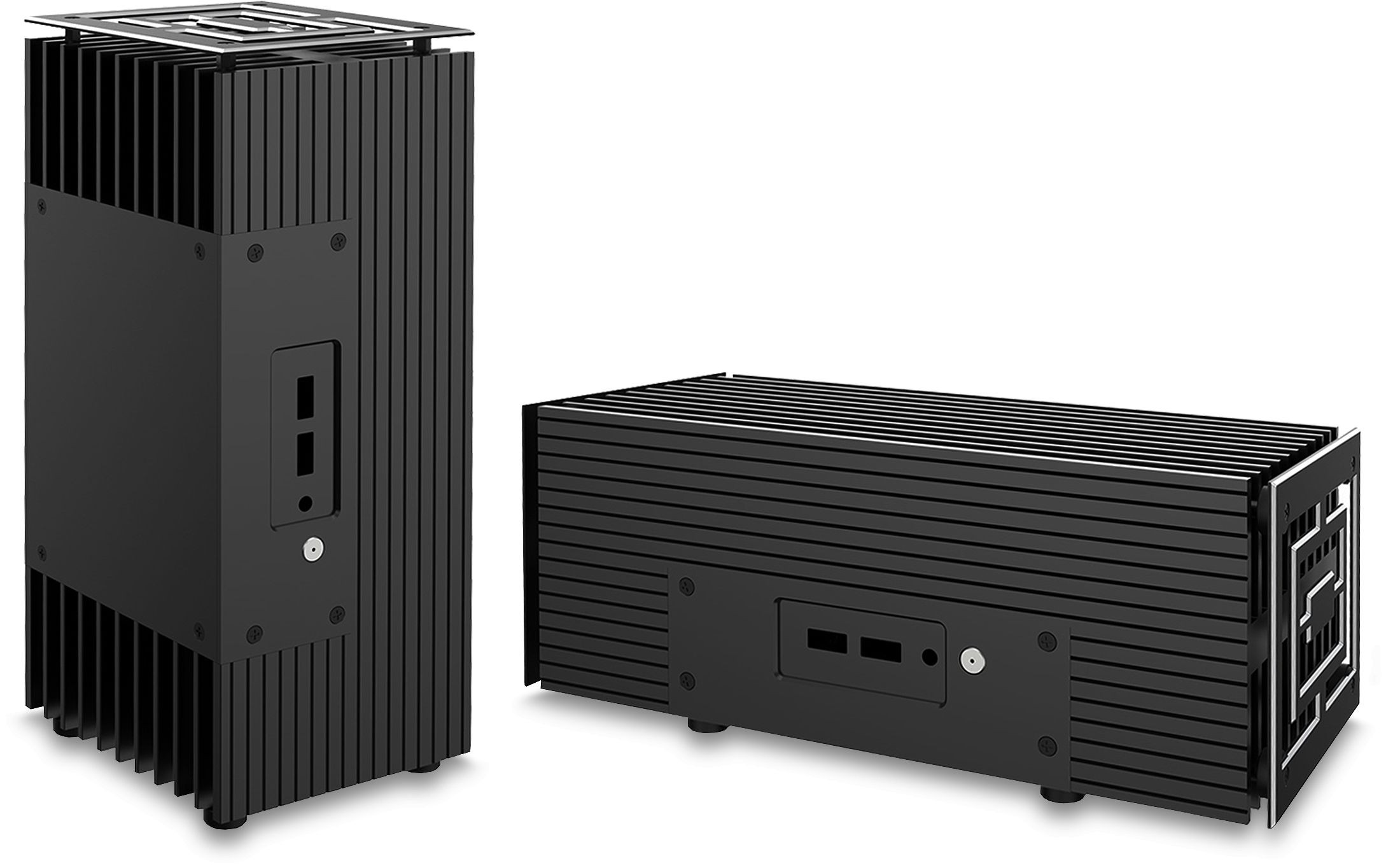

Akasa
