Mini PC DataBase

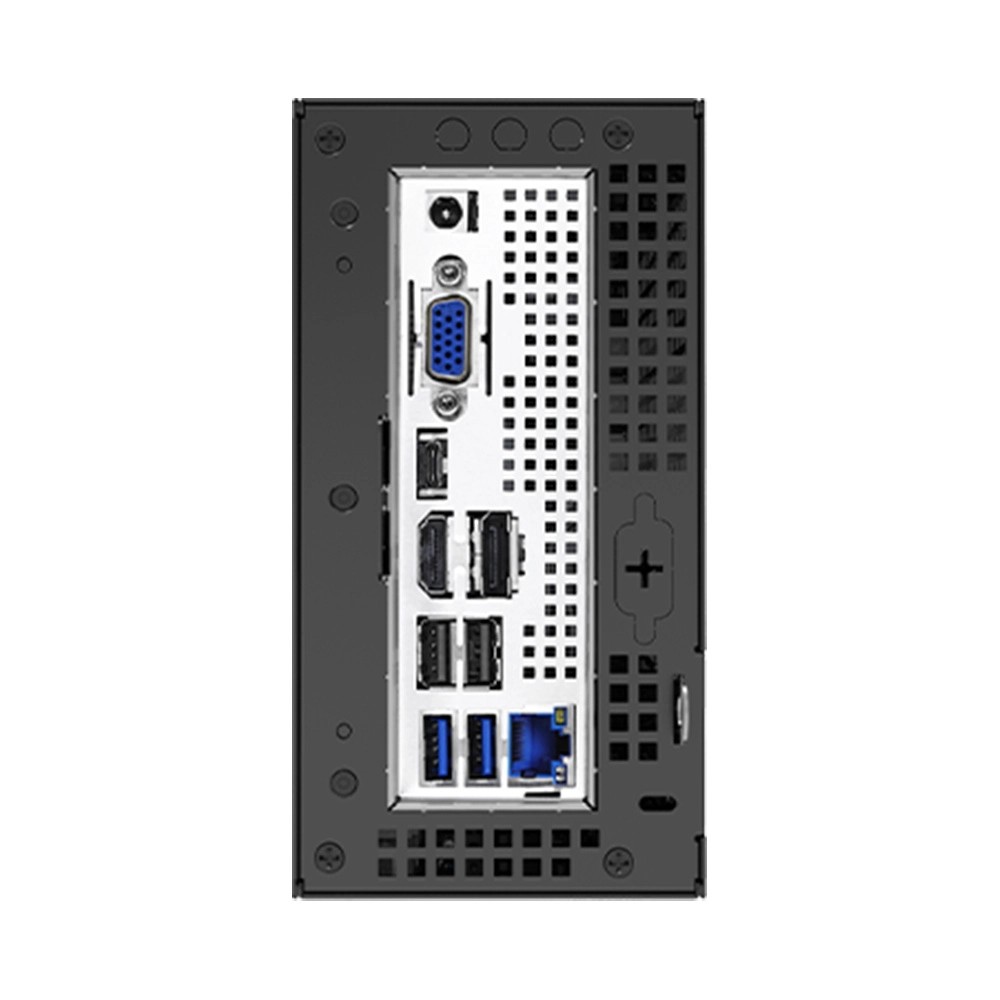

Asrock DeskMini B760 14500

Asrock

DeskMini B760 14500

CPU i5 14500

GPU Intel UHD 770

Max RAM 64GB

Drives 4

From $470

Seller Newegg

The Asrock DeskMini B760 14500 is a mini PC powered by the Intel i5 14500 (14th gen). It features 6 performance cores and 20 threads and a LGA1700 socket. Graphics are handled by the integrated Intel Intel UHD 770. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 4 drives including 2 NVMe, 2× 2.5" SATA. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 155 × 155 × 80mm (1.92L). Uses a Brick PSU (120W), 65W TDP.

CPU & Performance

CPUi5 14500

Generation14th

P-Cores6

Threads20

Single-core80

Multi-core41

SocketLGA1700

GPU

GPUIntel UHD 770

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives4

NVMe slots2

Gen5 x41

Gen4 x41

2.5" SATA2

SD cardNo

Ports & Connectivity

Max displays4

Network

Max Ethernet1G

2.5G ports1

vProN

Physical

Dimensions155 × 155 × 80 mm

Volume1.92L

Fan size120mm

Warranty1 yr

Power

TDP65W

PSU typeBrick

PSU120W

Discover More

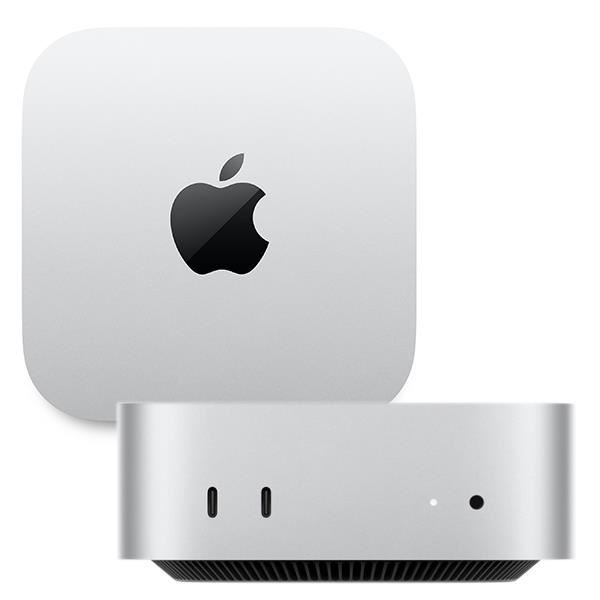

Apple Mac mini M4 Pro 14-Core 24GB 1TB

Mac mini M4 Pro 14-Core 24GB 1TB

Apple Mac mini M4 Pro 14-Core 24GB 1TB features Apple ARM M4 Pro 14 Core, 24GB RAM, offering Thunderbolt 5 and compact 0.81L design.

CPU Apple ARM M4 Pro 14 Core

Cores / Threads 10 / 14

Socket Soldered

GPU Apple M4 Pro 20-core

Speed 7500 MT/s

Ethernet 1 (1G)

Size 127×127×50mm

Maxtang T0-RL50 12450H

T0-RL50 12450H

Maxtang T0-RL50 12450H features Intel i5 12450H, 64GB RAM, offering USB4 and compact 0.94L design.

CPU Intel i5 12450H

Cores / Threads 4 / 12

Socket Soldered

GPU Intel Intel UHD Xe 48EU

RAM 64GB / 2slots

Speed 4800 MT/s

Drives 2 (2 NVMe)

Ethernet 1 (2.5G)

Size 135×127×55mm

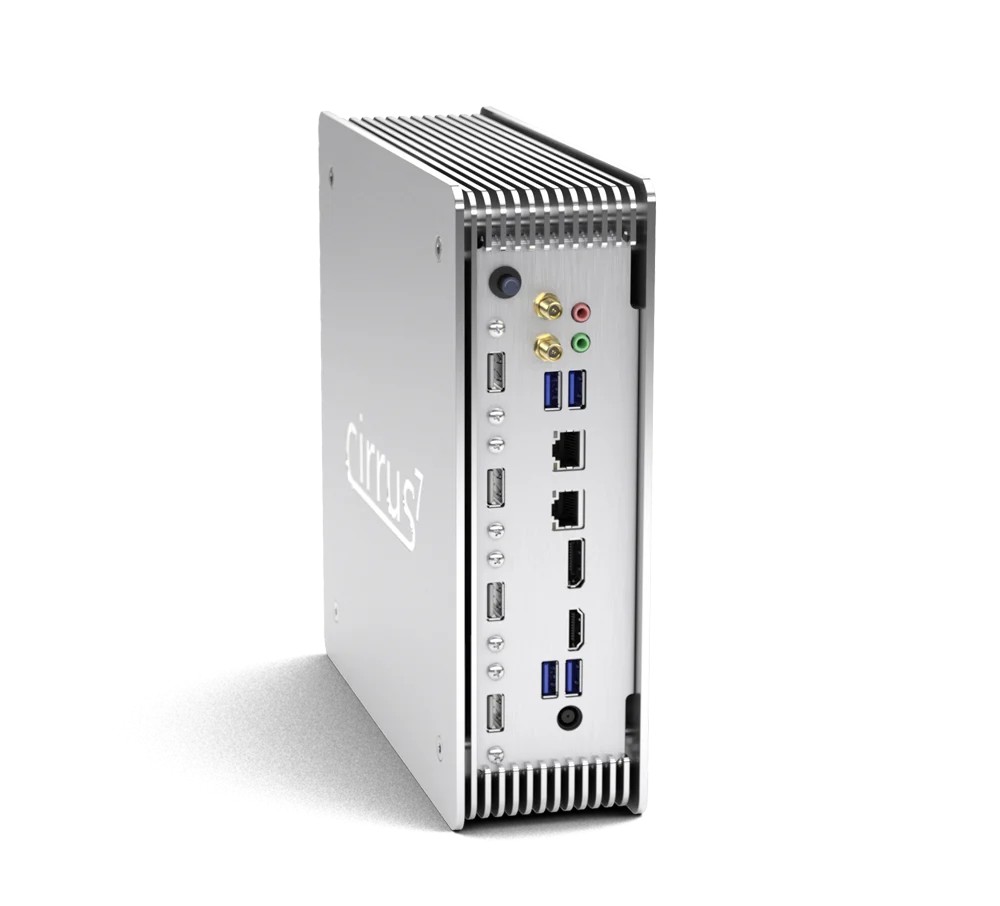

Cirrus 7 Nimbus Z790M 14400T
