Asrock
Mars 5500U
CPU r5 5500U
GPU Vega 7
Max RAM 64GB
Drives 2

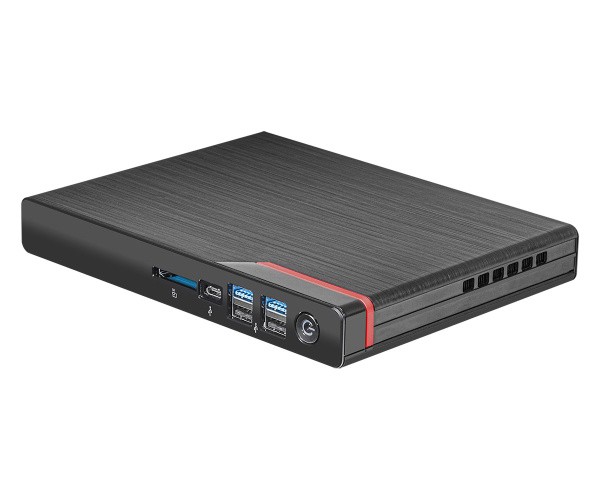

The Asrock Mars 5500U is a mini PC powered by the AMD r5 5500U (Zen 2+ gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 7. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 194 × 150 × 26mm (0.76L). Uses a Brick PSU, 15W TDP.
CPU & Performance
CPUr5 5500U
GenerationZen 2+
P-Cores6
Threads12
Single-core48
Multi-core19
Socket0
GPU
GPUVega 7
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
vProN
Physical
Dimensions194 × 150 × 26 mm
Volume0.76L
Fan size70mm
Warranty1 yr
Power
TDP15W
PSU typeBrick
