Asrock
Mars-i5-1235U
CPU i5 1235U
GPU Iris Xe 80EU
Max RAM 64GB
Drives 2

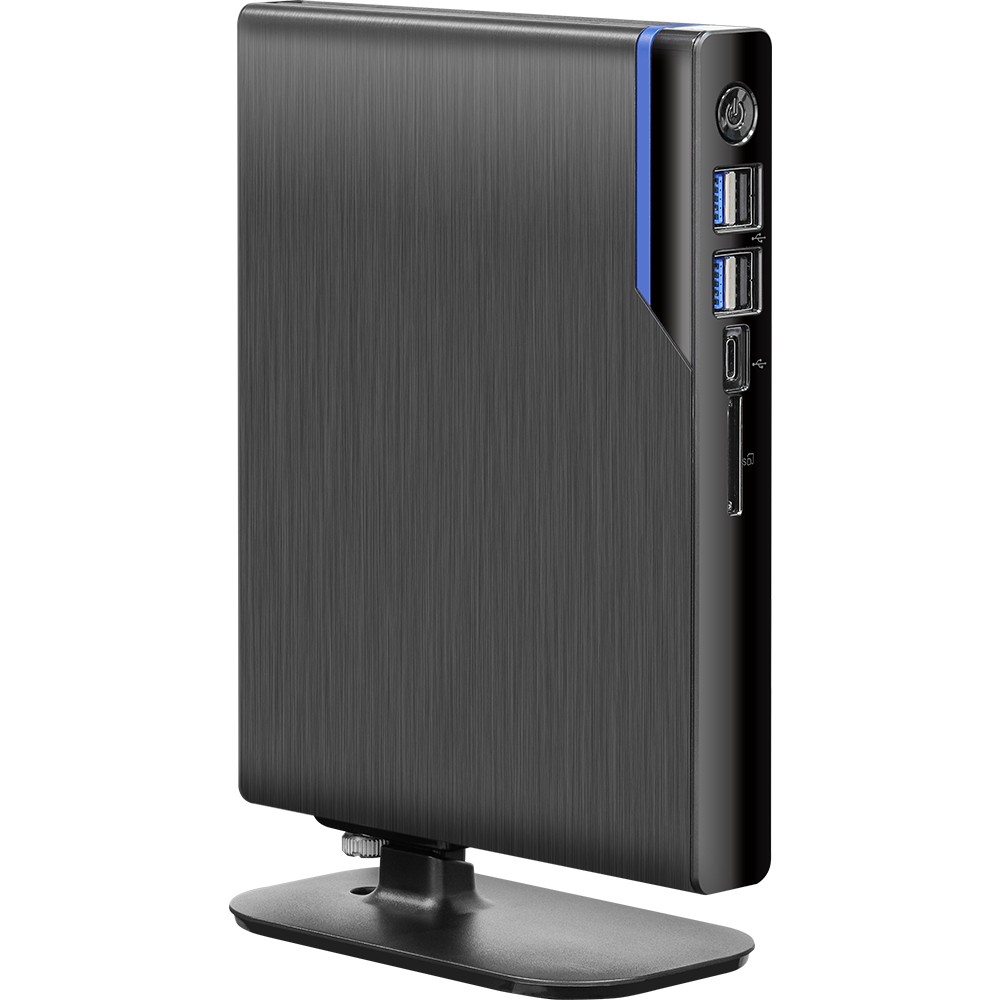

The Asrock Mars-i5-1235U is a mini PC powered by the Intel i5 1235U (12th gen). It features 10 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 1G). Dimensions: 194 × 150 × 26mm (0.76L). Uses a Brick PSU, 15W TDP.
CPU & Performance
CPUi5 1235U
Generation12th
P-Cores10
Threads12
Single-core63
Multi-core20
Socket0
GPU
GPUIris Xe 80EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots2
Gen4 x41
Gen3 x41
SD cardNo
Ports & Connectivity
USB4 40Gbps1
Max displays3
Network
Max Ethernet1G
vProN
Physical
Dimensions194 × 150 × 26 mm
Volume0.76L
Fan size70mm
Warranty1 yr
Power
TDP15W
PSU typeBrick
Discover More
Geekom
AEX8 AI 8945HS
$370
Geekom AEX8 AI 8945HS features AMD r9 8945HS/7940HS, 64GB RAM, offering USB4 and ultra-compact 0.46L form factor.
CPU AMD r9 8945HS/7940HS
Cores / Threads 8 / 16
Socket Soldered
GPU AMD RDNA3 780M
RAM 64GB / 2slots
Speed 5600 MT/s
Drives 2 (1 NVMe)
Ethernet 1 (2.5G)
PSU GaN/Brick
Size 112×112×37mm
Vol 0.46L

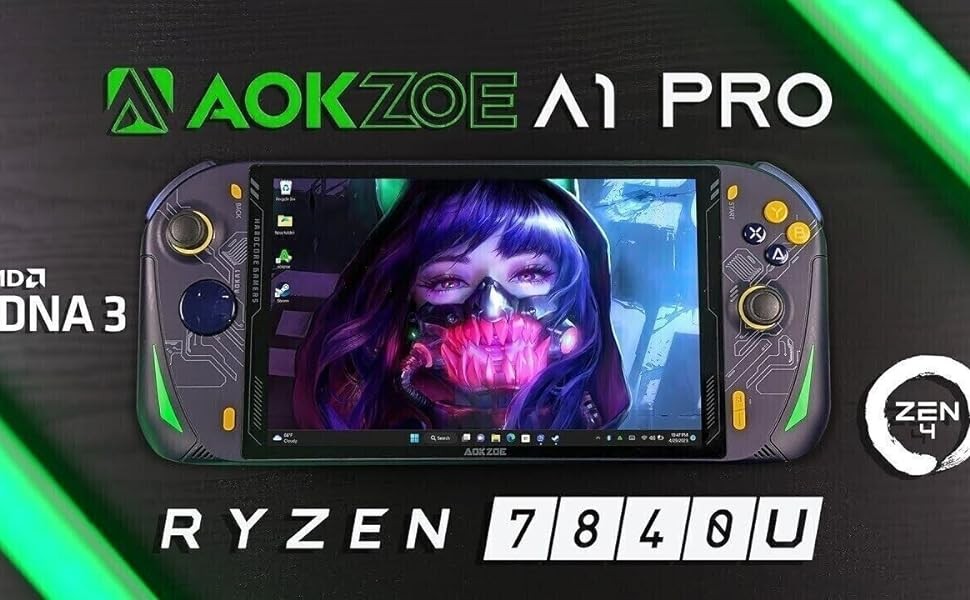

AOKZOE
Announced A1 Pro
AOKZOE Announced A1 Pro features AMD r7 7840U.
CPU AMD r7 7840U
Cores / Threads 8 / 16
Socket Soldered
GPU AMD RDNA3 780M

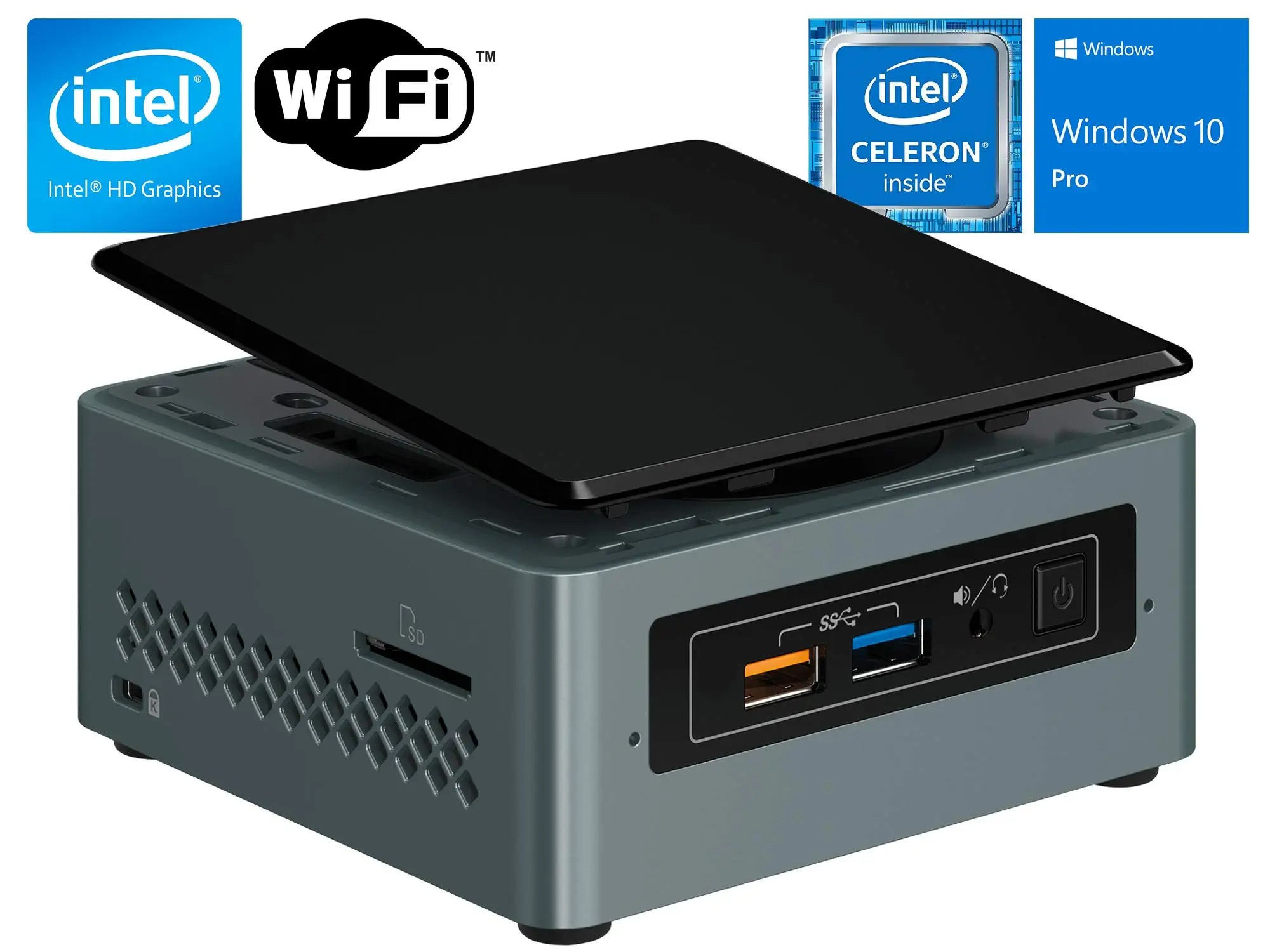

Intel
