Mini PC DataBase

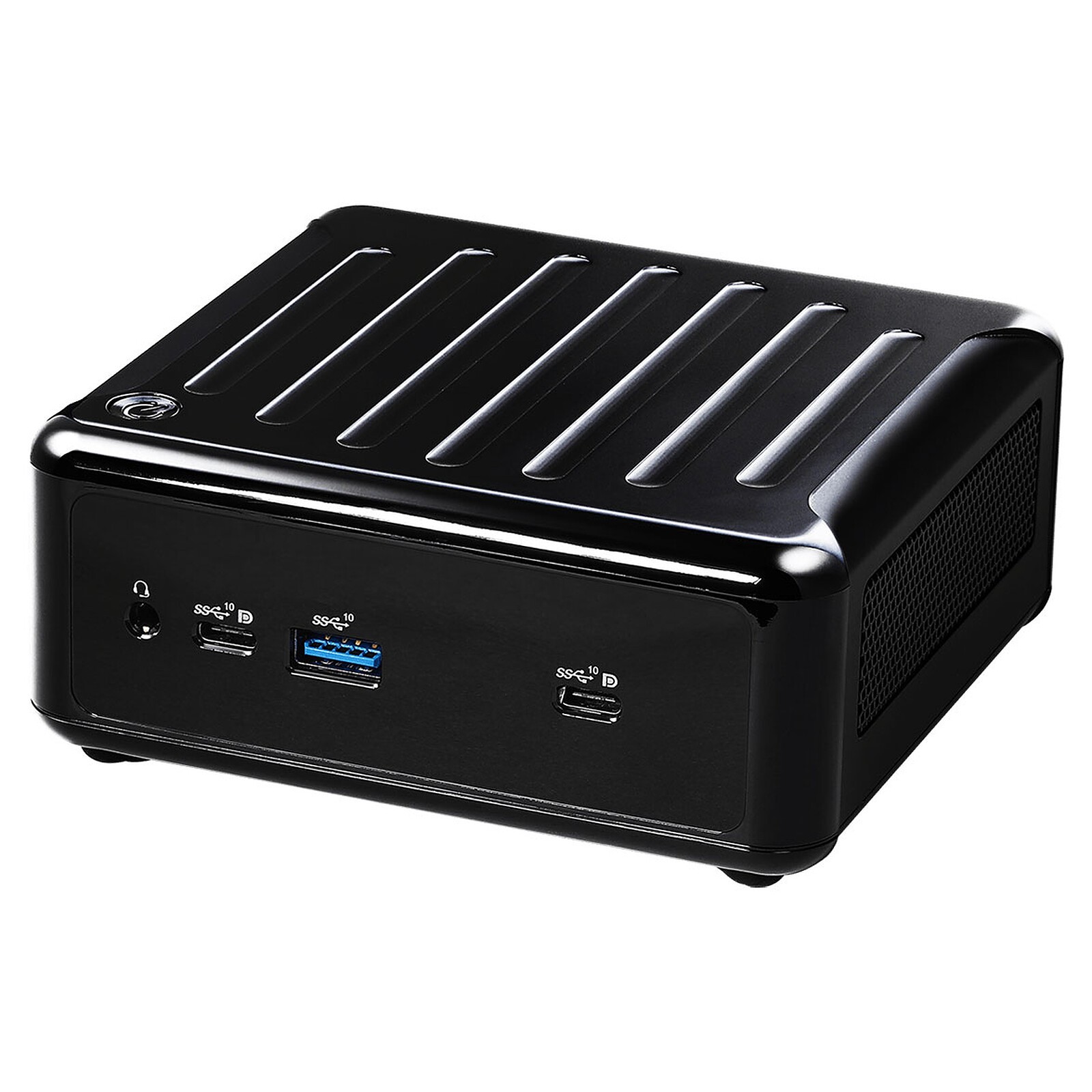

Asrock NUC box 1135G7

Asrock

NUC box 1135G7

CPU i5 1135G7

GPU Iris Xe 80EU

Max RAM 64GB

Drives 2

From $300

Seller Newegg

The Asrock NUC box 1135G7 is a mini PC powered by the Intel i5 1135G7 (11th gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 118 × 110 × 48mm (0.62L). Uses a Brick PSU (90W), 28W TDP.

CPU & Performance

CPUi5 1135G7

Generation11th

P-Cores4

Threads8

Single-core53

Multi-core14

Socket0

GPU

GPUIris Xe 80EU

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots1

Gen4 x41

2.5" SATA1

SD cardNo

Ports & Connectivity

USB4 40Gbps1

Max displays4

Network

Max Ethernet2G

2.5G ports1

1G ports1

vProN

Physical

Dimensions118 × 110 × 48 mm

Volume0.62L

Fan size80mm

Warranty1 yr

Power

TDP28W

PSU typeBrick

PSU90W

Notes

Sep. 16 $435 to $300

Discover More

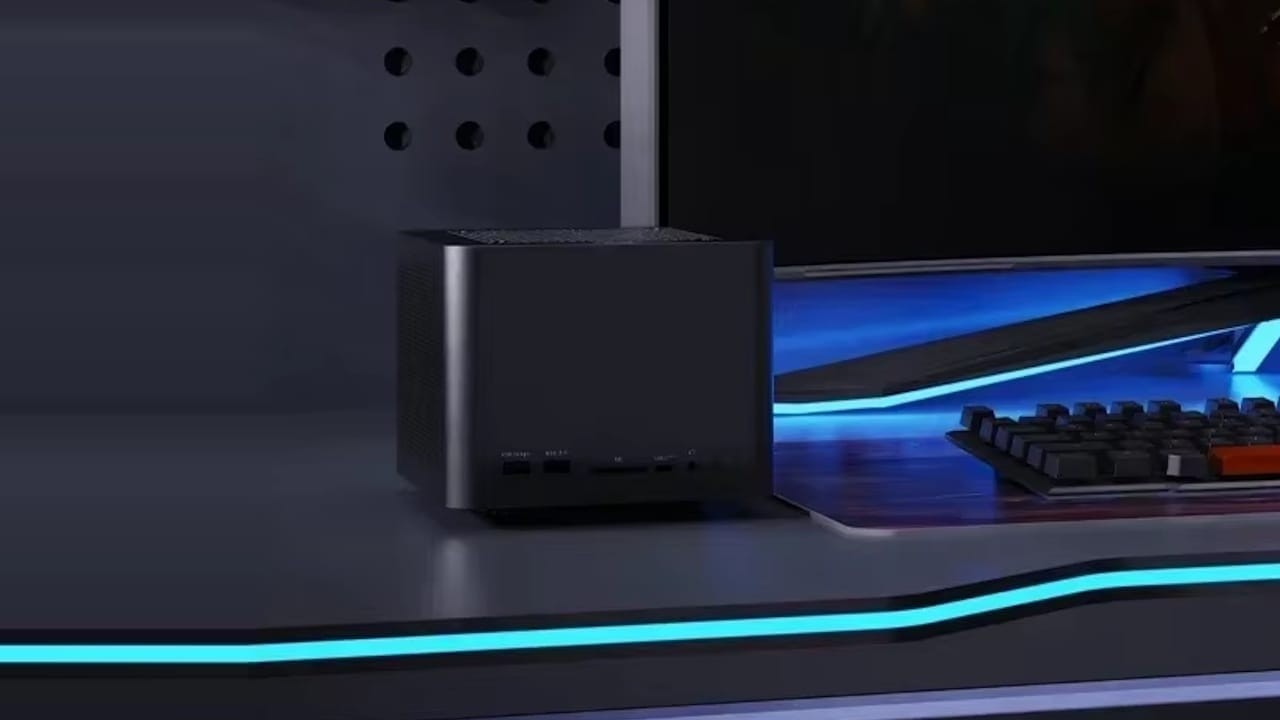

SZBox FN60G 13700T 4060M
