Mini PC DataBase

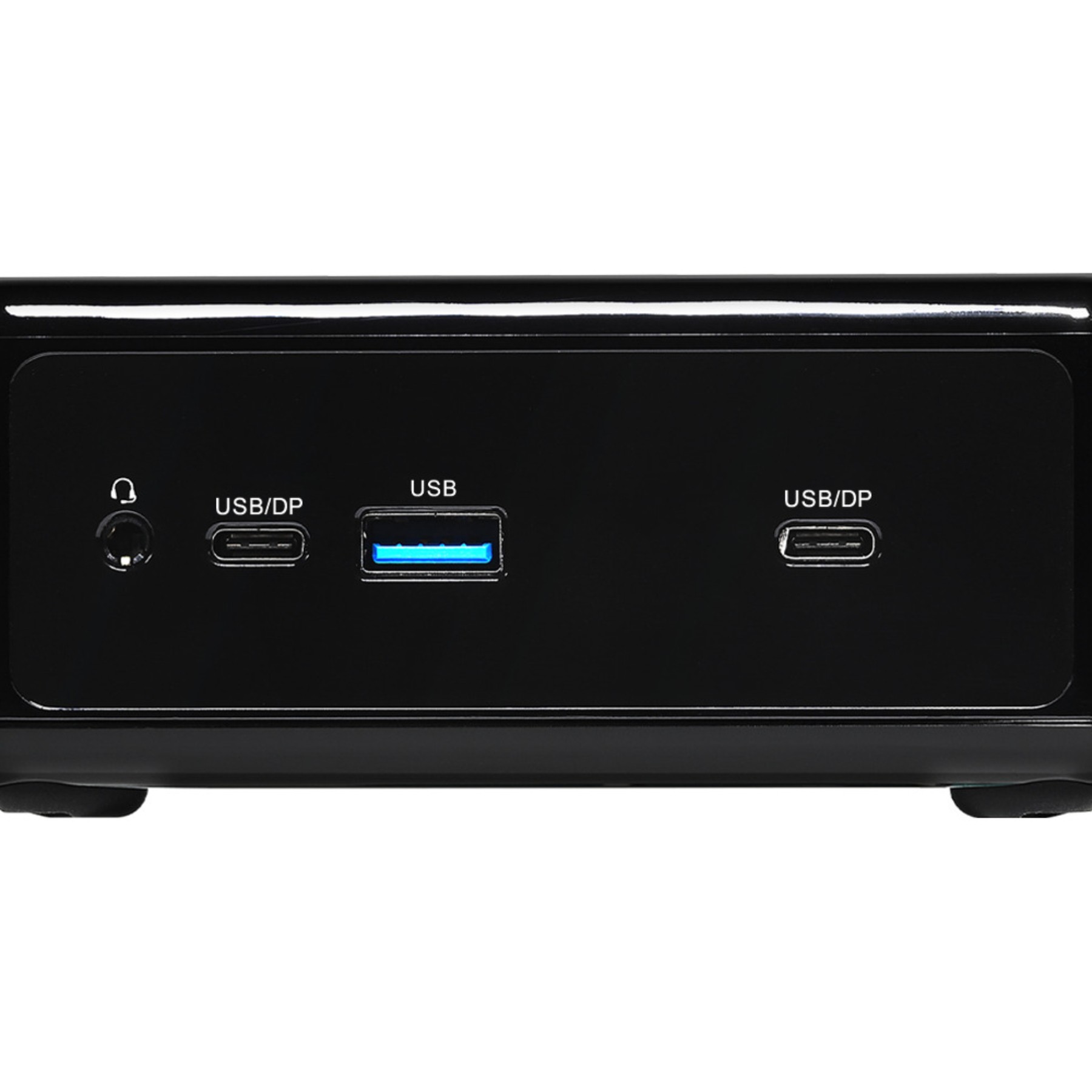

Asrock NUC box 1240P

Asrock

NUC box 1240P

CPU i5 1240P

GPU Iris Xe 80EU

Max RAM 64GB

Drives 2

From $470

Seller Newegg

The Asrock NUC box 1240P is a mini PC powered by the Intel i5 1240P (12th gen). It features 4 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 118 × 110 × 48mm (0.62L). Uses a Brick PSU (90W), 28W TDP.

CPU & Performance

CPUi5 1240P

Generation12th

P-Cores4

Threads16

Single-core65

Multi-core25

Socket0

GPU

GPUIris Xe 80EU

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots1

Gen4 x41

2.5" SATA1

SD cardNo

Ports & Connectivity

USB4 40Gbps1

Max displays4

Network

Max Ethernet2G

2.5G ports2

vProN

Physical

Dimensions118 × 110 × 48 mm

Volume0.62L

Fan size80mm

Warranty1 yr

Power

TDP28W

PSU typeBrick

PSU90W

Notes

Feb 6 2024: $300 to $470. Sep 16: $485 to $300

Discover More

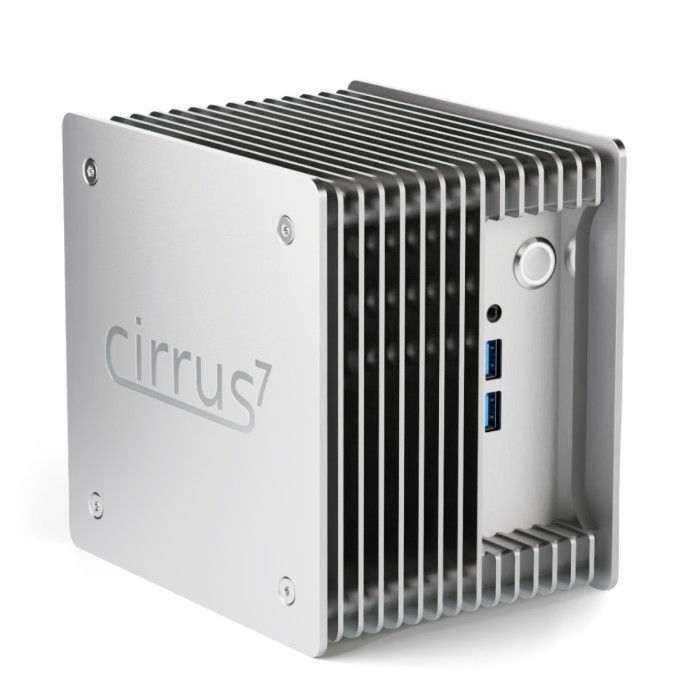

Cirrus 7 Nimbini Pro 1220P

Nimbini Pro 1220P

Cirrus 7 Nimbini Pro 1220P features Intel i3 1220P, 64GB RAM, offering USB4.

CPU Intel i3 1220P

Cores / Threads 2 / 12

Socket Soldered

GPU Intel Iris Xe 64EU

RAM 64GB / 2slots

Speed 3200 MT/s

Drives 3 (1 NVMe)

Ethernet 1 (2.5G)

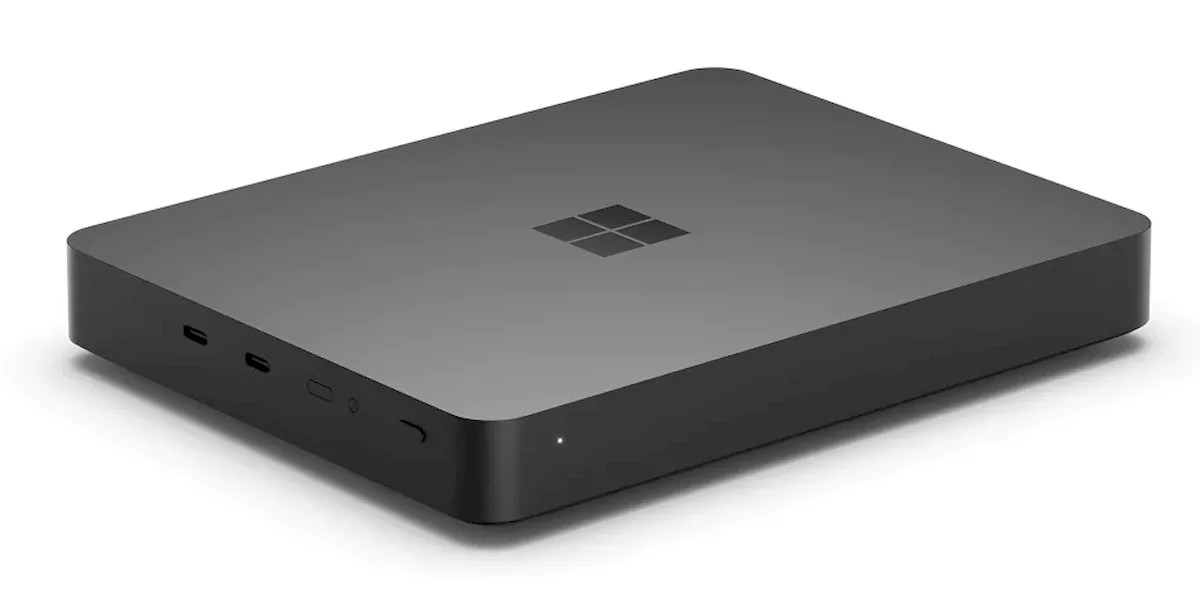

Microsoft Dev Kit 2023
