Asrock
NUC box 8365UE
CPU i5 8365UE
GPU Intel UHD 620
Max RAM 32GB
Drives 2

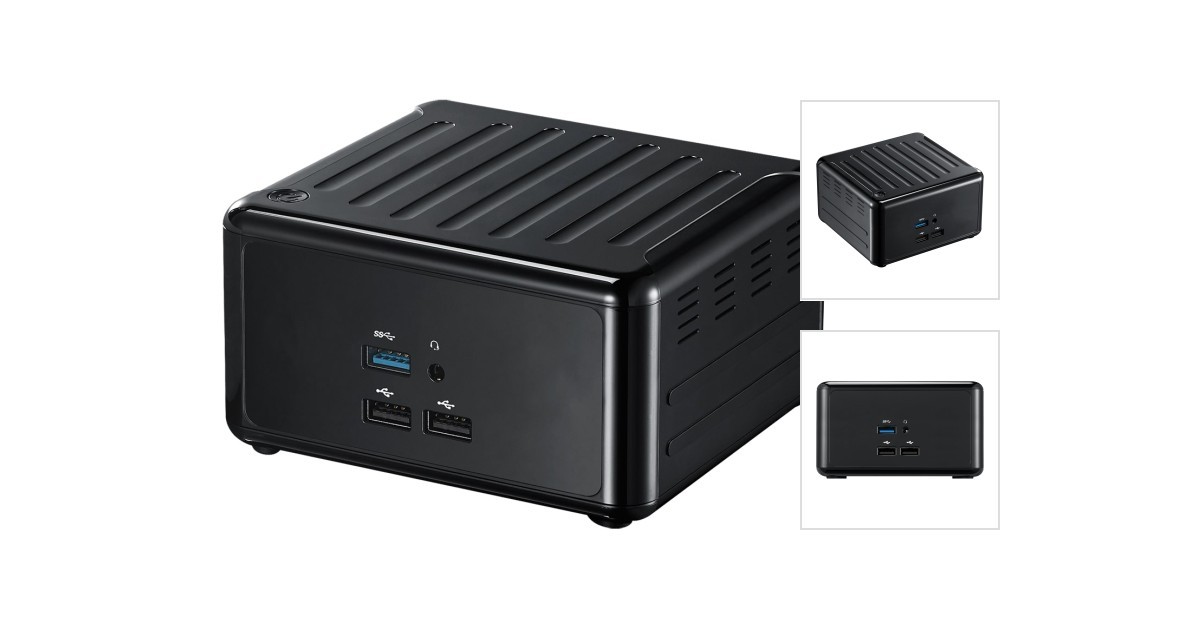

The Asrock NUC box 8365UE is a mini PC powered by the Intel i5 8365UE (8th gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel UHD 620. Supports up to 32GB of RAM across 2 slots at 2400 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 2 Ethernet ports (up to 1G). Dimensions: 119 × 110 × 67mm (0.88L). Uses a Brick PSU, 15W TDP.
CPU & Performance
CPUi5 8365UE
Generation8th
P-Cores4
Threads8
Socket0
GPU
GPUIntel UHD 620
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2400 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet2G
vProN
Physical
Dimensions119 × 110 × 67 mm
Volume0.88L
Fan size55mm
Warranty1 yr
Power
TDP15W
PSU typeBrick
