Mini PC DataBase

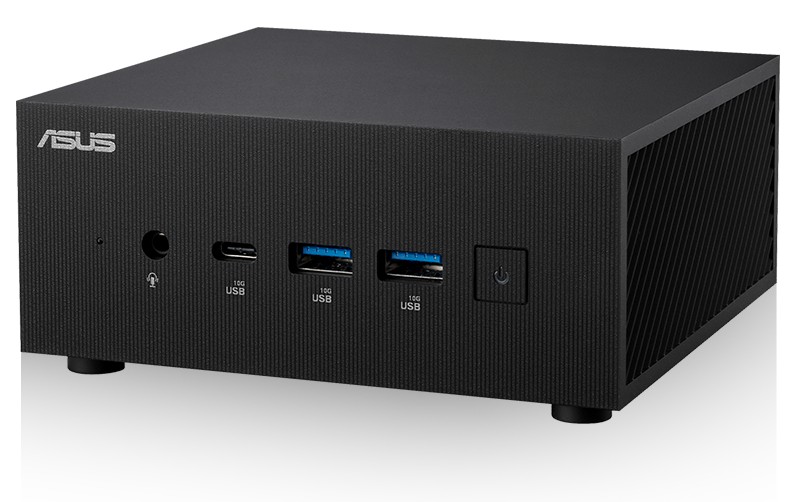

Asus Announced PN65 125H

Asus

Announced PN65 125H

CPU U5 125H

GPU Arc 7 Xe (112EU)

Max RAM 96GB

Drives 3

Seller Newegg

The Asus Announced PN65 125H is a mini PC powered by the Intel U5 125H (1st gen). It features 4 performance cores and 18 threads and a soldered CPU. Graphics are handled by the integrated Intel Arc 7 Xe (112EU). Supports up to 96GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps, HDMI 2.1. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 130 × 120 × 58mm (0.90L). Uses a Brick PSU (150W), 28W TDP.

CPU & Performance

CPUU5 125H

Generation1st

P-Cores4

Threads18

Single-core70

Multi-core36

Socket0

GPU

GPUArc 7 Xe (112EU)

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM96GB

RAM slots2

Max speed5600 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots2

Gen4 x42

2.5" SATA1

SD cardNo

Ports & Connectivity

HDMI 2.11

USB4 40Gbps1

Max displays4

Network

Max Ethernet1G

2.5G ports1

vProY

Physical

Dimensions130 × 120 × 58 mm

Volume0.9L

Fan size80mm

Warranty1 yr

Power

TDP28W

PSU typeBrick

PSU150W
