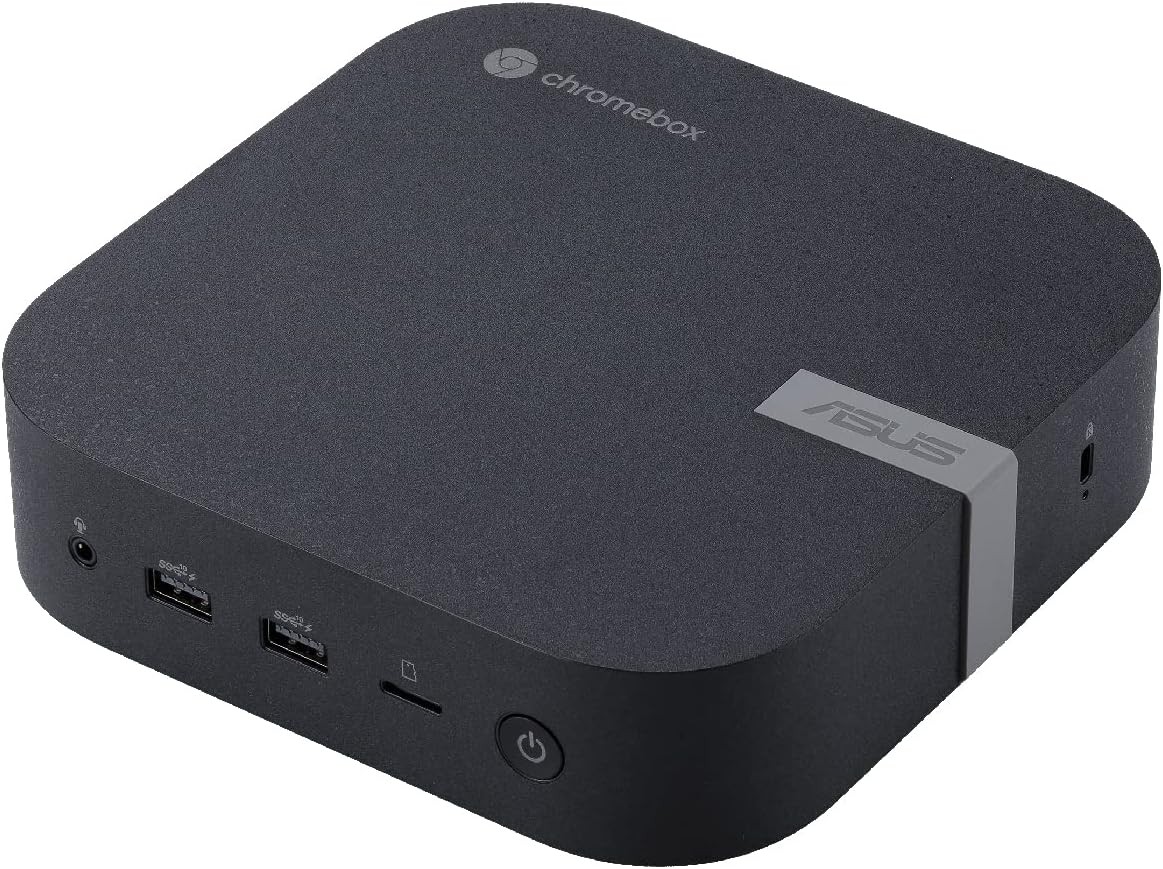

Asus Chromebox 5 1240P

Asus

Chromebox 5 1240P

CPU i5 1240P

GPU Iris Xe 80EU

Max RAM 64GB

Drives 2

From $600

Seller Amazon

The Asus Chromebox 5 1240P is a mini PC powered by the Intel i5 1240P (12th gen). It features 4 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 167 × 166 × 46mm (1.28L). Uses a Brick PSU (150W), 28W TDP.

CPU & Performance

CPUi5 1240P

Generation12th

P-Cores4

Threads16

Single-core65

Multi-core25

Socket0

GPU

GPUIris Xe 80EU

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots1

Gen4 x41

SD cardYes

Ports & Connectivity

USB4 40Gbps1

Max displays4

Network

Max Ethernet1G

2.5G ports1

vProN

Physical

Dimensions167 × 166 × 46 mm

Volume1.28L

Warranty1 yr

Power

TDP28W

PSU typeBrick

PSU150W

Pricing

Minimum$665

Barebone est.$600

Notes

Wireless phone charging pad on top

Discover More

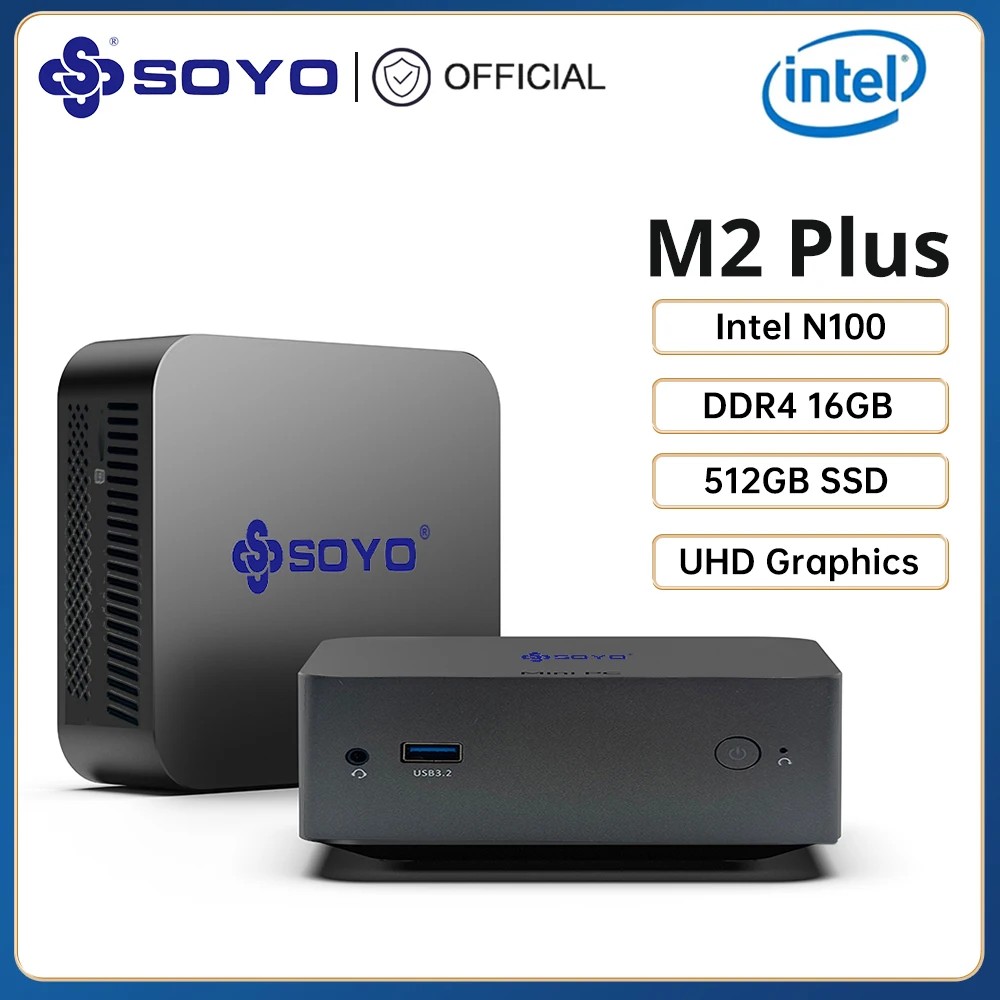

SOYO M2 Plus

M2 Plus

SOYO M2 Plus features Intel Celeron N100, 16GB RAM, offering compact 0.71L design.

CPU Intel Celeron N100

Cores / Threads – / 4

Socket Soldered

GPU Intel Iris Xe 24EU

RAM 16GB / 1slot

Speed 2666 MT/s

Ethernet 1 (1G)

Size 125×112×51mm

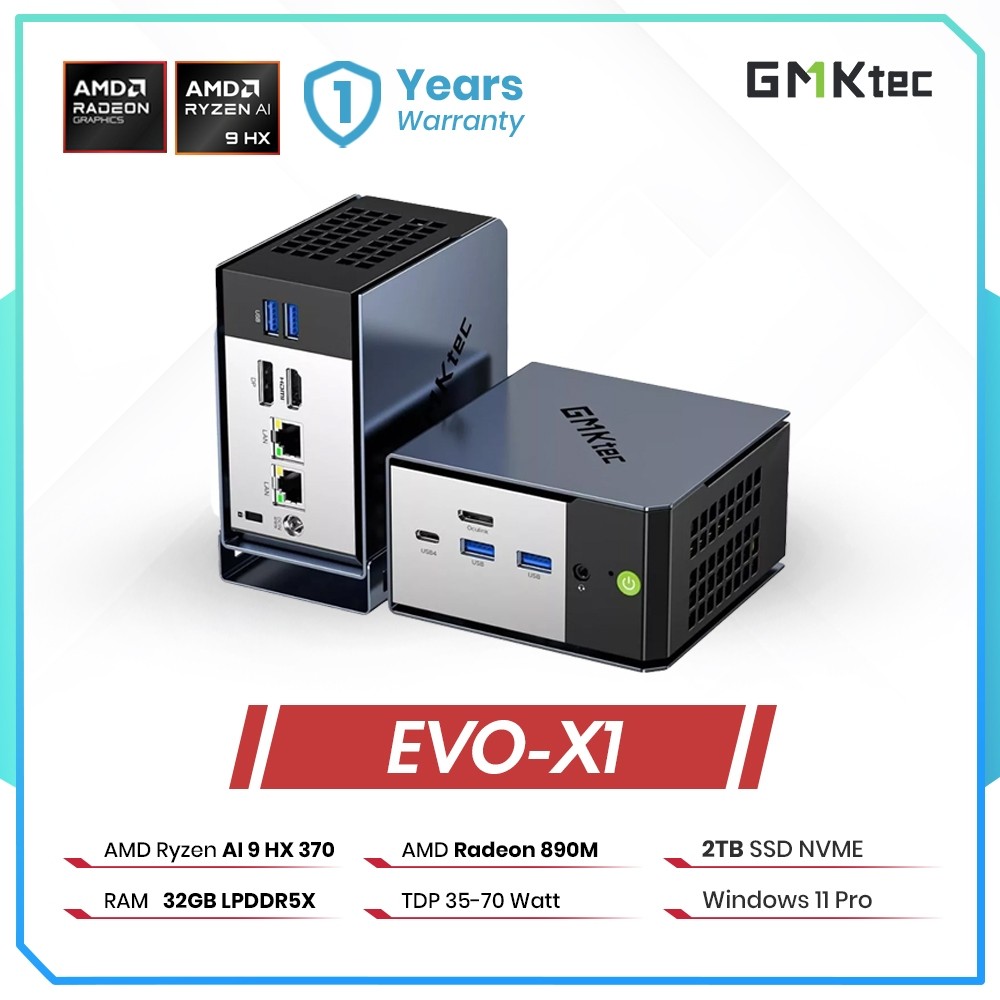

GMKtec EVO-X1 32GB

EVO-X1 32GB

GMKtec EVO-X1 32GB features AMD r9 HX 370, 32GB RAM, offering 2× 2.5G Ethernet and OCuLink.

CPU AMD r9 HX 370

Cores / Threads 12 / 24

Socket Soldered

GPU AMD RDNA3.5 890M

Speed 7500 MT/s

Drives 2 (2 NVMe)

Ethernet 2 (2.5G)

Size 110×107×63mm

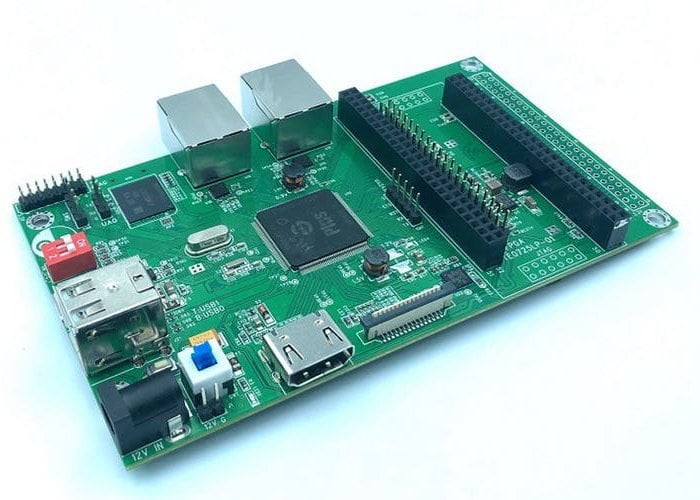

Banana Pi BPI-F2S FPGA 512MB

BPI-F2S FPGA 512MB

Banana Pi BPI-F2S FPGA 512MB features ARM ARM SP7021, 0.5GB RAM, offering ultra-compact 0.23L form factor.

CPU ARM ARM SP7021

Cores / Threads 4 / 4

Socket Soldered

Ethernet 2 (1G)

Size 135×80×21mm
