Asus Discontinued PN53 6900HX

Asus

Discontinued PN53 6900HX

CPU r9 6900HX

GPU RDNA2 680M

Max RAM 64GB

Drives 3

Seller Ebay

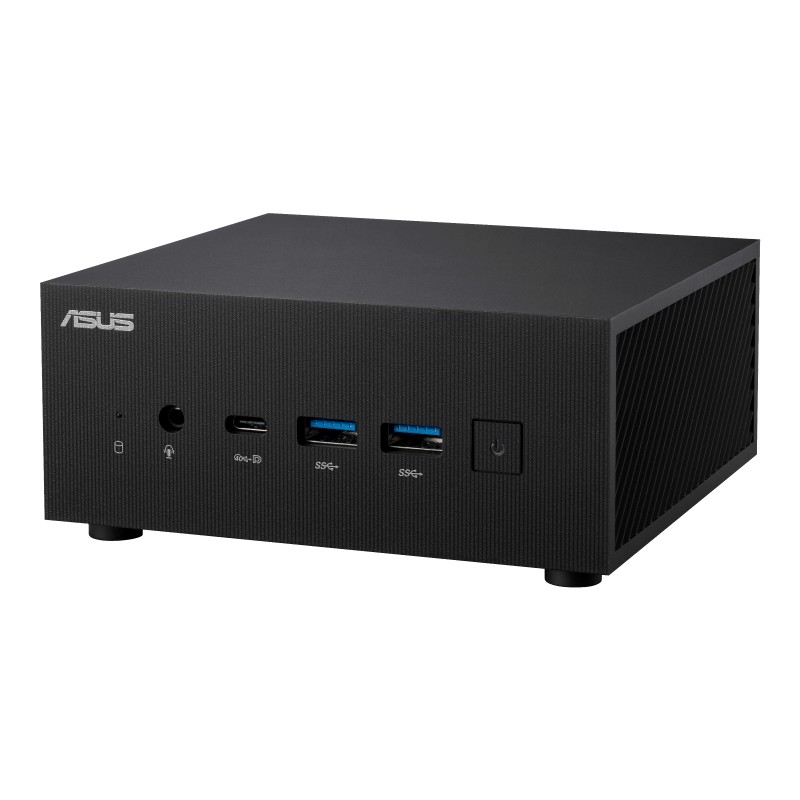

The Asus Discontinued PN53 6900HX is a mini PC powered by the AMD r9 6900HX (Zen 3+ gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA2 680M. Supports up to 64GB of RAM across 2 slots at 4800 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps, HDMI 2.1. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 130 × 120 × 58mm (0.90L). Uses a Brick PSU (150W), 55W TDP.

CPU & Performance

CPUr9 6900HX

GenerationZen 3+

P-Cores8

Threads16

Single-core66

Multi-core36

Socket0

GPU

GPURDNA2 680M

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed4800 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots2

Gen4 x42

2.5" SATA1

SD cardNo

Ports & Connectivity

HDMI 2.11

USB4 40Gbps2

Max displays4

Network

Max Ethernet1G

2.5G ports1

vProN

Physical

Dimensions130 × 120 × 58 mm

Volume0.9L

Fan size80mm

Warranty3 yr

Power

TDP55W

PSU typeBrick

PSU150W

Notes

HDMI 2.1 requires configurable port installed by Asus, most PN53 will be sold with a displayport 1.4 port
