Asus
NUC 13 Rugged Short
CPU Atom X7211E
GPU Iris Xe 16EU
Max RAM 16GB
Drives 2
Seller Asus
The Asus NUC 13 Rugged Short is a mini PC powered by the Intel Atom X7211E (12th gen). It features a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 16EU. Supports up to 16GB of RAM across 1 slot at 4800 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 174 × 108 × 26mm (0.49L). Uses a Brick PSU.
CPU & Performance
CPUAtom X7211E
Generation12th
Threads2
Socket0
GPU
GPUIris Xe 16EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM16GB
RAM slots1
Max speed4800 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots2
Gen3 x41
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet2G
2.5G ports2
Physical
Dimensions174 × 108 × 26 mm
Volume0.49L
Warranty3 yr
Power
PSU typeBrick
Discover More

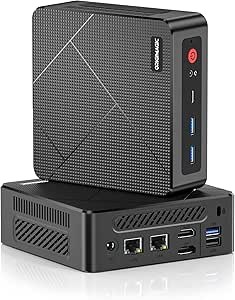

OrigiMagic
