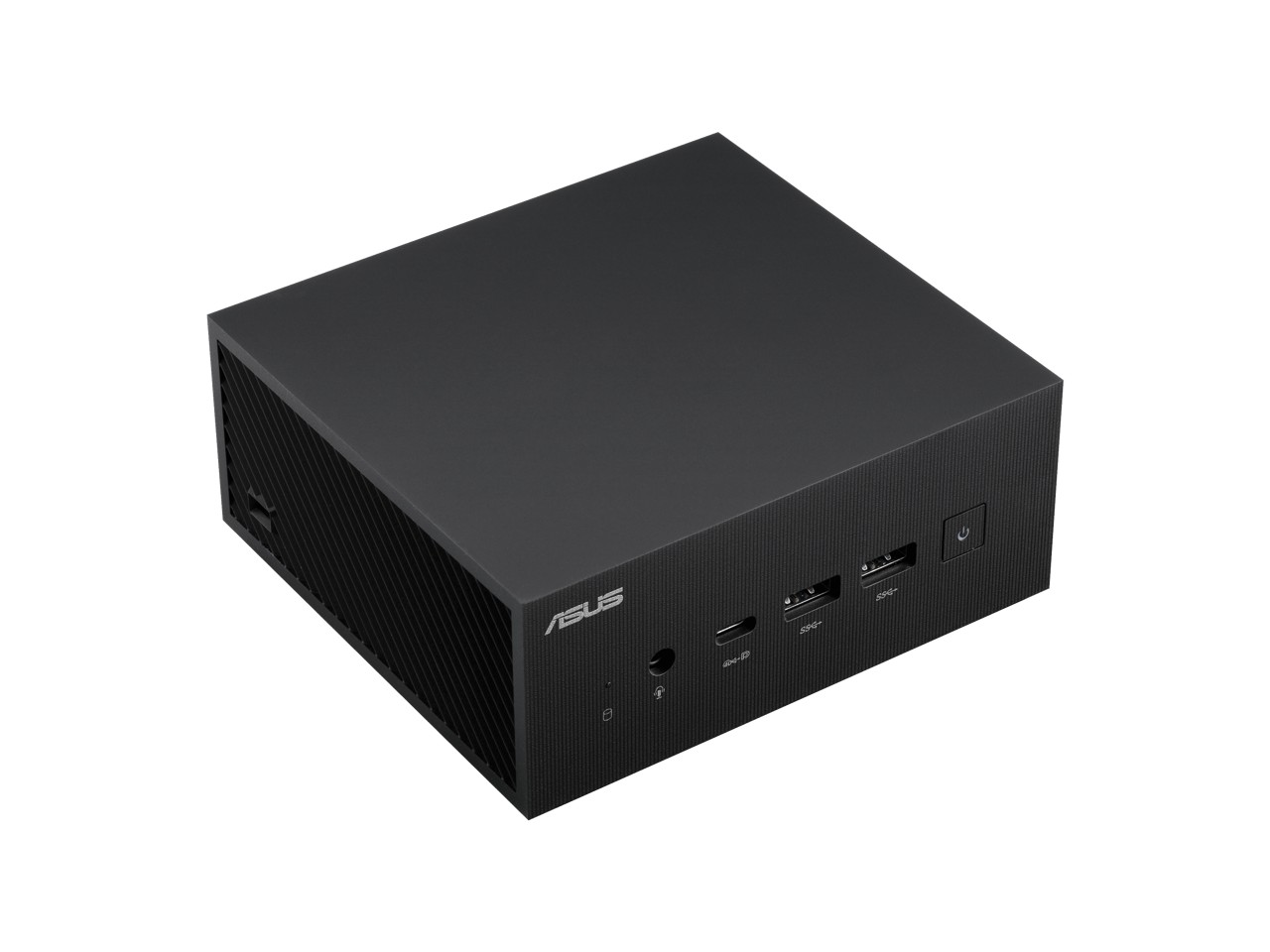

Asus PN53 6800H

Asus

PN53 6800H

CPU r7 6800H

GPU RDNA2 680M

Max RAM 64GB

Drives 3

From $560

Seller Amazon

The Asus PN53 6800H is a mini PC powered by the AMD r7 6800H (Zen 3+ gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA2 680M. Supports up to 64GB of RAM across 2 slots at 4800 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps, HDMI 2.1. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 130 × 120 × 58mm (0.90L). Uses a Brick PSU (150W), 45W TDP.

CPU & Performance

CPUr7 6800H

GenerationZen 3+

P-Cores8

Threads16

Single-core64

Multi-core34

Socket0

GPU

GPURDNA2 680M

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed4800 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots2

Gen4 x42

2.5" SATA1

SD cardNo

Ports & Connectivity

HDMI 2.11

USB4 40Gbps2

Max displays4

Network

Max Ethernet1G

2.5G ports1

vProN

Physical

Dimensions130 × 120 × 58 mm

Volume0.9L

Fan size80mm

Warranty3 yr

Power

TDP45W

PSU typeBrick

PSU150W

Notes

$650 to $560 June 6, HDMI 2.1 requires configurable port installed by Asus, most PN53 will be sold with a displayport 1.4 port

Discover More

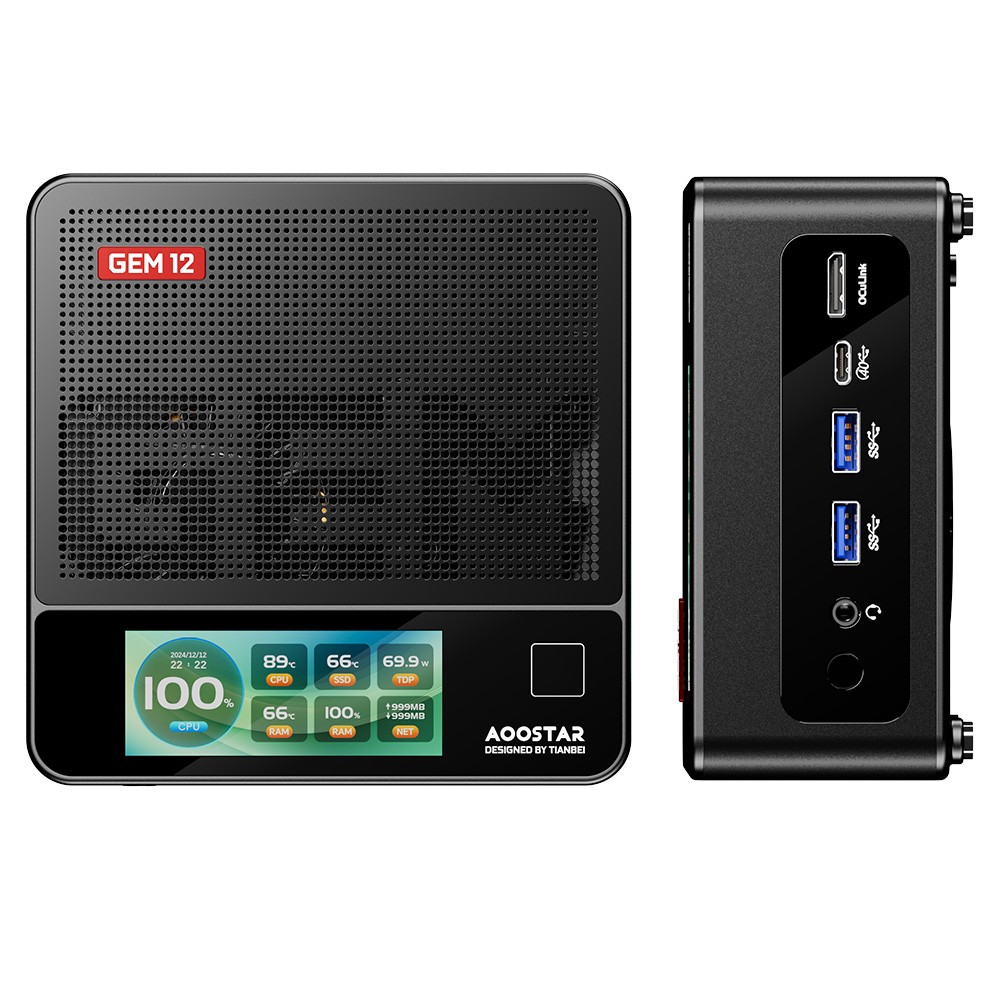

AOOSTAR GEM12 Pro Max 8845HS 7700XT

GEM12 Pro Max 8845HS 7700XT

AOOSTAR GEM12 Pro Max 8845HS 7700XT features AMD r7 8845HS/7840HS, 64GB RAM, offering 2× 2.5G Ethernet and OCuLink.

CPU AMD r7 8845HS/7840HS

Cores / Threads 8 / 16

Socket Soldered

RAM 64GB / 2slots

Speed 5600 MT/s

Drives 2 (2 NVMe)

Ethernet 2 (2.5G)

Size 260×150×175mm

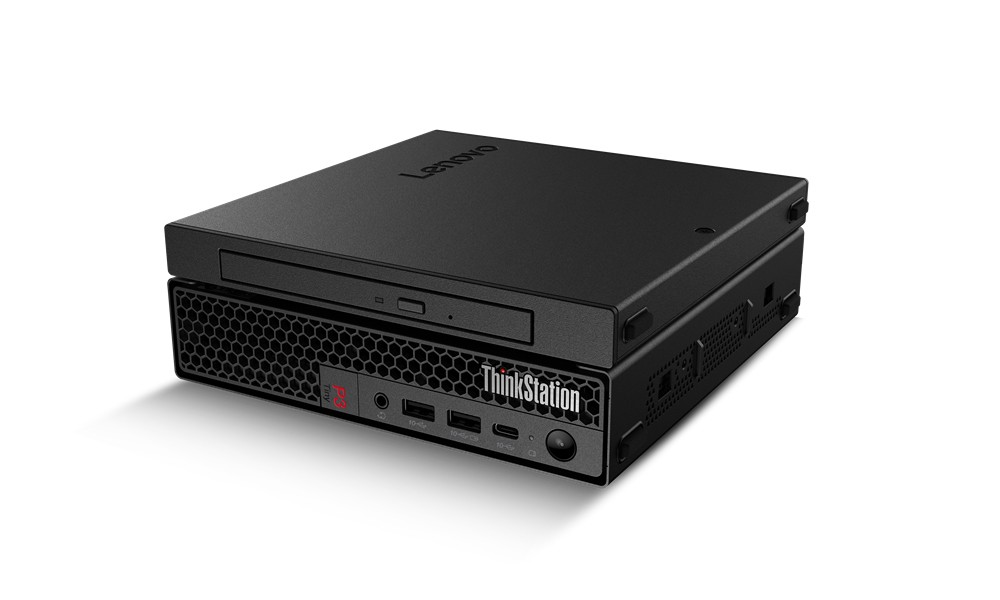

Lenovo P3 Tiny
