Asus
PN53 7535HS
CPU r5 7535HS/6600H
GPU RDNA2 660M
Max RAM 64GB
Drives 3
From $430
Seller Amazon
The Asus PN53 7535HS is a mini PC powered by the AMD r5 7535HS/6600H (Zen 3+ gen). It features 6 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA2 660M. Supports up to 64GB of RAM across 2 slots at 4800 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps, HDMI 2.1. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 130 × 120 × 58mm (0.90L). Uses a Brick PSU (150W), 45W TDP.
CPU & Performance
CPUr5 7535HS/6600H
GenerationZen 3+
P-Cores6
Threads12
Single-core62
Multi-core27
Socket0
GPU
GPURDNA2 660M
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed4800 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots2
Gen4 x42
2.5" SATA1
SD cardNo
Ports & Connectivity
HDMI 2.11
USB4 40Gbps2
Max displays4
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions130 × 120 × 58 mm
Volume0.9L
Fan size80mm
Warranty3 yr
Power
TDP45W
PSU typeBrick
PSU150W
Notes
May 1 2024: $580 to $430
Discover More
PELADN
Wi-6 N150
$40
PELADN Wi-6 N150 features Intel Celeron N150, 16GB RAM, offering ultra-compact 0.49L form factor.
CPU Intel Celeron N150
Cores / Threads – / 4
Socket Soldered
GPU Intel Iris Xe 24EU
RAM 16GB / 1slot
Speed 3200 MT/s
Drives 1
Ethernet 1 (1G)
PSU Plug
Size 124×112×35mm
Vol 0.49L
Beelink
U55
Beelink U55 features Intel i3 5005U, 8GB RAM, offering compact 0.59L design.
CPU Intel i3 5005U
Cores / Threads 2 / 4
Socket Soldered
GPU Intel Intel HD 5500
RAM 8GB / 1slot
Speed 1600 MT/s
Drives 3
SATA 1×2.5"
Ethernet 1 (1G)
Size 124×113×42mm
Vol 0.59L
ECS Elitegroup

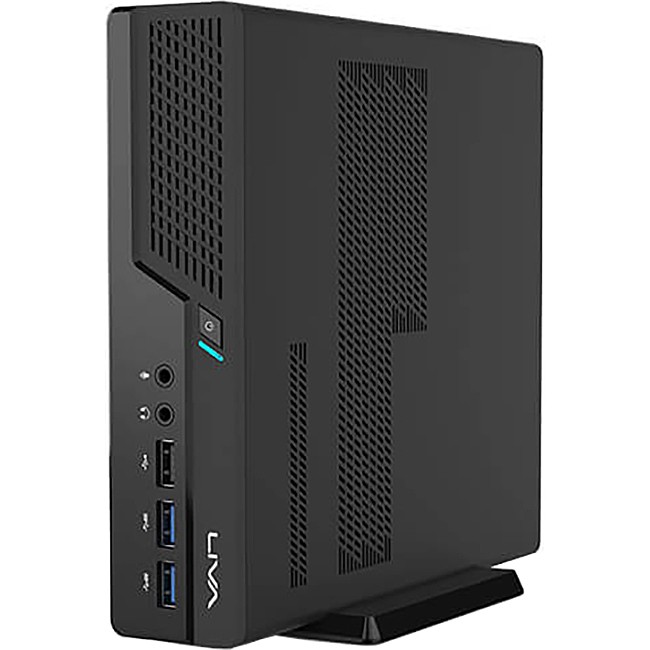

LIVA One Plus CL
