Mini PC DataBase

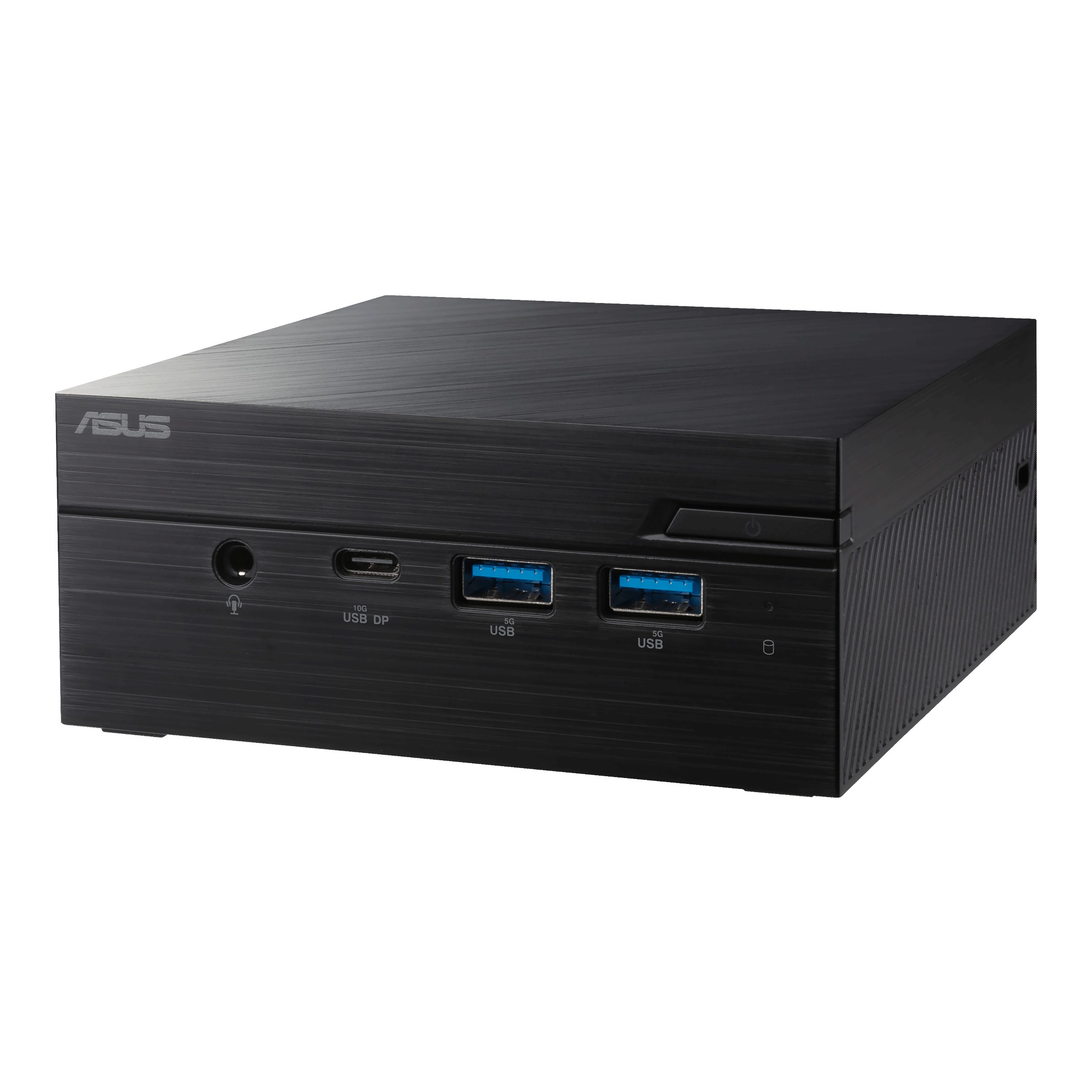

Asus PN53-S1 7730U

Asus

PN53-S1 7730U

CPU r7 7730U/5850U

GPU Vega 8

Max RAM 64GB

Drives 3

The Asus PN53-S1 7730U is a mini PC powered by the AMD r7 7730U/5850U (Zen 3 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD Vega 8. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 130 × 120 × 58mm (0.90L). Uses a Brick PSU (150W), 15W TDP.

CPU & Performance

CPUr7 7730U/5850U

GenerationZen 3

P-Cores8

Threads16

Single-core60

Multi-core27

Socket0

GPU

GPUVega 8

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM64GB

RAM slots2

Max speed3200 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots2

Gen4 x42

2.5" SATA1

SD cardNo

Ports & Connectivity

Max displays4

Network

Max Ethernet1G

2.5G ports1

vProN

Physical

Dimensions130 × 120 × 58 mm

Volume0.9L

Fan size80mm

Warranty1 yr

Power

TDP15W

PSU typeBrick

PSU150W

Notes

HDMI 2.1 is limited to 4k 60Hz instead of 8k 60hz or 4k 120hz, I am not sure zen 3 mobile architecture supports pcie gen 4

Discover More

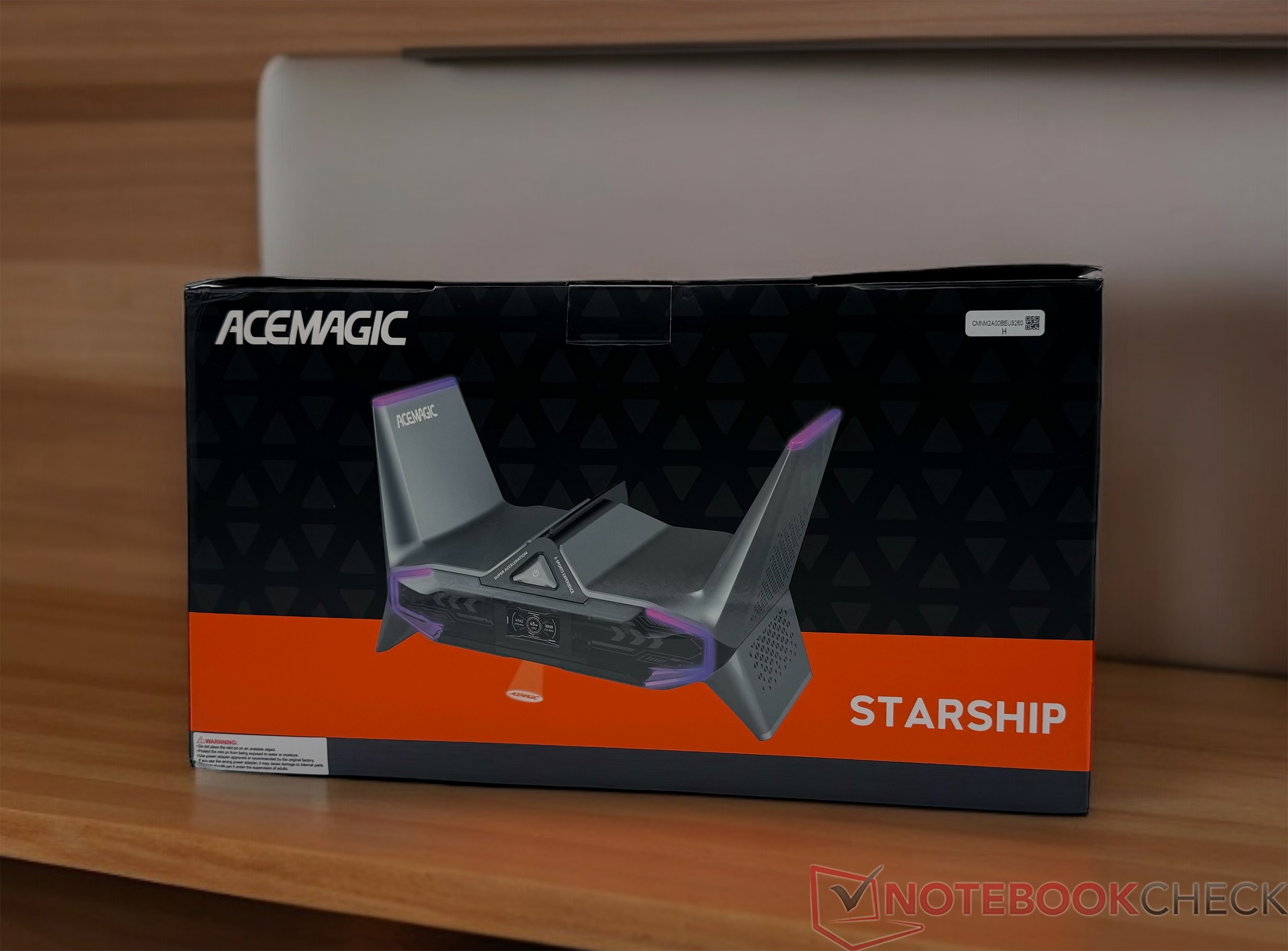

AceMagic M2A STARSHIP 12900H 3080

M2A STARSHIP 12900H 3080

AceMagic M2A STARSHIP 12900H 3080 features Intel i9 12900H with NVIDIA Mobile 3080 discrete GPU, offering 2× 2.5G Ethernet and USB4.

CPU Intel i9 12900H

Cores / Threads 6 / 20

Socket Soldered

GPU NVIDIA Mobile 3080

RAM 64GB / 2slots

Speed 4800 MT/s

Drives 2 (2 NVMe)

Ethernet 2 (2.5G)

Size 331×200×185mm

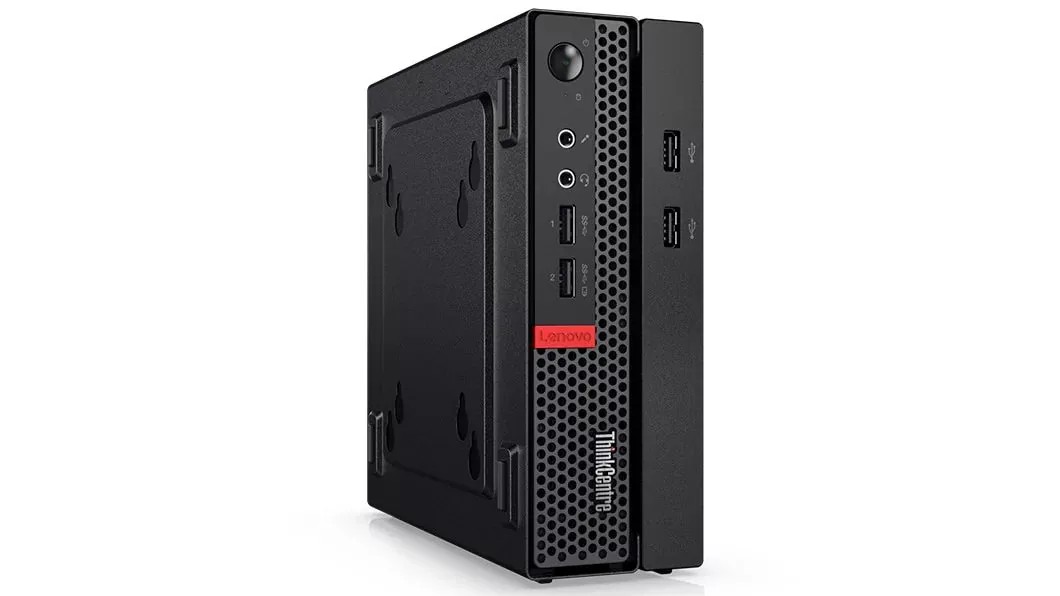

Lenovo M910x Tiny
