Asus
PN61 8145U
CPU i3 8145U
GPU Intel UHD 620
Max RAM 32GB
Drives 2

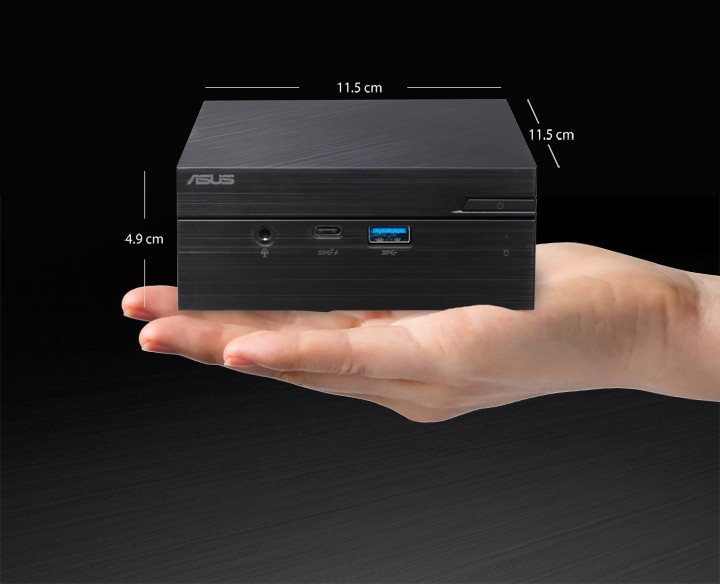

The Asus PN61 8145U is a mini PC powered by the Intel i3 8145U (8th gen). It features 2 performance cores and 4 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel UHD 620. Supports up to 32GB of RAM across 2 slots at 2400 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 1G). Dimensions: 115 × 115 × 49mm (0.65L). Uses a Brick PSU (65W), 15W TDP.
CPU & Performance
CPUi3 8145U
Generation8th
P-Cores2
Threads4
Single-core41
Multi-core6
Socket0
GPU
GPUIntel UHD 620
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2400 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
USB4 40Gbps1
Max displays3
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions115 × 115 × 49 mm
Volume0.65L
Fan size55mm
Warranty1 yr
Power
TDP15W
PSU typeBrick
PSU65W
Notes
TB3 configurable port
Discover More

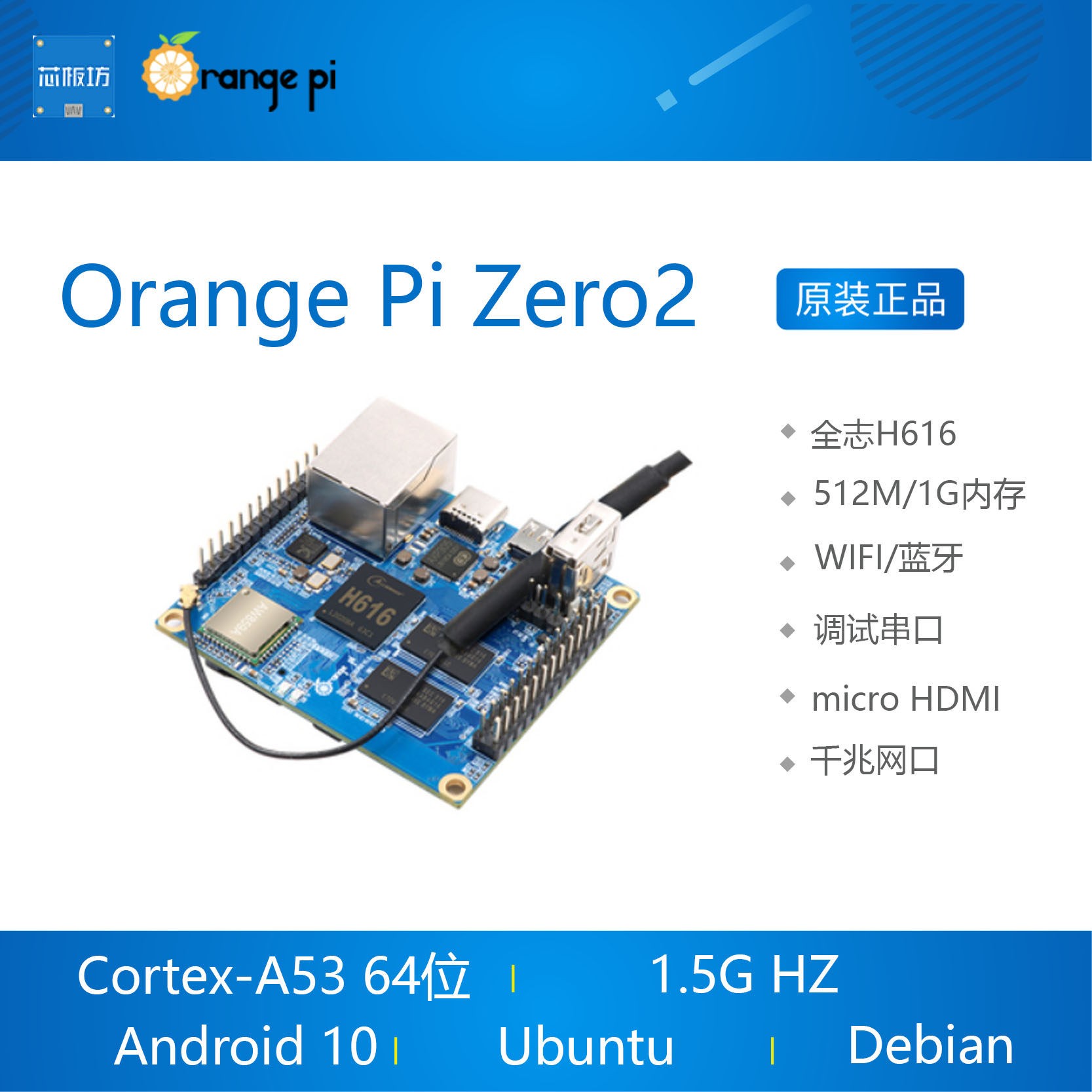

Orange Pi
Pi Zero2 0.5GB
Orange Pi Pi Zero2 0.5GB features ARM ARM H616, 0.5GB RAM, offering ultra-compact 0.05L form factor.
CPU ARM ARM H616
Cores / Threads 4 / 4
Socket Soldered
GPU ARM Mali G31 MP2
RAM 0.5GB
Size 60×53×17mm
Vol 0.05L

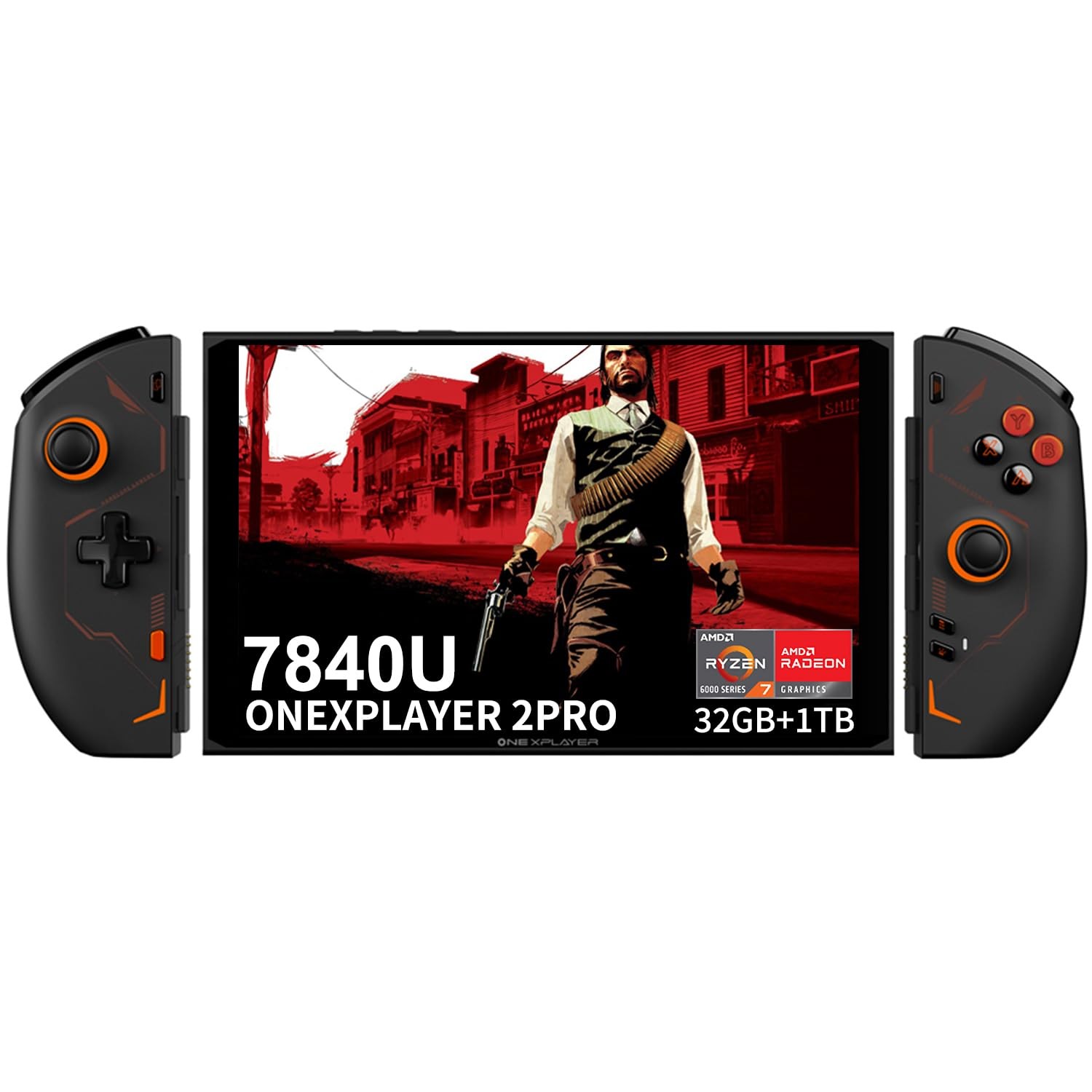

OneXPlayer
OneXPlayer features AMD r7 7840U.
CPU AMD r7 7840U
Cores / Threads 8 / 16
Socket Soldered
GPU AMD RDNA3 780M

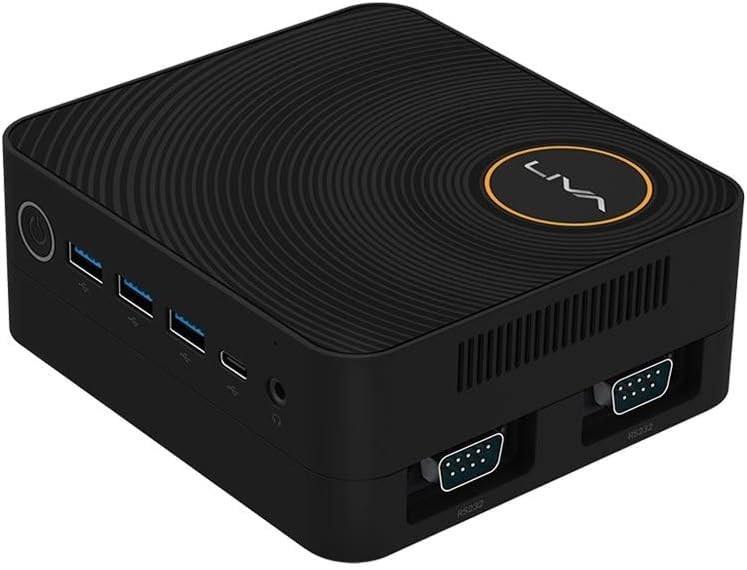

ECS Elitegroup
