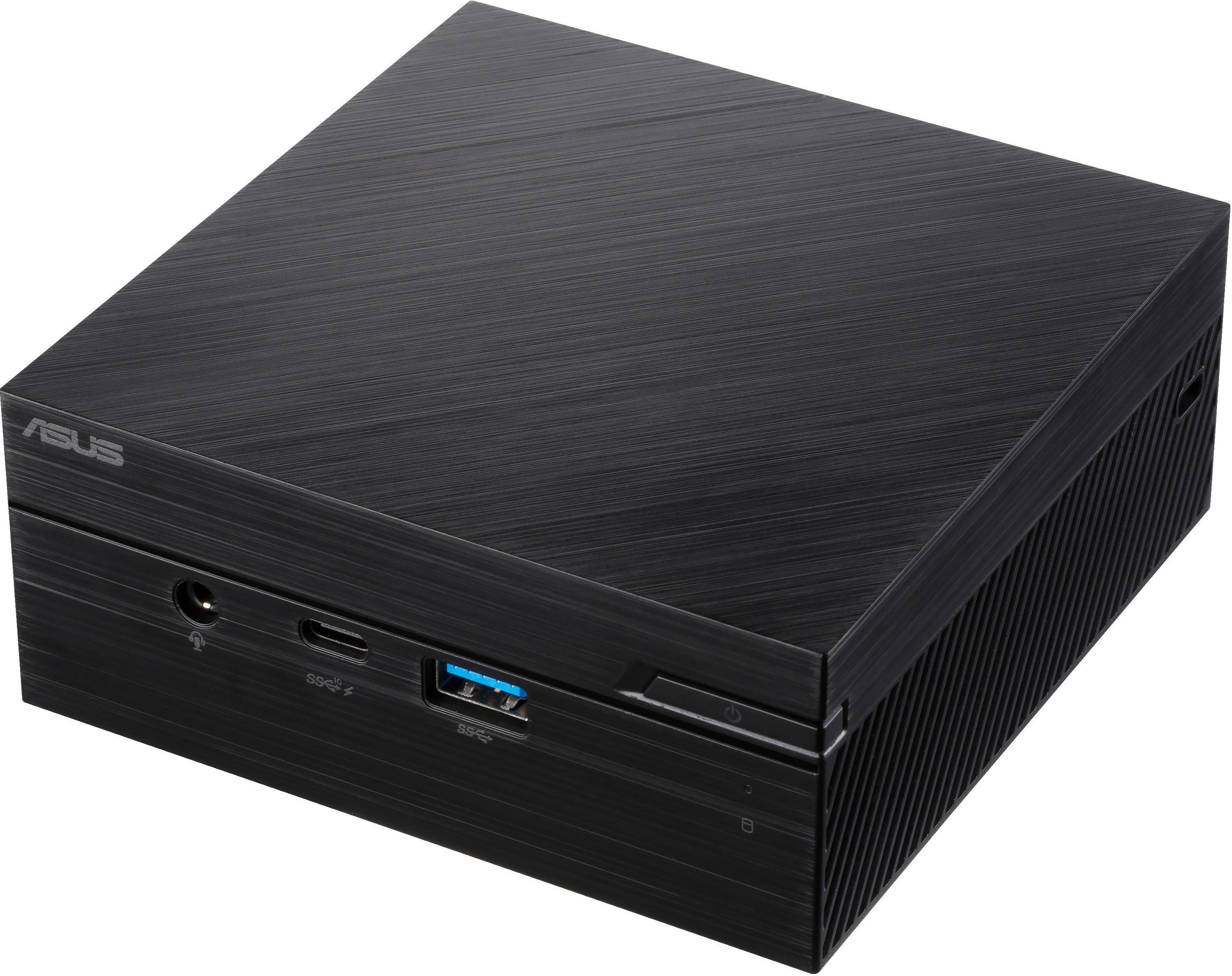

Asus PN61 8265U

Asus

PN61 8265U

CPU i5 8265U

GPU Intel UHD 620

Max RAM 32GB

Drives 2

The Asus PN61 8265U is a mini PC powered by the Intel i5 8265U (8th gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Intel UHD 620. Supports up to 32GB of RAM across 2 slots at 2400 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 1G). Dimensions: 115 × 115 × 49mm (0.65L). Uses a Brick PSU (90W), 15W TDP.

CPU & Performance

CPUi5 8265U

Generation8th

P-Cores4

Threads8

Single-core42

Multi-core9

Socket0

GPU

GPUIntel UHD 620

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM32GB

RAM slots2

Max speed2400 MT/s

ECC supportNo

Storage

Max drives2

NVMe slots1

Gen3 x41

2.5" SATA1

SD cardNo

Ports & Connectivity

USB4 40Gbps1

Max displays3

Network

Max Ethernet1G

1G ports1

vProN

Physical

Dimensions115 × 115 × 49 mm

Volume0.65L

Fan size55mm

Warranty1 yr

Power

TDP15W

PSU typeBrick

PSU90W

Notes

TB3 configurable port
