Asus
PN64 13500H
CPU i5 13500H
GPU Iris Xe 80EU
Max RAM 64GB
Drives 2
From $500
Seller Amazon
The Asus PN64 13500H is a mini PC powered by the Intel i5 13500H (13th gen). It features 4 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 4800 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes HDMI 2.1. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 130 × 120 × 58mm (0.90L). Uses a Brick PSU (150W), 45W TDP.
CPU & Performance
CPUi5 13500H
Generation13th
P-Cores4
Threads16
Single-core70
Multi-core33
Socket0
GPU
GPUIris Xe 80EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed4800 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen4 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
HDMI 2.11
Max displays4
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions130 × 120 × 58 mm
Volume0.9L
Fan size80mm
Warranty3 yr
Power
TDP45W
PSU typeBrick
PSU150W
Discover More

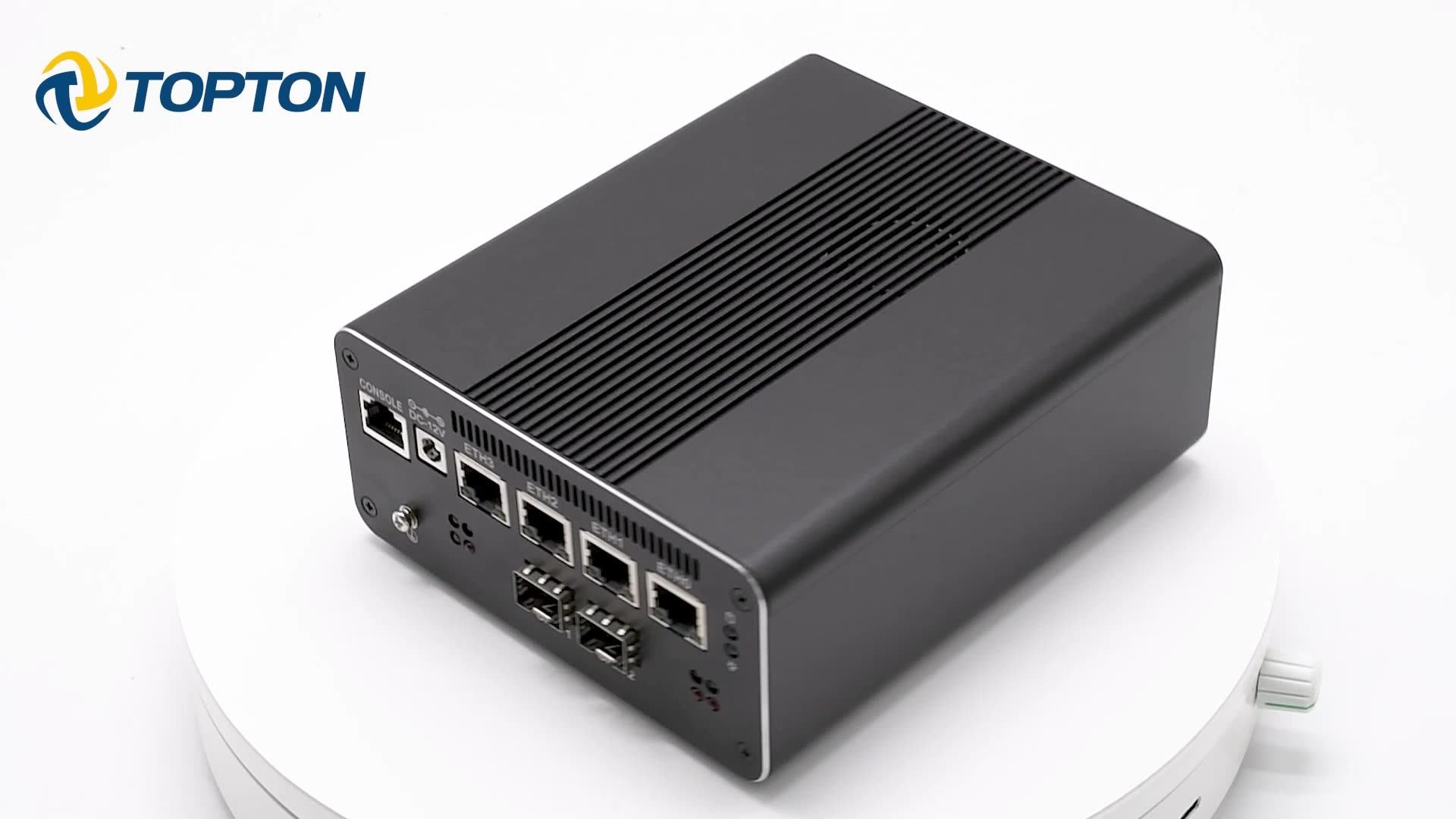

CWWK/Topton
8505 8x2.5G
$375
CWWK/Topton 8505 8x2.5G features Intel Pentium 8505U, 64GB RAM, offering 8× 2.5G Ethernet.
CPU Intel Pentium 8505U
Cores / Threads 1 / 6
Socket Soldered
GPU Intel Iris Xe 48EU
RAM 64GB / 2slots
Speed 4800 MT/s
Drives 4 (1 NVMe)
SATA 2×2.5"
Ethernet 8 (2.5G)
Size 155×132×60mm
Vol 1.23L
Dell
Wyse X90L
Dell Wyse X90L features C7-M.
CPU Other C7-M

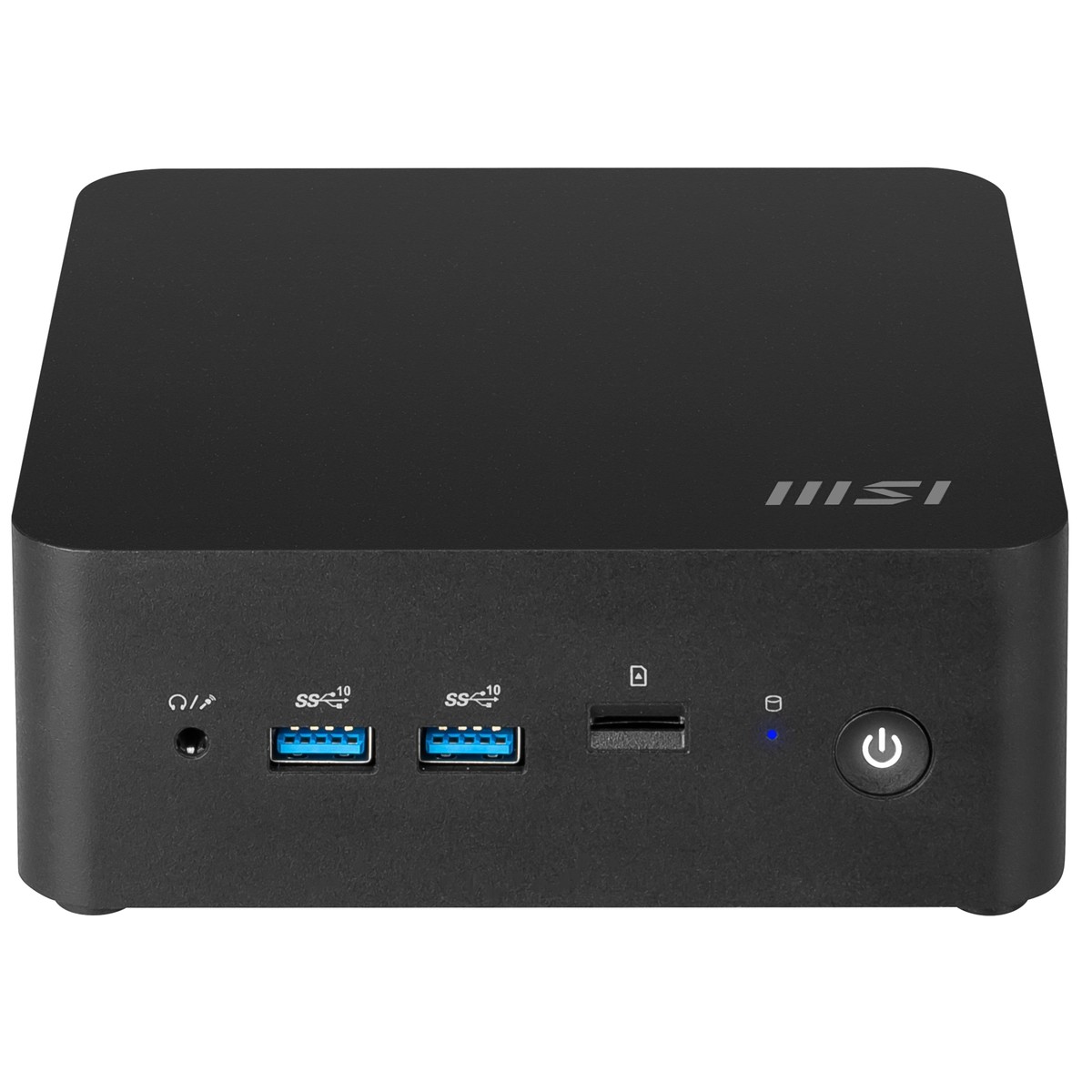

MSI
