Mini PC DataBase

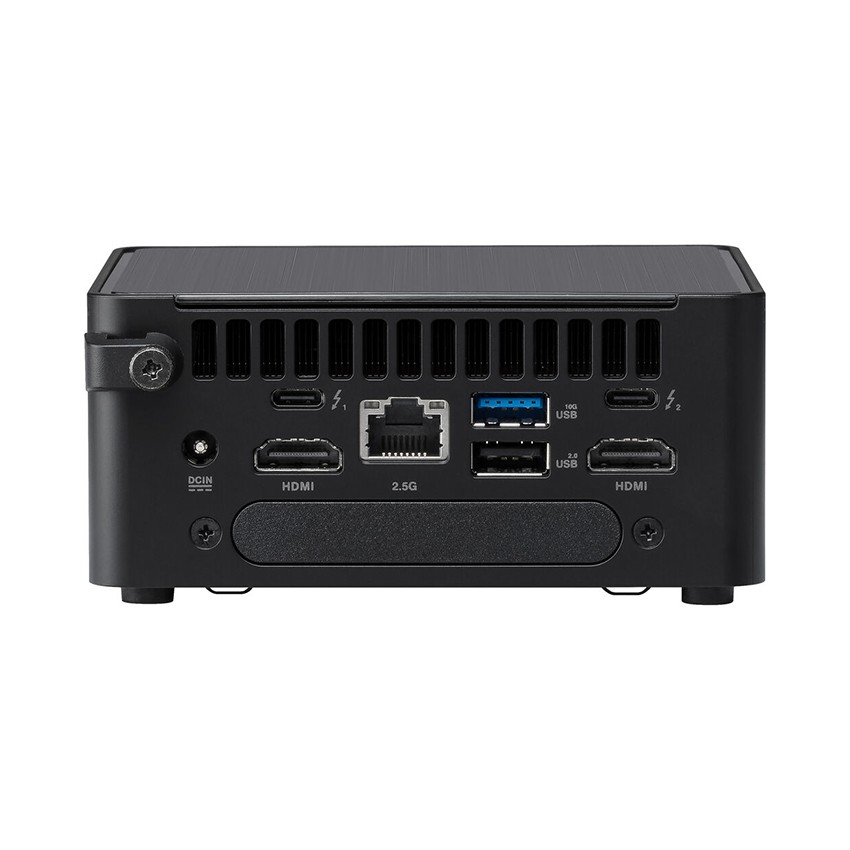

Asus RNUC14RVHu5

Asus

RNUC14RVHu5

CPU U5 125H

GPU Arc 7 Xe (112EU)

Max RAM 96GB

Drives 3

From $540

Seller Newegg

The Asus RNUC14RVHu5 is a mini PC powered by the Intel U5 125H (1st gen). It features 4 performance cores and 18 threads and a soldered CPU. Graphics are handled by the integrated Intel Arc 7 Xe (112EU). Supports up to 96GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 1G). Dimensions: 117 × 112 × 54mm (0.71L). Uses a Brick PSU (120W).

CPU & Performance

CPUU5 125H

Generation1st

P-Cores4

Threads18

Single-core70

Multi-core36

Socket0

GPU

GPUArc 7 Xe (112EU)

Discrete GPUNo

Integrated GPUYes

eGPU supportNo

RAM

Max RAM96GB

RAM slots2

Max speed5600 MT/s

ECC supportNo

Storage

Max drives3

NVMe slots2

Gen4 x41

Gen3 x41

2.5" SATA1

SD cardNo

Ports & Connectivity

USB4 40Gbps1.5

Max displays4

Network

Max Ethernet1G

1G ports1

Physical

Dimensions117 × 112 × 54 mm

Volume0.71L

Fan size80mm

Warranty3 yr

Power

PSU typeBrick

PSU120W

Notes

Feb 20 2024: Thunderbolt ports switch from 8k 60hz to 8k 30hz when both are used. The hdmi 2.1 tdms is 4k 60hz.

Discover More

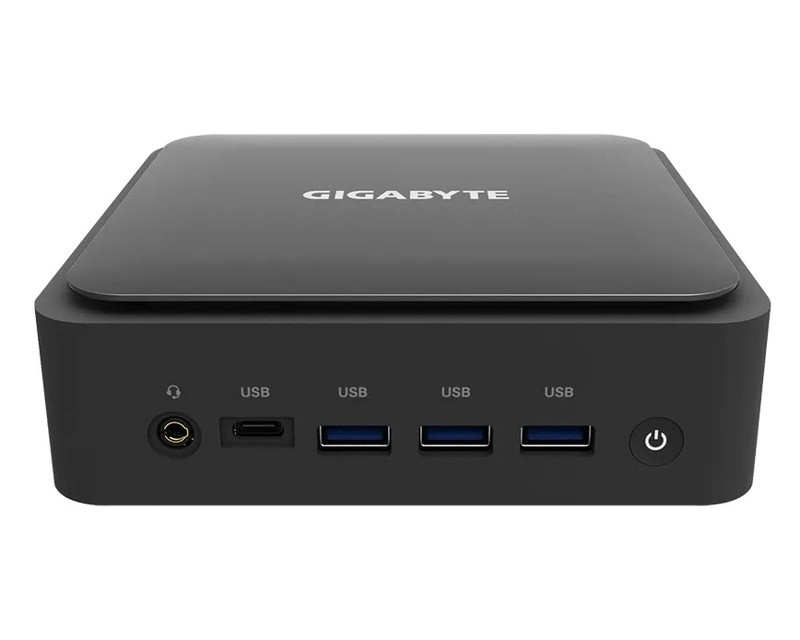

Gigabyte GB-BEi3-1220

GB-BEi3-1220

Gigabyte GB-BEi3-1220 features Intel i3 1220P, 64GB RAM, offering USB4 and compact 0.89L design.

CPU Intel i3 1220P

Cores / Threads 2 / 12

Socket Soldered

GPU Intel Iris Xe 64EU

RAM 64GB / 2slots

Speed 3200 MT/s

Drives 1 (1 NVMe)

Ethernet 1 (2.5G)

Size 139×134×48mm

Beelink Mini S

Mini S

Beelink Mini S features Intel Celeron N5095, 16GB RAM, offering compact 0.51L design.

CPU Intel Celeron N5095

Cores / Threads – / 4

Socket Soldered

GPU Intel Jasper Lake 16EU

RAM 16GB / 1slot

Speed 2933 MT/s

Ethernet 1 (1G)

Size 115×105×42mm

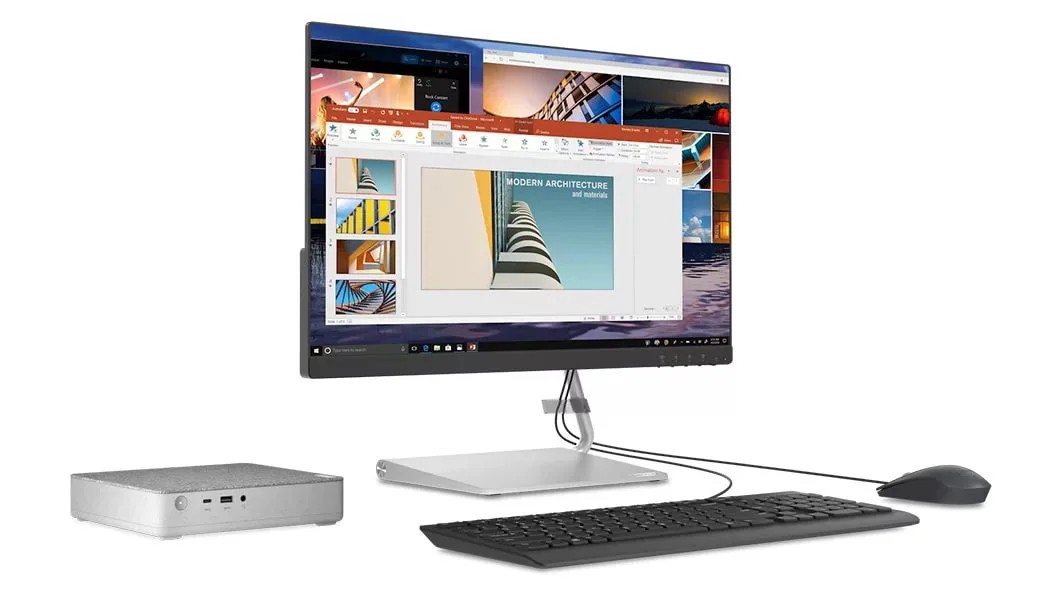

Lenovo IdeaCentre Mini 5i Gen 8
