Asus
Rumored May PN53 / PN54
CPU r7 7840H
GPU RDNA3 780M
Max RAM 64GB
Drives 3
Seller Newegg

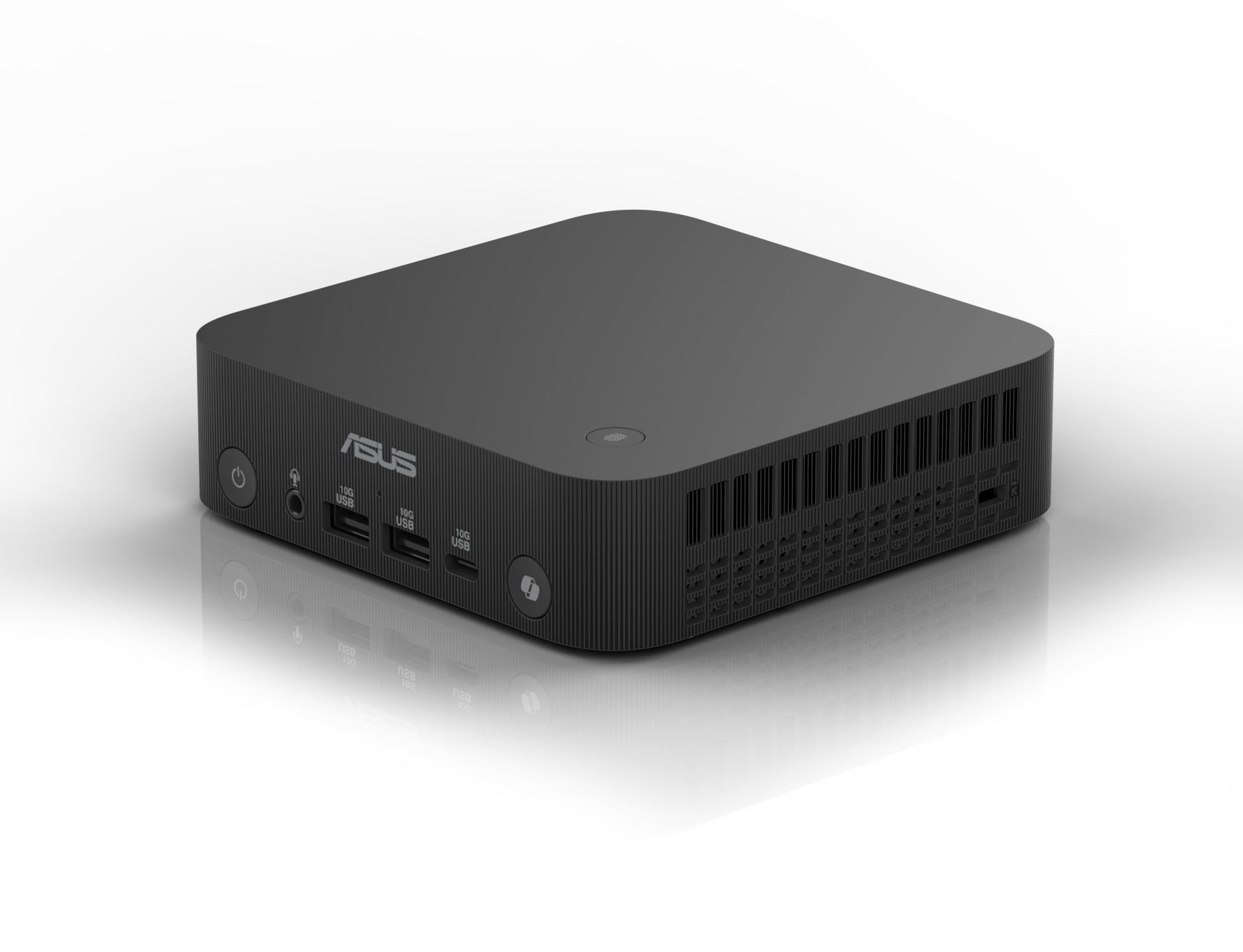

The Asus Rumored May PN53 / PN54 is a mini PC powered by the AMD r7 7840H (Zen 4 gen). It features 8 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated AMD RDNA3 780M. Supports up to 64GB of RAM across 2 slots at 5600 MT/s. Storage capacity of up to 3 drives including 2 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps, HDMI 2.1. Networking features 1 Ethernet port (up to 2.5G). Dimensions: 130 × 120 × 58mm (0.90L). Uses a Brick PSU (150W), 45W TDP.
CPU & Performance
CPUr7 7840H
GenerationZen 4
P-Cores8
Threads16
Socket0
GPU
GPURDNA3 780M
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed5600 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots2
Gen4 x42
2.5" SATA1
SD cardNo
Ports & Connectivity
HDMI 2.11
USB4 40Gbps1
Max displays4
Network
Max Ethernet1G
2.5G ports1
vProN
Physical
Dimensions130 × 120 × 58 mm
Volume0.9L
Fan size80mm
Warranty1 yr
Power
TDP45W
PSU typeBrick
PSU150W
Discover More
Morefine
M600S
$930
Morefine M600S features AMD r9 5900HX with AMD 6600M discrete GPU.
CPU AMD r9 5900HX
Cores / Threads 8 / 16
Socket Soldered
GPU AMD 6600M
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 3 (2 NVMe)
SATA 1×2.5"
Ethernet 2 (1G)
PSU Brick
Size 225×190×45mm
Vol 1.92L

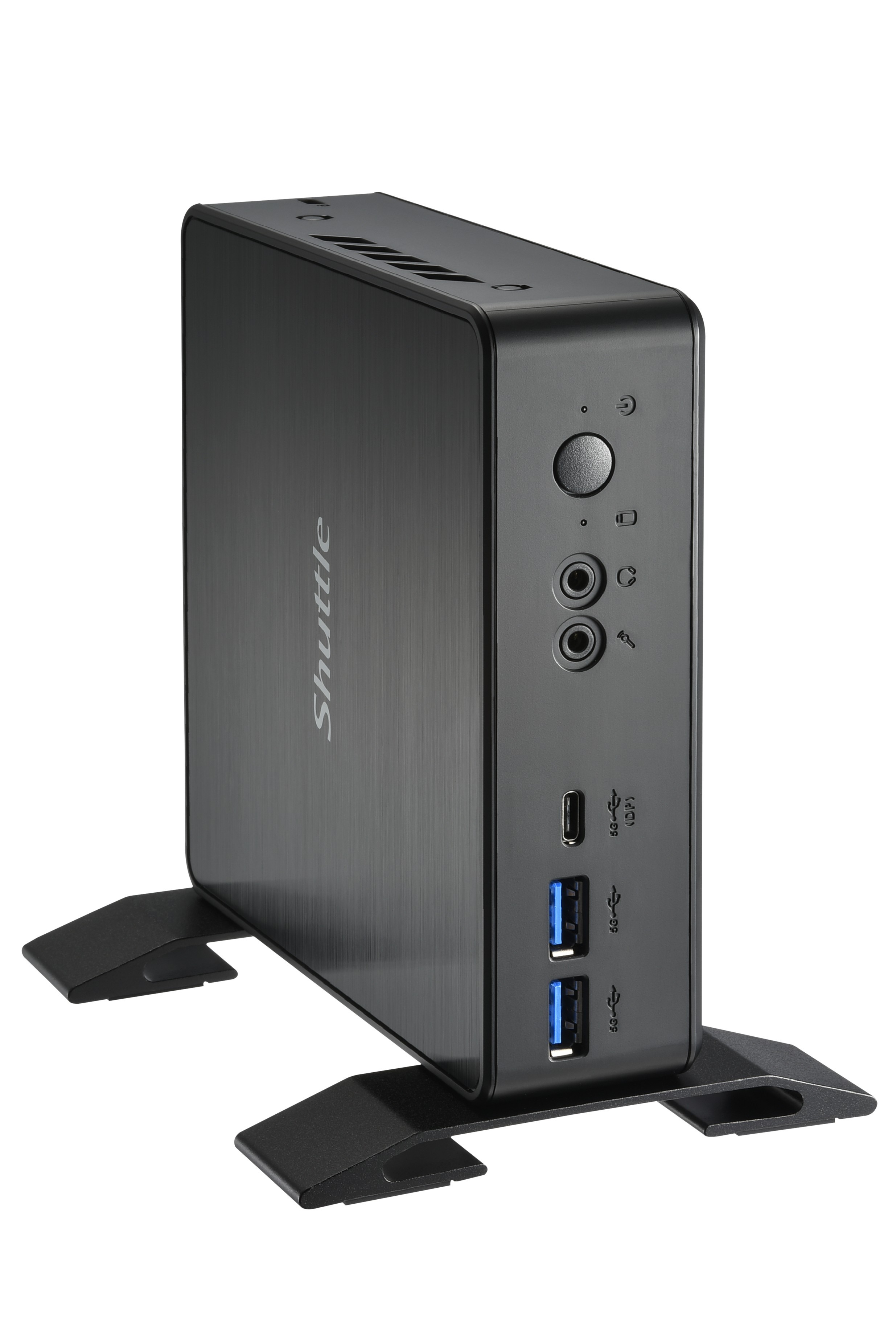

Shuttle
