Beelink
U57
CPU i5 5257U
GPU Iris 6100
Max RAM 8GB
Drives 3

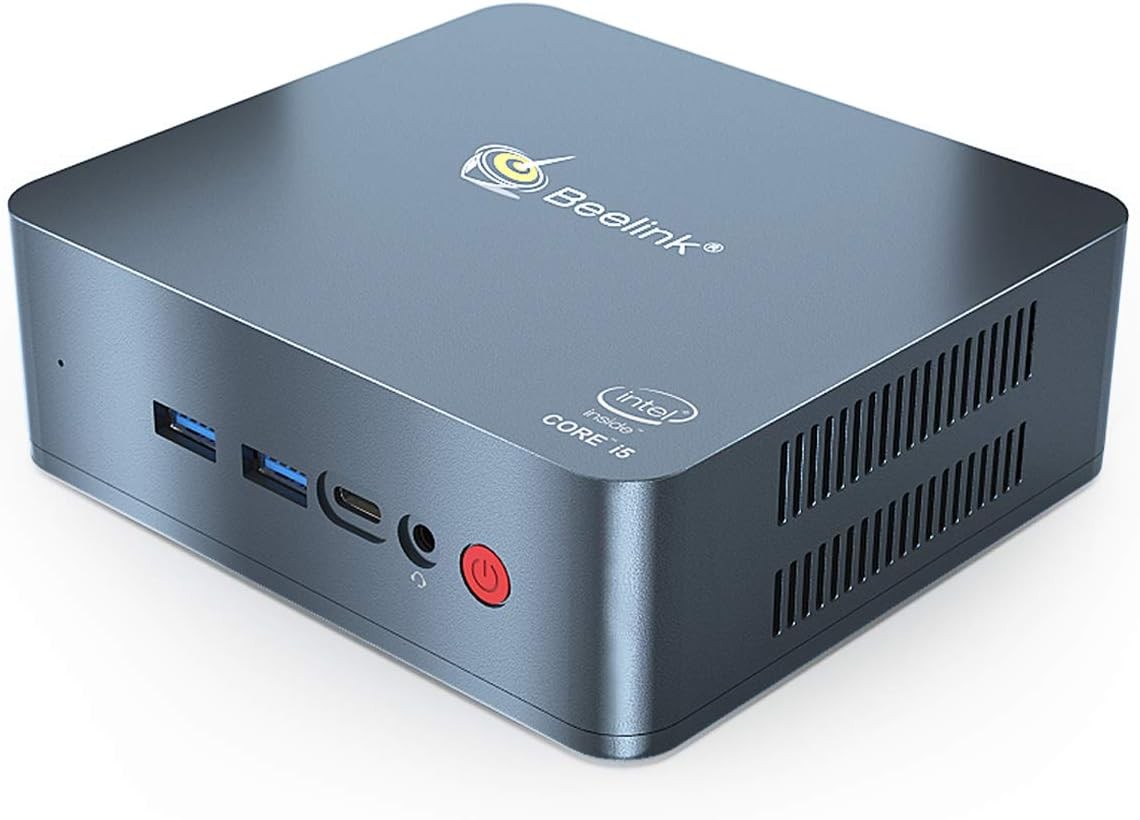

The Beelink U57 is a mini PC powered by the Intel i5 5257U (5th gen). It features 2 performance cores and 4 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris 6100. Supports up to 8GB of RAM across 1 slot at 1600 MT/s. Storage capacity of up to 3 drives including 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 124 × 113 × 42mm (0.59L).
CPU & Performance
CPUi5 5257U
Generation5th
P-Cores2
Threads4
Single-core34
Multi-core4
Socket0
GPU
GPUIris 6100
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM8GB
RAM slots1
Max speed1600 MT/s
ECC supportNo
Storage
Max drives3
2.5" SATA1
SD cardYes
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions124 × 113 × 42 mm
Volume0.59L
Fan size55mm
Warranty1.5 yr
Power
TDP15W
