Bmax
MaxMini B3 Plus
CPU Pentium 5405U
GPU Intel UHD 610
Max RAM 8GB
Drives 3

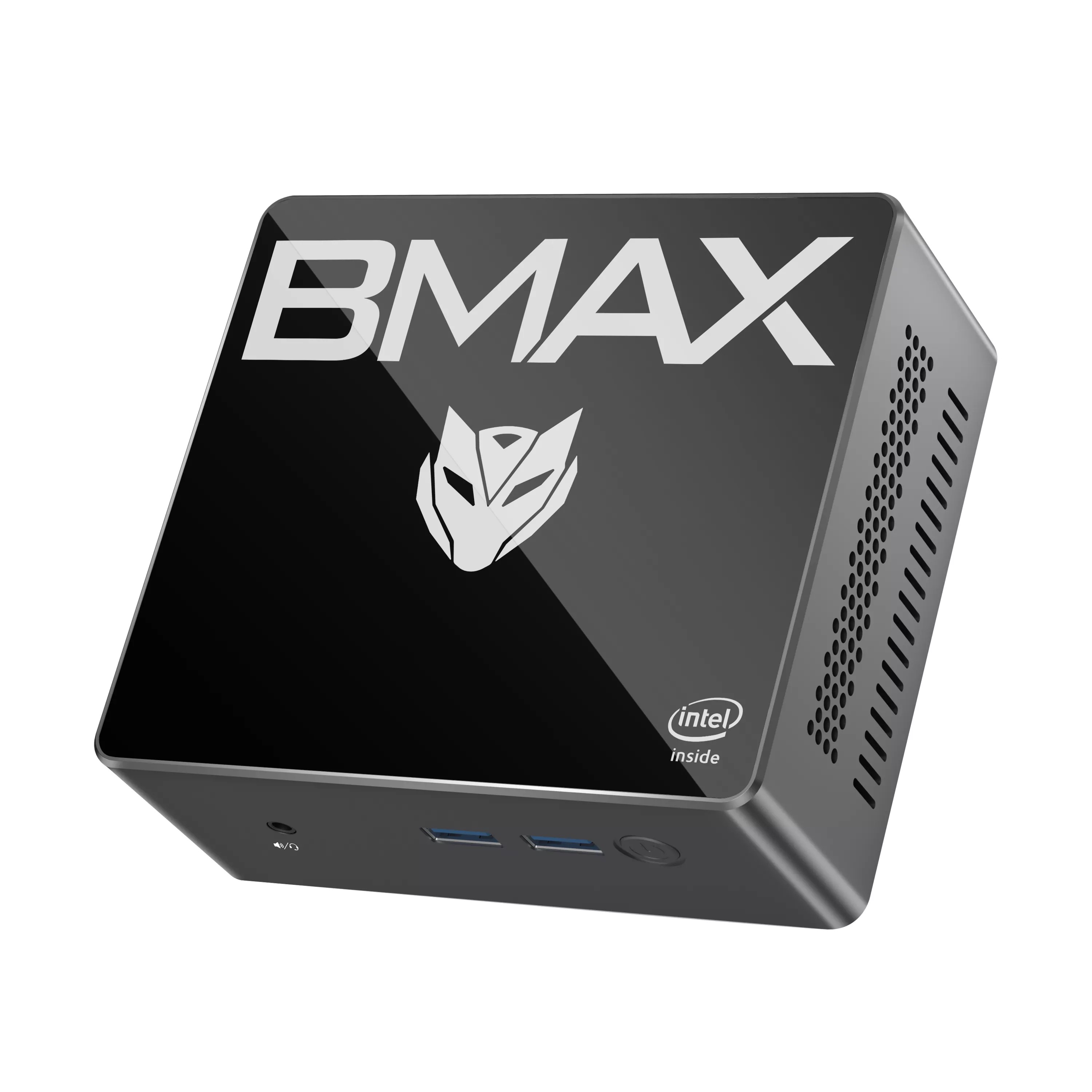

The Bmax MaxMini B3 Plus is a mini PC powered by the Intel Pentium 5405U (8th gen). It features a soldered CPU. Graphics are handled by the integrated Intel Intel UHD 610. Supports up to 8GB of RAM across 2 slots at 2133 MT/s. Storage capacity of up to 3 drives including 1 NVMe. Networking features 1 Ethernet port (up to 1G). Dimensions: 125 × 112 × 47mm (0.66L).
CPU & Performance
CPUPentium 5405U
Generation8th
Threads4
Socket0
GPU
GPUIntel UHD 610
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM8GB
RAM slots2
Max speed2133 MT/s
ECC supportNo
Storage
Max drives3
NVMe slots1
Gen3 x41
SD cardYes
Ports & Connectivity
Max displays3
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions125 × 112 × 47 mm
Volume0.66L
Fan size55mm
Warranty1 yr
Power
