Bmax
MaxMini B7 Pro
CPU i5 1145G7
GPU Iris Xe 80EU
Max RAM 64GB
Drives 2
The Bmax MaxMini B7 Pro is a mini PC powered by the Intel i5 1145G7 (11th gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 125 × 112 × 44mm (0.62L).
CPU & Performance
CPUi5 1145G7
Generation11th
P-Cores4
Threads8
Single-core54
Multi-core14
Socket0
GPU
GPUIris Xe 80EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions125 × 112 × 44 mm
Volume0.62L
Fan size70mm
Warranty1 yr
Power
TDP15W
PSU47W
Discover More
HP
ProDesk 400 G2
$74
HP ProDesk 400 G2 features Intel i3 6100T, 32GB RAM.
CPU Intel i3 6100T
Cores / Threads 2 / 4
Socket LGA1151
GPU Intel Intel HD 530
RAM 32GB / 2slots
Speed 2133 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (1G)
PSU Brick
Size 177×175×34mm
Vol 1.05L

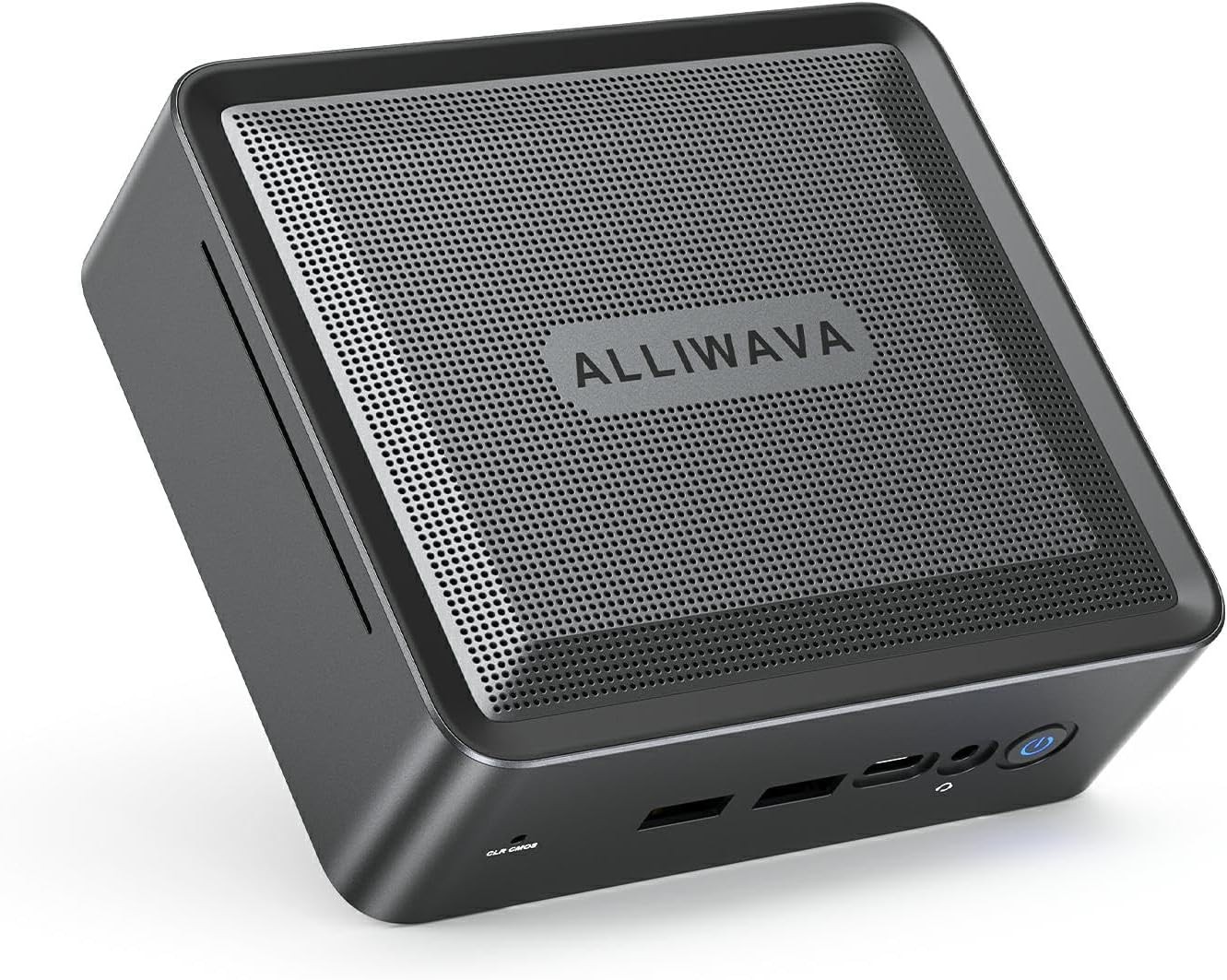

Alliwava
H56
$225
Alliwava H56 features AMD r5 5600H, 64GB RAM, offering compact 0.58L design.
CPU AMD r5 5600H
Cores / Threads 6 / 12
Socket Soldered
GPU AMD Vega 7
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 2 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (1G)
Size 126×112×41mm
Vol 0.58L

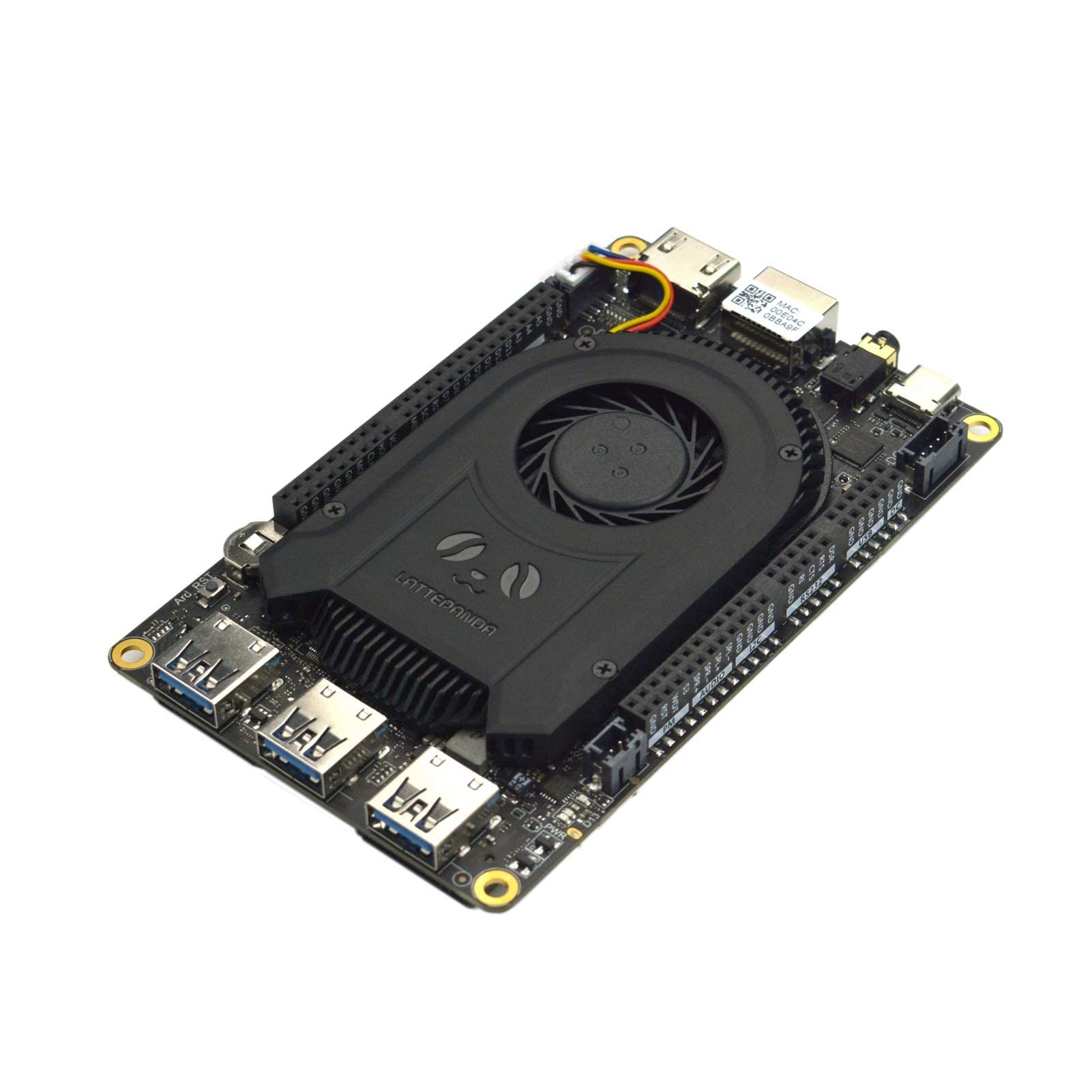

LattePanda
