CHATREEY
TK11-A0
CPU i5 1135G7
GPU Iris Xe 80EU
Max RAM 64GB
Drives 2
Seller Amazon

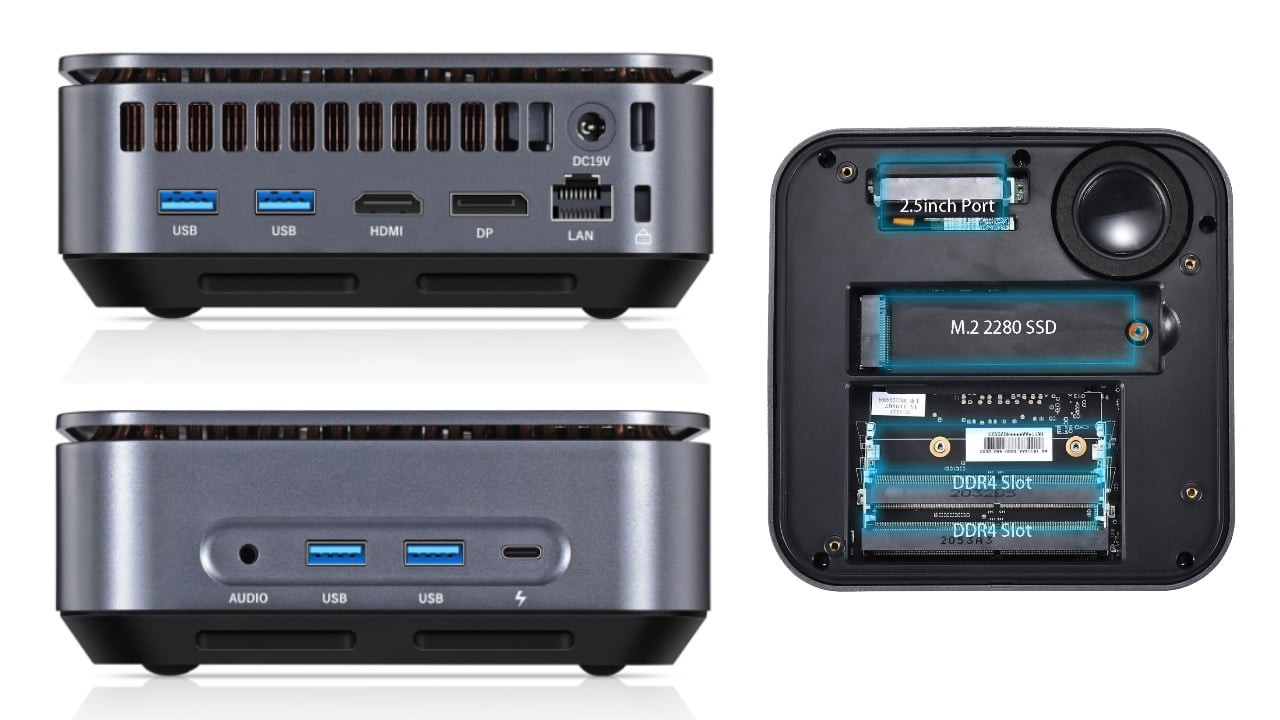

The CHATREEY TK11-A0 is a mini PC powered by the Intel i5 1135G7 (11th gen). It features 4 performance cores and 8 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 1 Ethernet port (up to 1G). Dimensions: 138 × 138 × 54mm (1.03L).
CPU & Performance
CPUi5 1135G7
Generation11th
P-Cores4
Threads8
Single-core53
Multi-core14
Socket0
GPU
GPUIris Xe 80EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen3 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
USB4 40Gbps1
Max displays3
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions138 × 138 × 54 mm
Volume1.03L
Fan size80mm
Warranty1 yr
Power
TDP28W
Notes
Built in speaker, Fingerprint Sensor
Discover More
OneXPlayer
OneX
OneXPlayer OneX features AMD r7 5700U.
CPU AMD r7 5700U
Cores / Threads 8 / 16
Socket Soldered
GPU AMD Vega 8

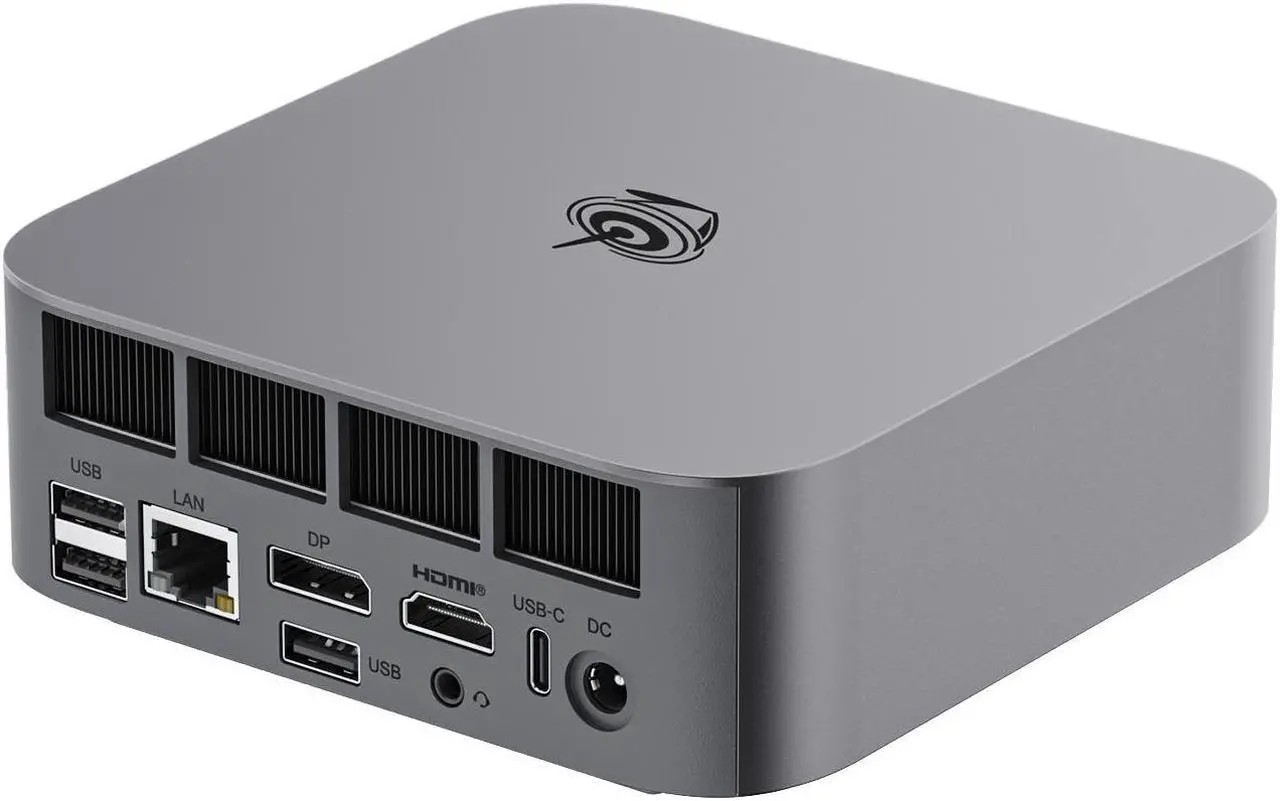

Beelink
SER8 8845HS
$586
Beelink SER8 8845HS features AMD r7 8845HS/7840HS, 128GB RAM, offering USB4 and compact 0.80L design.
CPU AMD r7 8845HS/7840HS
Cores / Threads 8 / 16
Socket Soldered
GPU AMD RDNA3 780M
RAM 128GB / 2slots
Speed 5600 MT/s
Drives 2 (2 NVMe)
Ethernet 1 (2.5G)
PSU GaN
Size 135×135×44mm
Vol 0.8L

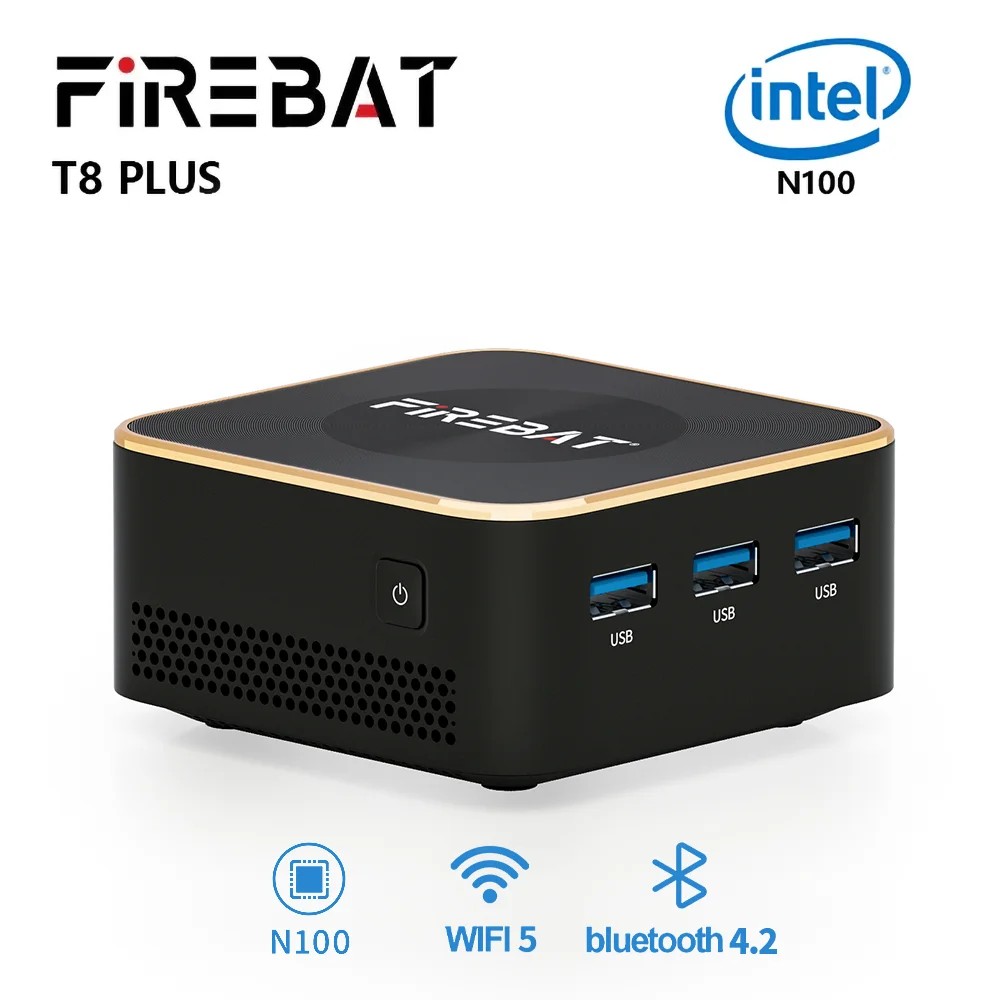

FIREBAT
