CWWK/Topton
1240P 2SFP 4x2.5G
CPU i5 1240P
GPU Iris Xe 80EU
Max RAM 64GB
Drives 4
Seller CWWK/Topton
The CWWK/Topton 1240P 2SFP 4x2.5G is a mini PC powered by the Intel i5 1240P (12th gen). It features 4 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 4800 MT/s. Storage capacity of up to 4 drives including 1 NVMe, 2× 2.5" SATA. Networking features 6 Ethernet ports (up to 10G). Dimensions: 155 × 132 × 60mm (1.23L).
CPU & Performance
CPUi5 1240P
Generation12th
P-Cores4
Threads16
Single-core65
Multi-core25
Socket0
GPU
GPUIris Xe 80EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed4800 MT/s
ECC supportNo
Storage
Max drives4
NVMe slots1
Gen4 x41
2.5" SATA2
SD cardYes
Ports & Connectivity
Max displays4
Network
Max Ethernet6G
10G ports2
2.5G ports4
Physical
Dimensions155 × 132 × 60 mm
Volume1.23L
Fan size80mm
Power
Discover More
AOOSTAR
Announced GEM12 Pro 7840HS
AOOSTAR Announced GEM12 Pro 7840HS features AMD r7 7840HS, 64GB RAM, offering 2× 2.5G Ethernet and OCuLink.
CPU AMD r7 7840HS
Cores / Threads 8 / 16
Socket Soldered
GPU AMD RDNA3 780M
RAM 64GB / 2slots
Speed 5600 MT/s
Drives 2 (2 NVMe)
Ethernet 2 (2.5G)
Size 130×130×60mm
Vol 1.01L

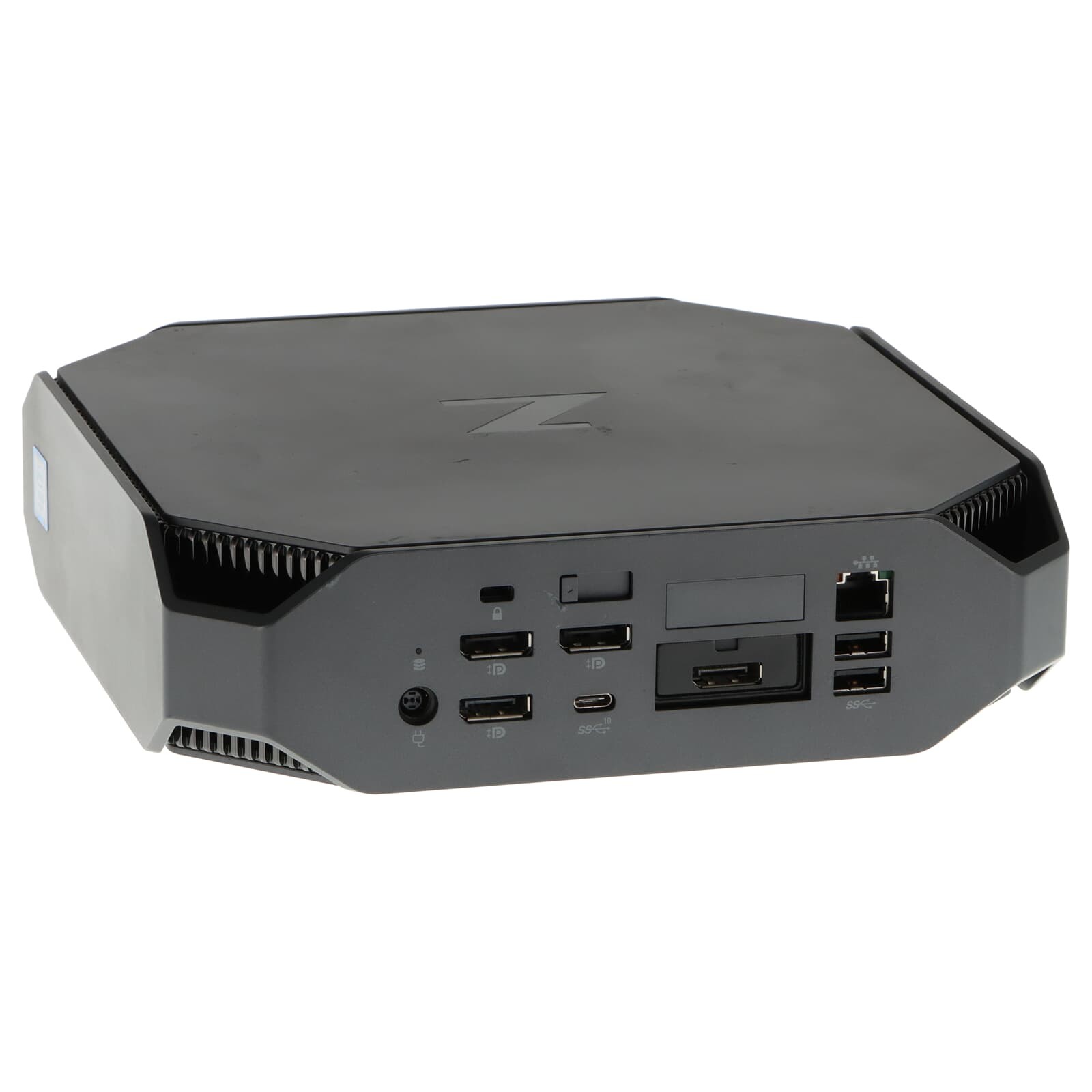

HP
