CWWK/Topton
1240P 8x2.5G
CPU i5 1240P
GPU Iris Xe 80EU
Max RAM 64GB
Drives 4
Seller CWWK/Topton
The CWWK/Topton 1240P 8x2.5G is a mini PC powered by the Intel i5 1240P (12th gen). It features 4 performance cores and 16 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 4800 MT/s. Storage capacity of up to 4 drives including 1 NVMe, 2× 2.5" SATA. Networking features 8 Ethernet ports (up to 2.5G). Dimensions: 155 × 132 × 60mm (1.23L).
CPU & Performance
CPUi5 1240P
Generation12th
P-Cores4
Threads16
Single-core65
Multi-core25
Socket0
GPU
GPUIris Xe 80EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed4800 MT/s
ECC supportNo
Storage
Max drives4
NVMe slots1
Gen4 x41
2.5" SATA2
SD cardYes
Ports & Connectivity
Max displays4
Network
Max Ethernet8G
2.5G ports8
Physical
Dimensions155 × 132 × 60 mm
Volume1.23L
Fan size80mm
Power
Discover More
Intel
Extreme NUC9VXQNX
$1,020
Intel Extreme NUC9VXQNX features Intel Xeon E-2286M, 64GB RAM, offering USB4.
CPU Intel Xeon E-2286M
Cores / Threads 8 / 16
Socket Soldered
GPU Intel Intel UHD P630
RAM 64GB / 2slots
Speed 2666 MT/s
Drives 5 (3 NVMe)
SATA 1×2.5"
Ethernet 2 (1G)
PSU FLEX
Size 238×216×96mm
Vol 4.94L

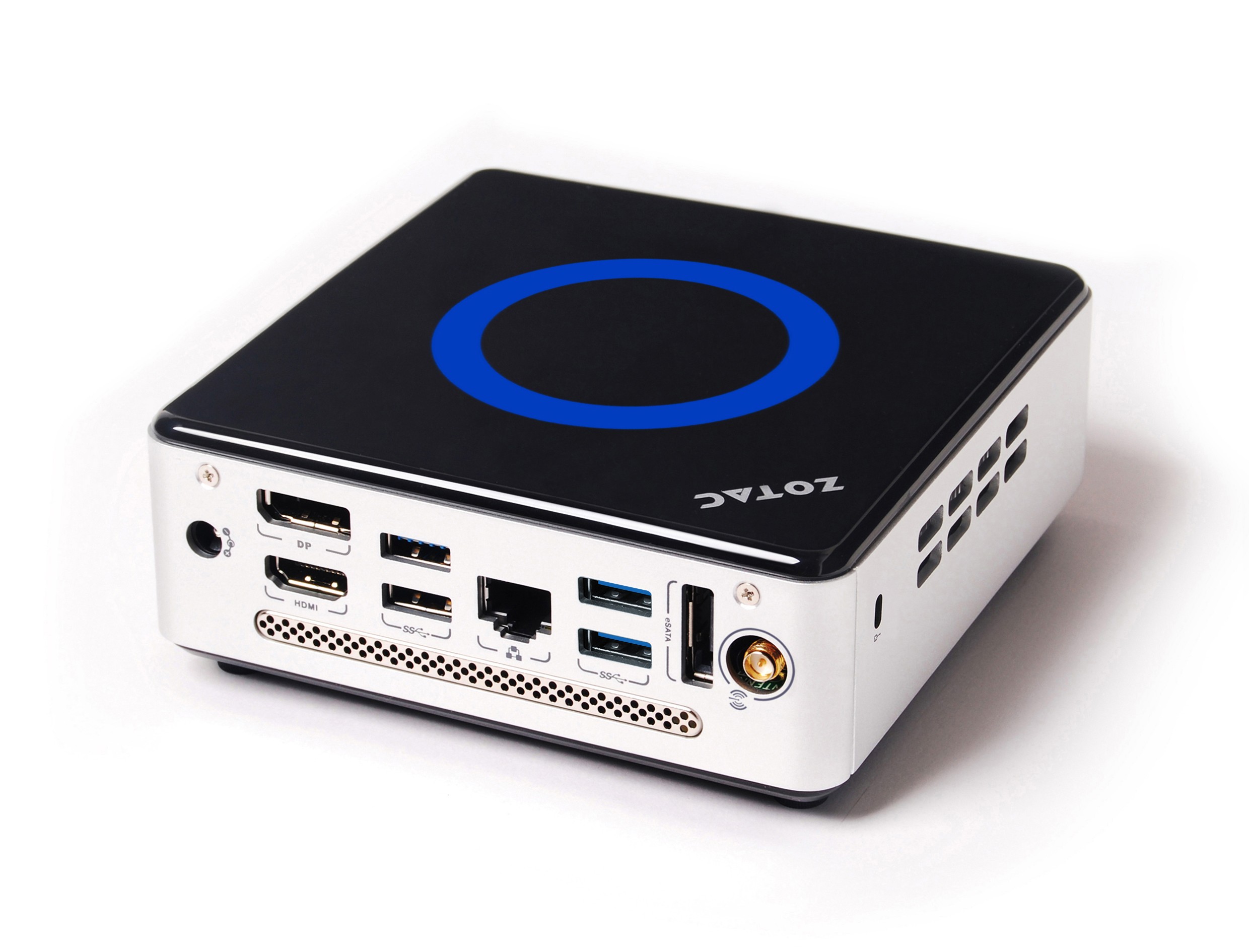

ZOTAC
ZBOX-ID69
ZOTAC ZBOX-ID69.

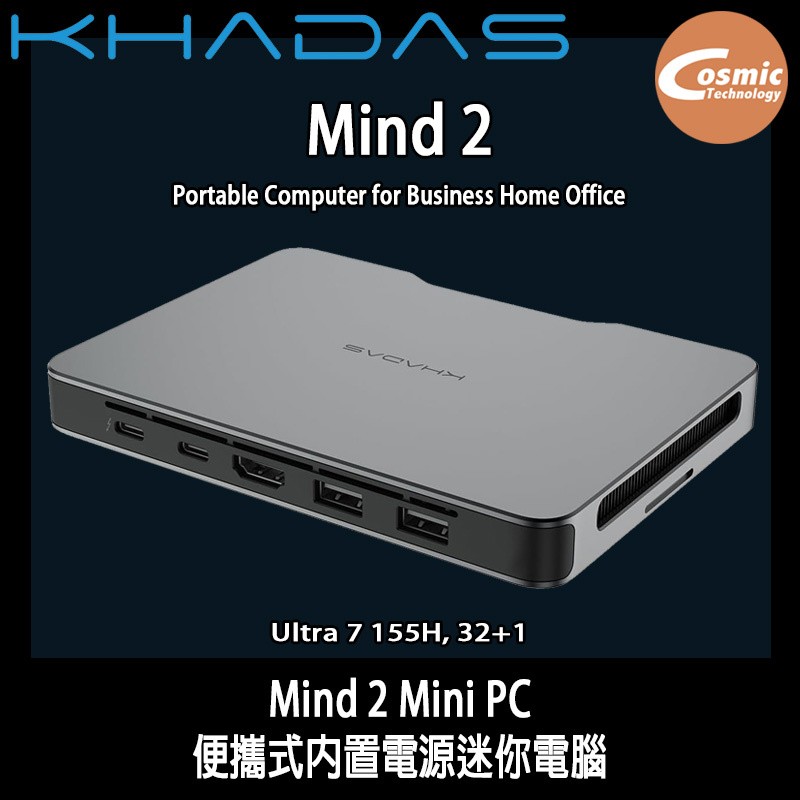

Khadas
