CWWK/Topton
1265U 6x2.5G
CPU i5 1265U
GPU Iris Xe 96EU
Max RAM 64GB
Drives 4
From $560
Seller Amazon

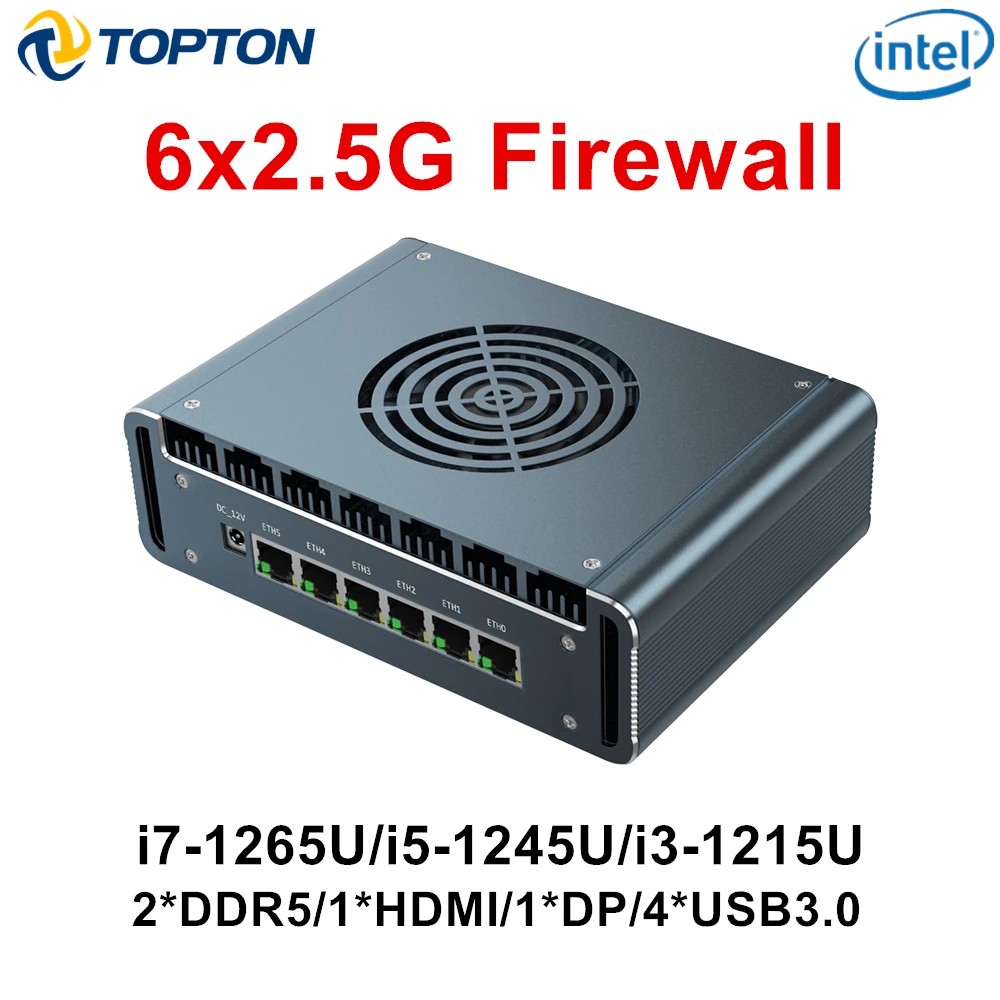

The CWWK/Topton 1265U 6x2.5G is a mini PC powered by the Intel i5 1265U (12th gen). It features 4 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 96EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 4 drives including 1 NVMe, 2× 2.5" SATA. Networking features 6 Ethernet ports (up to 2.5G). Dimensions: 146 × 145 × 54mm (1.14L).
CPU & Performance
CPUi5 1265U
Generation12th
P-Cores4
Threads12
Single-core63
Multi-core20
Socket0
GPU
GPUIris Xe 96EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives4
NVMe slots1
Gen3 x41
2.5" SATA2
SD cardYes
Ports & Connectivity
Max displays3
Network
Max Ethernet6G
2.5G ports6
vProN
Physical
Dimensions146 × 145 × 54 mm
Volume1.14L
Power
TDP15W
PSU65W
Notes
July 11: Claims HDMI 2.1 but half the bandwidth for 4k 60hz instead of 4k 120hz
