CWWK/Topton
8505 6x2.5G
CPU Pentium 8505U
GPU Iris Xe 48EU
Max RAM 64GB
Drives 4
Seller CWWK/Topton

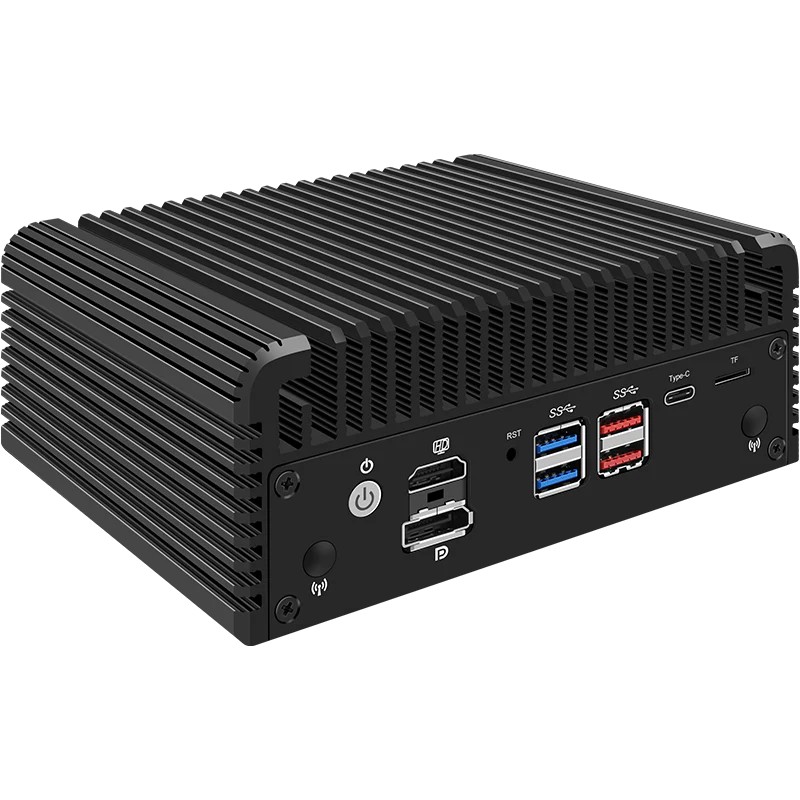

The CWWK/Topton 8505 6x2.5G is a mini PC powered by the Intel Pentium 8505U (12th gen). It features 1 performance cores and 6 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 48EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 4 drives including 1 NVMe, 2× 2.5" SATA. Networking features 6 Ethernet ports (up to 2.5G). Dimensions: 145 × 131 × 64mm (1.22L).
CPU & Performance
CPUPentium 8505U
Generation12th
P-Cores1
Threads6
Socket0
GPU
GPUIris Xe 48EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives4
NVMe slots1
Gen3 x41
2.5" SATA2
SD cardYes
Ports & Connectivity
Max displays3
Network
Max Ethernet6G
2.5G ports6
Physical
Dimensions145 × 131 × 64 mm
Volume1.22L
Fan size70mm
Power
Discover More
Apple
Mac mini M1 8GB 250GB
$465
Apple Mac mini M1 8GB 250GB features Apple ARM M1 8 Core, 8GB RAM, offering USB4.
CPU Apple ARM M1 8 Core
Cores / Threads 4 / 8
Socket Soldered
GPU Apple M1 8-core
RAM 8GB
Speed 2133 MT/s
Ethernet 1 (1G)
PSU Custom
Size 196×196×36mm
Vol 1.38L
Microsoft

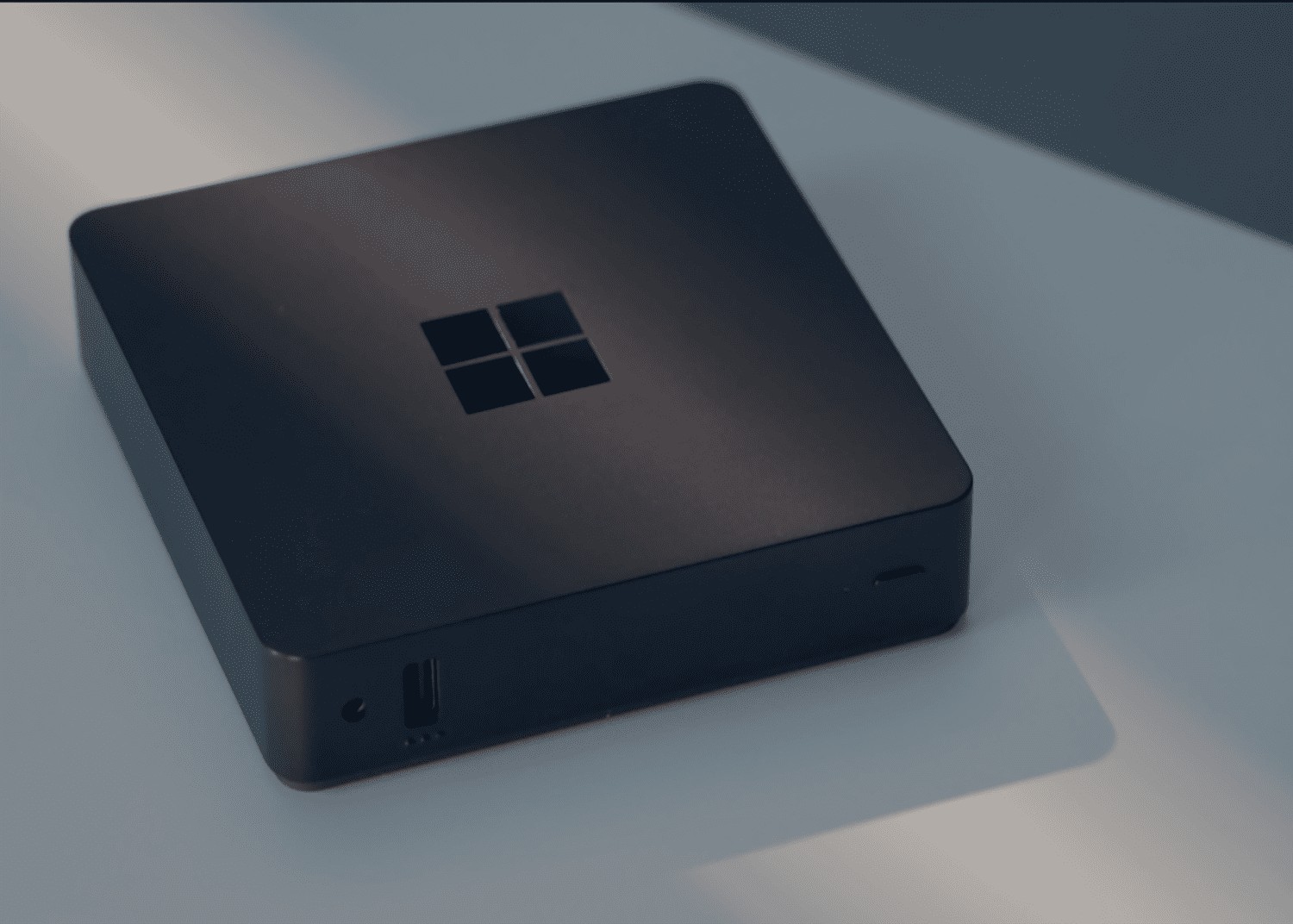

Windows 365 Link
