Dell
Optiplex 3040 Micro
CPU i5 6500T
GPU Intel HD 530
Max RAM 32GB
Drives 1
From $55
Seller Ebay
The Dell Optiplex 3040 Micro is a mini PC powered by the Intel i5 6500T (6th gen). It features 4 performance cores and 4 threads and a LGA1151 socket. Graphics are handled by the integrated Intel Intel HD 530. Supports up to 32GB of RAM across 2 slots at 2133 MT/s. Storage capacity of up to 1 drive including 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 182 × 179 × 36mm (1.17L). Uses a Brick PSU, 35W TDP.
CPU & Performance
CPUi5 6500T
Generation6th
P-Cores4
Threads4
Single-core35
Multi-core7
SocketLGA1151
GPU
GPUIntel HD 530
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed2133 MT/s
ECC supportNo
Storage
Max drives1
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions182 × 179 × 36 mm
Volume1.17L
Fan size70mm
Warranty1 yr
Power
TDP35W
PSU typeBrick
Discover More
Gigabyte
GB-BRr5HS-7530
Gigabyte GB-BRr5HS-7530 features AMD r5 7530U/5625U, 64GB RAM, offering compact 0.74L design.
CPU AMD r5 7530U/5625U
Cores / Threads 6 / 12
Socket Soldered
GPU AMD Vega 7
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 3 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (2.5G)
PSU Brick
Size 124×120×49.7mm
Vol 0.74L

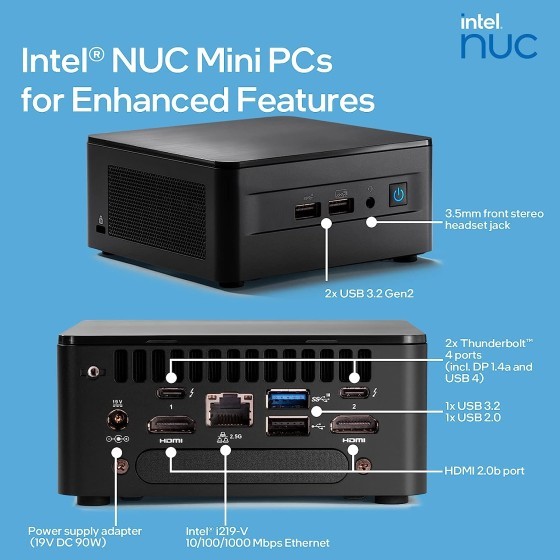

Simply NUC
NUC Pro NUC12WSHi7
$850
Simply NUC NUC Pro NUC12WSHi7 features Intel i7 1260P, 64GB RAM, offering USB4 and compact 0.71L design.
CPU Intel i7 1260P
Cores / Threads 4 / 16
Socket Soldered
GPU Intel Iris Xe 96EU
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 3 (1 NVMe)
SATA 1×2.5"
Ethernet 1 (2.5G)
PSU Brick
Size 117×112×54mm
Vol 0.71L

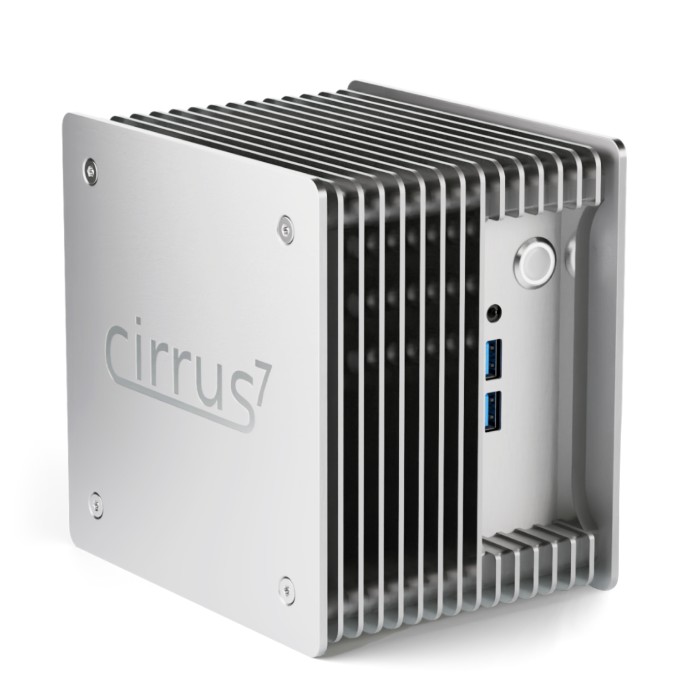

Cirrus 7
