Dell
Optiplex 9020 Micro
CPU i5 4570T
GPU Intel HD 4600
Max RAM 32GB
Drives 1
From $90
Seller Amazon

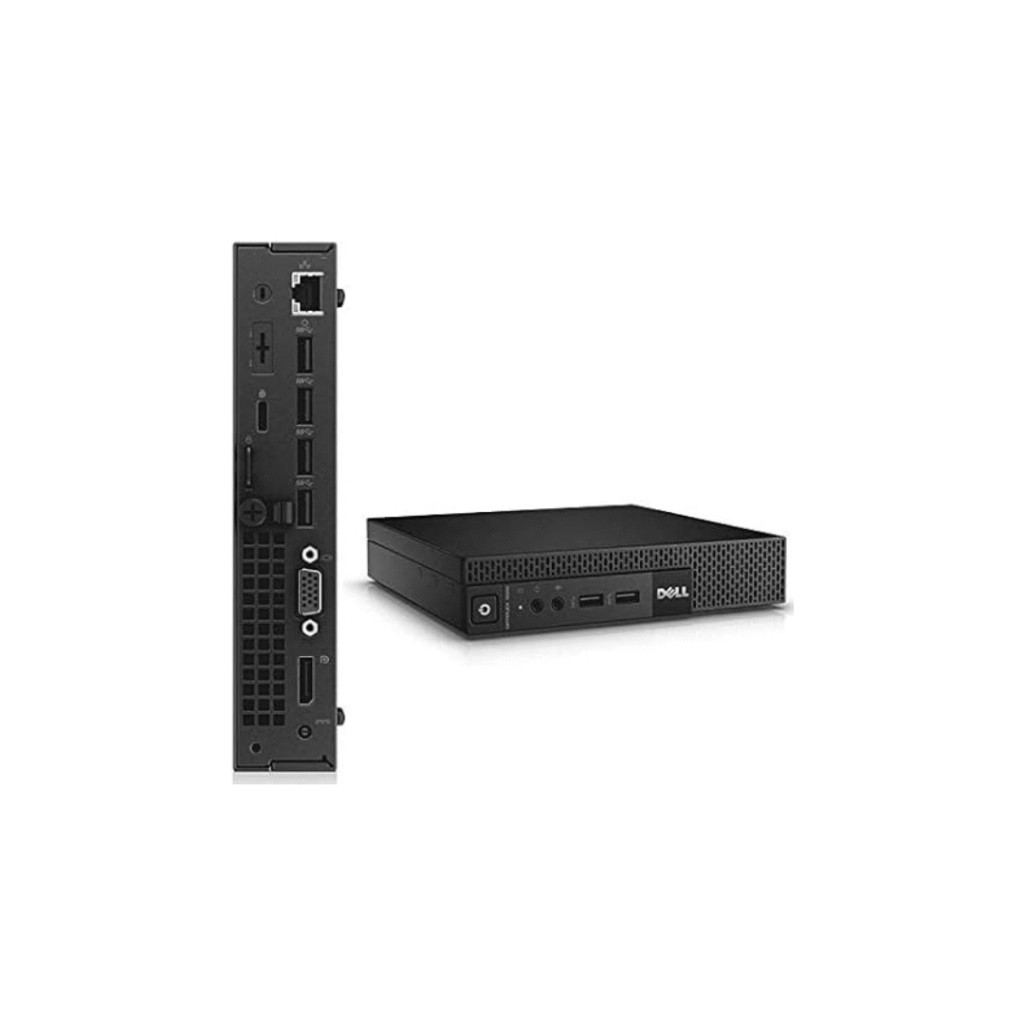

The Dell Optiplex 9020 Micro is a mini PC powered by the Intel i5 4570T (4th gen). It features 2 performance cores and 4 threads. Graphics are handled by the integrated Intel Intel HD 4600. Supports up to 32GB of RAM across 2 slots at 1600 MT/s. Storage capacity of up to 1 drive including 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 182 × 179 × 36mm (1.17L). Uses a Brick PSU, 35W TDP.
CPU & Performance
CPUi5 4570T
Generation4th
P-Cores2
Threads4
Single-core38
Multi-core5
GPU
GPUIntel HD 4600
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM32GB
RAM slots2
Max speed1600 MT/s
ECC supportNo
Storage
Max drives1
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions182 × 179 × 36 mm
Volume1.17L
Fan size70mm
Warranty1 yr
Power
TDP35W
PSU typeBrick
Discover More
AOOSTAR
GEM12 Max 8745HS 7900XTX
$1,490
AOOSTAR GEM12 Max 8745HS 7900XTX features AMD r7 8745HS/7840HS, 64GB RAM, offering 2× 2.5G Ethernet and OCuLink.
CPU AMD r7 8745HS/7840HS
Cores / Threads 8 / 16
Socket Soldered
GPU AMD 7900XTX
RAM 64GB / 2slots
Speed 5600 MT/s
Drives 2 (2 NVMe)
Ethernet 2 (2.5G)
Size 260×150×175mm
Vol 6.83L
Gigabyte
GB-BEr3-5300
$530
Gigabyte GB-BEr3-5300 features AMD r3 5300U, 64GB RAM, offering compact 0.89L design.
CPU AMD r3 5300U
Cores / Threads 4 / 8
Socket Soldered
GPU AMD Vega 6
RAM 64GB / 2slots
Speed 3200 MT/s
Drives 1 (1 NVMe)
Ethernet 1 (2.5G)
PSU Brick
Size 139×134×48mm
Vol 0.89L
Asus

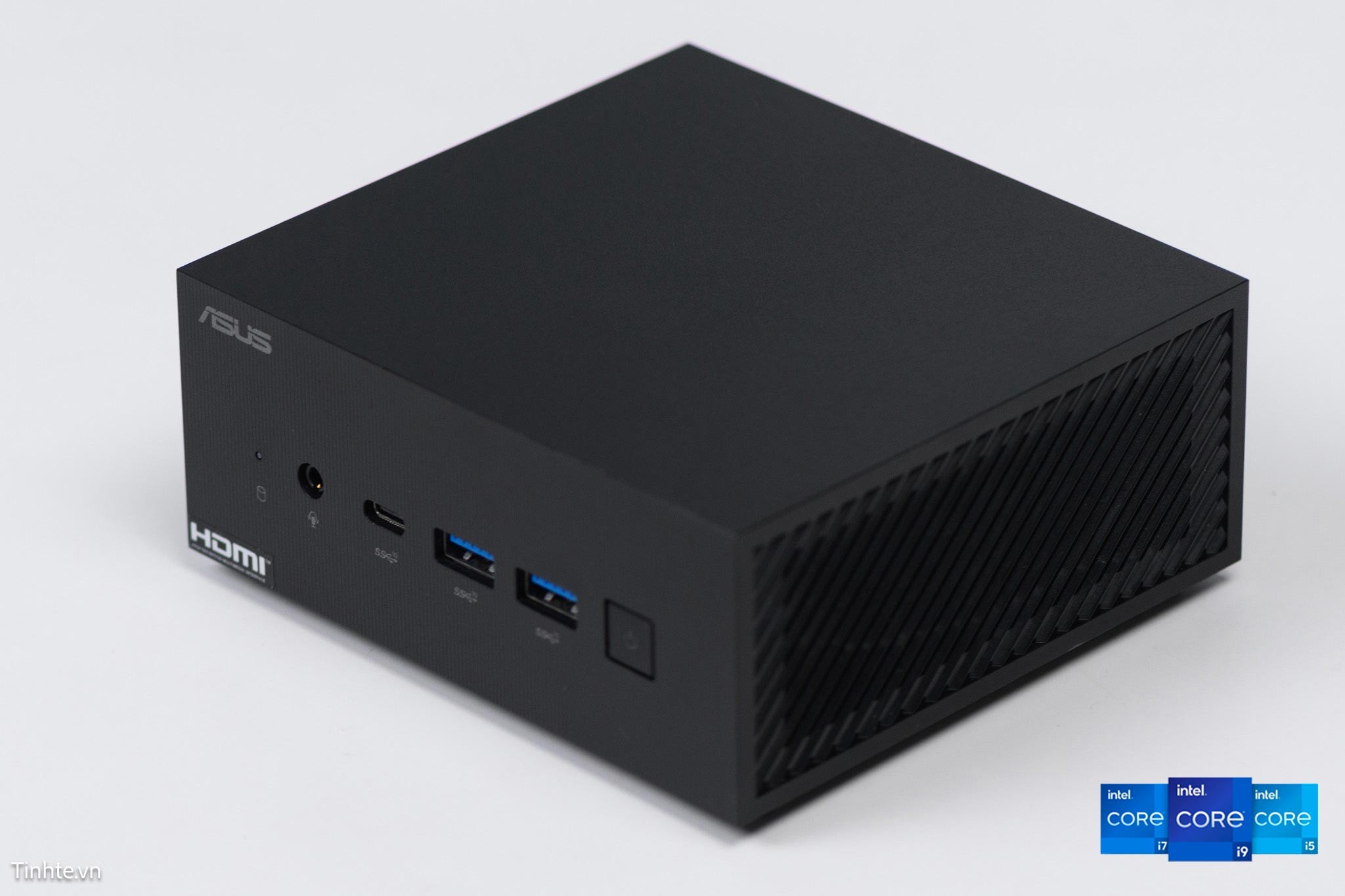

Announced PN64 13800H
