Dell
Optiplex Micro Form Factor
CPU i5 14500T
GPU Intel UHD 770
Max RAM 64GB
Drives 2
From $641
Seller Dell

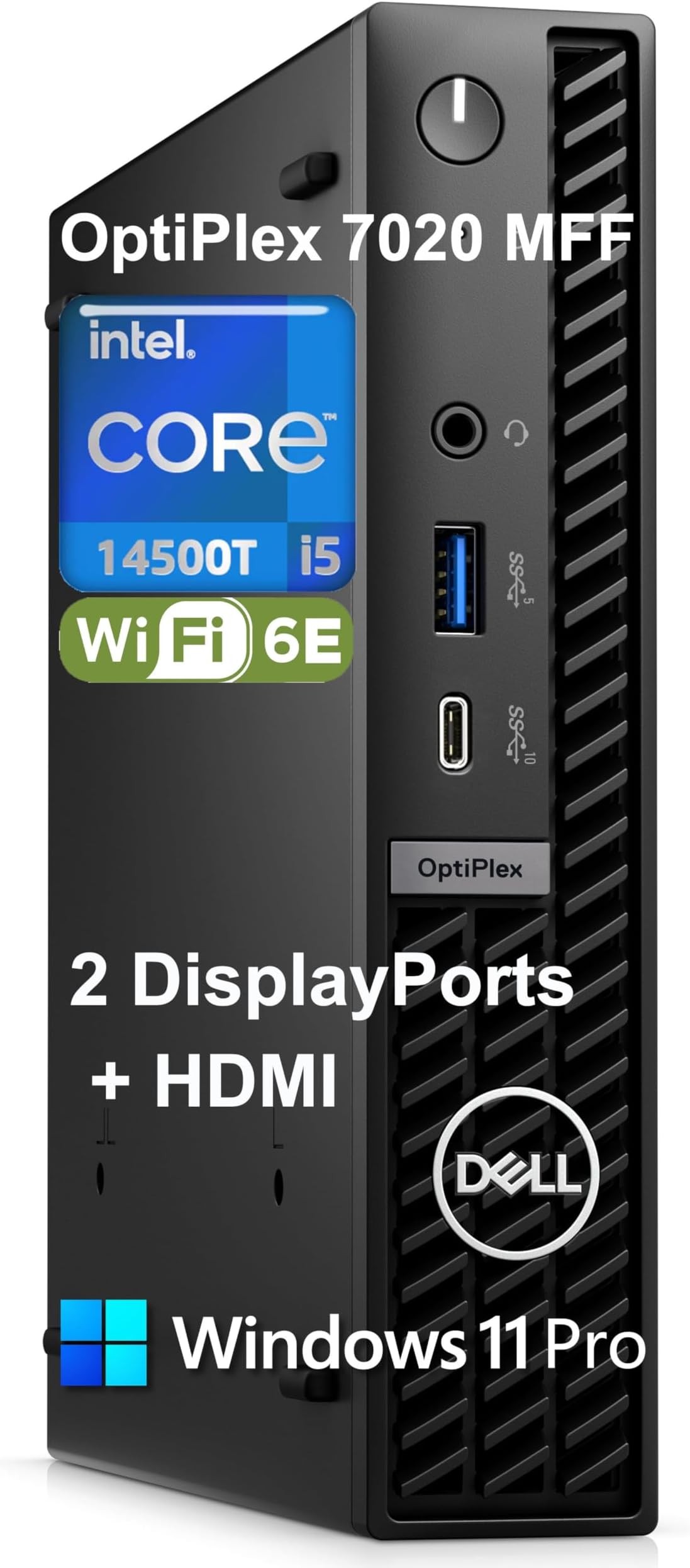

The Dell Optiplex Micro Form Factor is a mini PC powered by the Intel i5 14500T (14th gen). It features 6 performance cores and 20 threads and a LGA1700 socket. Graphics are handled by the integrated Intel Intel UHD 770. Supports up to 64GB of RAM across 2 slots at 4800 MT/s. Storage capacity of up to 2 drives including 2 NVMe. Networking features 1 Ethernet port (up to 1G). Dimensions: 182 × 179 × 36mm (1.17L). Uses a Brick PSU (90W).
CPU & Performance
CPUi5 14500T
Generation14th
P-Cores6
Threads20
Single-core76
Multi-core33
SocketLGA1700
GPU
GPUIntel UHD 770
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed4800 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots2
Gen4 x42
SD cardNo
Ports & Connectivity
Max displays3
Network
Max Ethernet1G
1G ports1
vProY
Physical
Dimensions182 × 179 × 36 mm
Volume1.17L
Fan size80mm
Warranty1 yr
Power
PSU typeBrick
PSU90W
