ECS Elitegroup
LIVA Z3E N5100
CPU Celeron N5100
GPU Jasper Lake 24EU
Max RAM 16GB
Drives 2

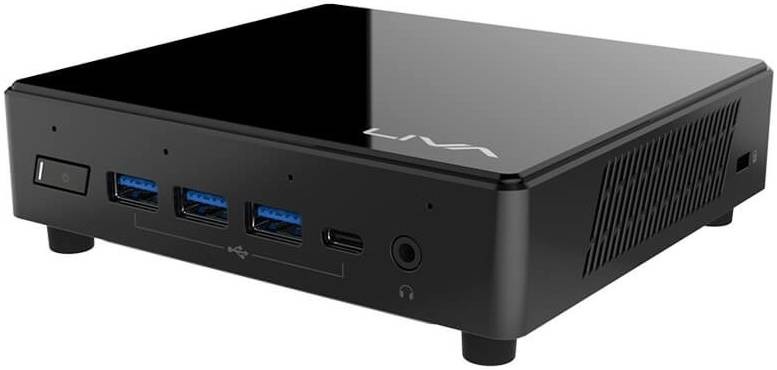

The ECS Elitegroup LIVA Z3E N5100 is a mini PC powered by the Intel Celeron N5100 (11th gen). It features a soldered CPU. Graphics are handled by the integrated Intel Jasper Lake 24EU. Supports up to 16GB of RAM across 2 slots at 2933 MT/s. Storage capacity of up to 2 drives including 1× 2.5" SATA. Networking features 1 Ethernet port (up to 1G). Dimensions: 128 × 117 × 53mm (0.79L).
CPU & Performance
CPUCeleron N5100
Generation11th
Threads4
Single-core27
Multi-core5
Socket0
GPU
GPUJasper Lake 24EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM16GB
RAM slots2
Max speed2933 MT/s
ECC supportNo
Storage
Max drives2
2.5" SATA1
SD cardNo
Ports & Connectivity
Max displays2
Network
Max Ethernet1G
1G ports1
vProN
Physical
Dimensions128 × 117 × 53 mm
Volume0.79L
Power
PSU65W
