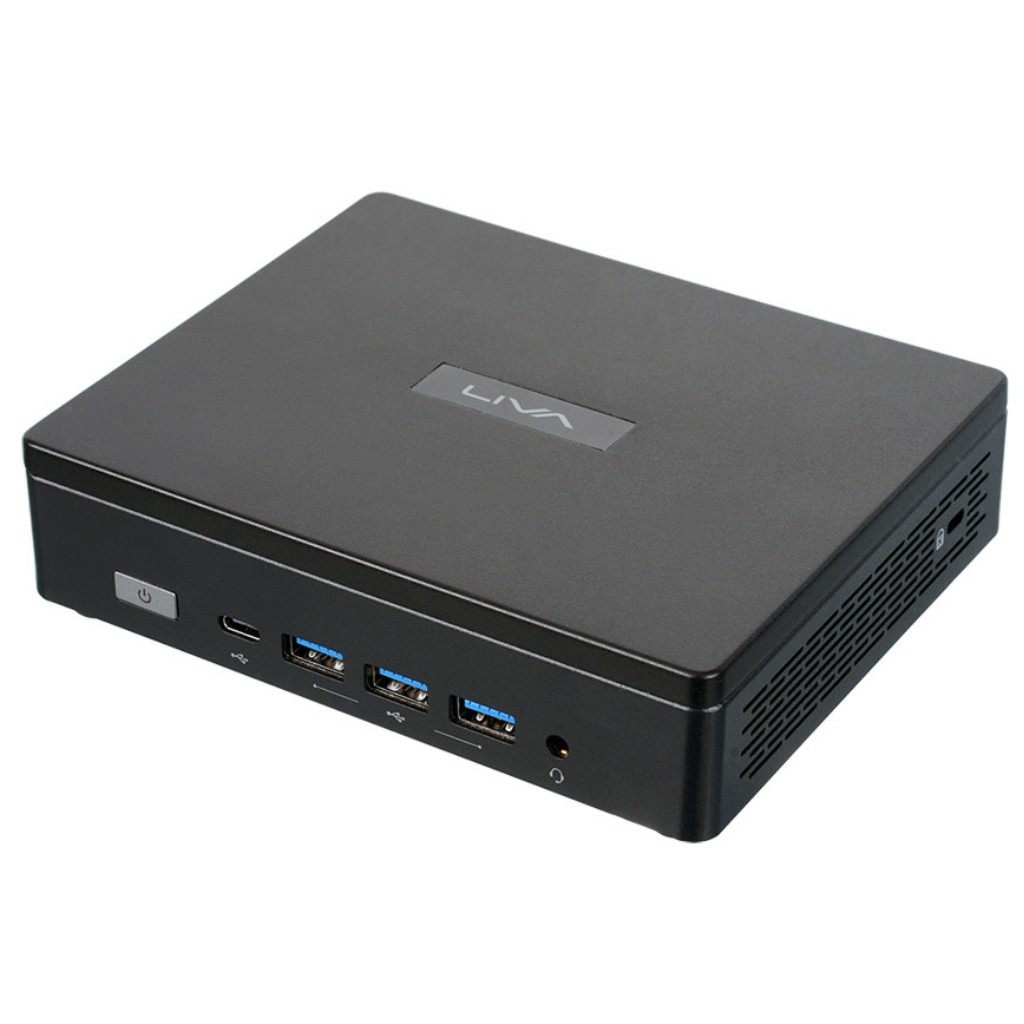

ECS Elitegroup
LIVA Z5E Plus 1335U
CPU i5 1335U
GPU Iris Xe 80EU
Max RAM 64GB
Drives 2
The ECS Elitegroup LIVA Z5E Plus 1335U is a mini PC powered by the Intel i5 1335U (13th gen). It features 2 performance cores and 12 threads and a soldered CPU. Graphics are handled by the integrated Intel Iris Xe 80EU. Supports up to 64GB of RAM across 2 slots at 3200 MT/s. Storage capacity of up to 2 drives including 1 NVMe, 1× 2.5" SATA. Connectivity includes USB4 40Gbps. Networking features 2 Ethernet ports (up to 2.5G). Dimensions: 148 × 120 × 54mm (0.96L).
CPU & Performance
CPUi5 1335U
Generation13th
P-Cores2
Threads12
Single-core67
Multi-core22
Socket0
GPU
GPUIris Xe 80EU
Discrete GPUNo
Integrated GPUYes
eGPU supportNo
RAM
Max RAM64GB
RAM slots2
Max speed3200 MT/s
ECC supportNo
Storage
Max drives2
NVMe slots1
Gen4 x41
2.5" SATA1
SD cardNo
Ports & Connectivity
USB4 40Gbps1
Max displays4
Network
Max Ethernet2G
2.5G ports2
Physical
Dimensions148 × 120 × 54 mm
Volume0.96L
Power
PSU90W
Discover More

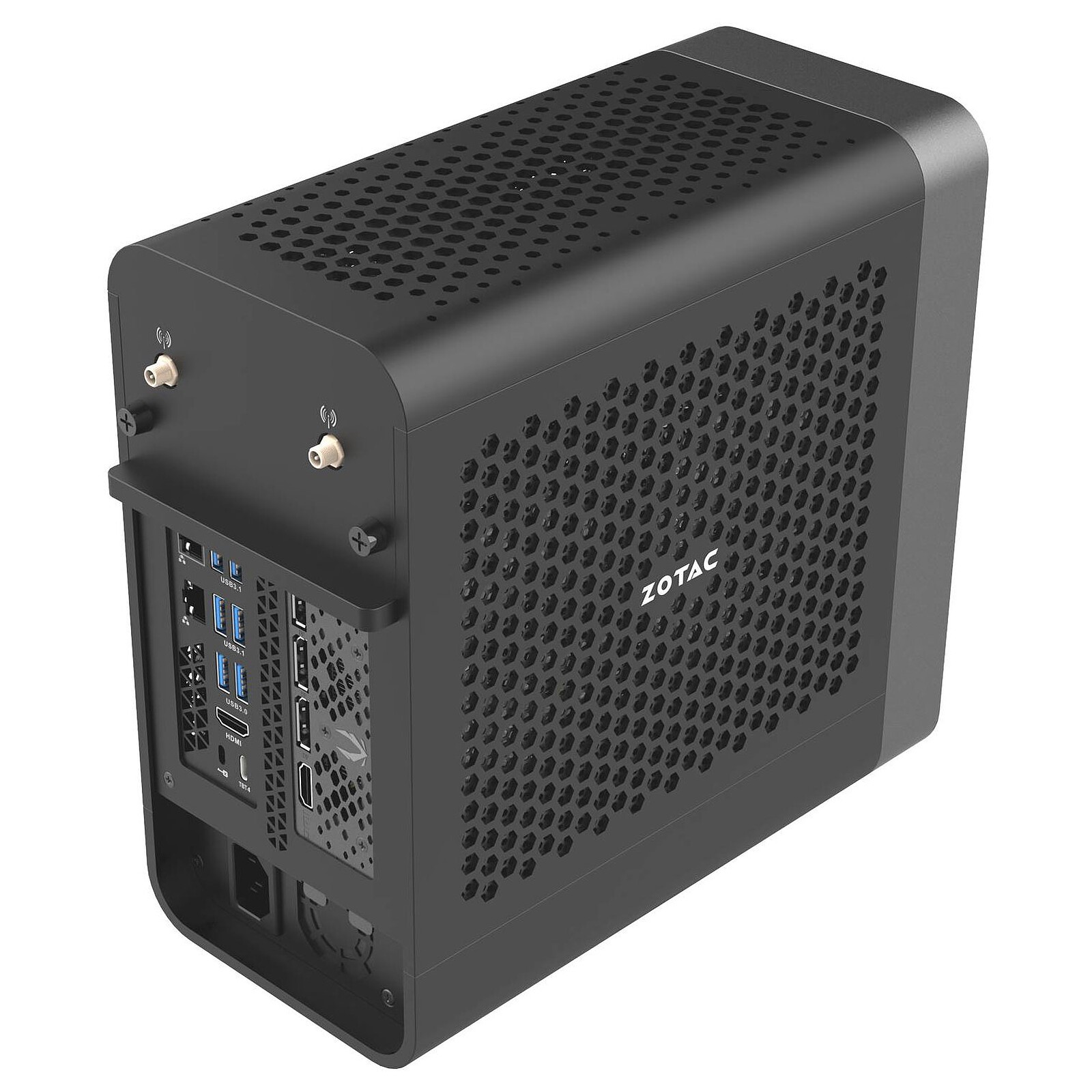

ZOTAC
ZBOX-ERP74070C Magnus One
$3,416
ZOTAC ZBOX-ERP74070C Magnus One features Intel i7 13700 with NVIDIA 4070 GDDR6X discrete GPU, offering 2× 2.5G Ethernet and USB4.
CPU Intel i7 13700
Cores / Threads 8 / 24
Socket LGA1700
GPU NVIDIA 4070 GDDR6X
RAM 64GB / 2slots
Speed 5600 MT/s
Drives 4 (2 NVMe)
SATA 1×2.5"
Ethernet 2 (2.5G)
PSU SFX
Size 266×249×126mm
Vol 8.35L
ECS Elitegroup
LIVA Z2
ECS Elitegroup LIVA Z2 features Intel Celeron N4120, 8GB RAM, offering compact 0.87L design.
CPU Intel Celeron N4120
Cores / Threads – / 4
Socket Soldered
GPU Intel Intel UHD 600
RAM 8GB / 2slots
Drives 1
SATA 1×2.5"
Ethernet 1 (1G)
Size 132×118×56mm
Vol 0.87L

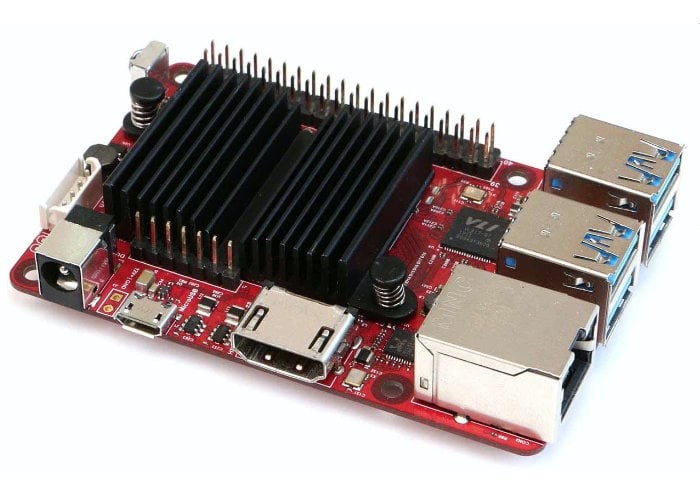

Odroid
